Name: Milesight LoRaWAN AS923 IoT 6 Button Smart Scene Panel
Brand: Milesight IoT
SKU: WS136-915M
Price: 159.85 NZD
Availability: InStock

Milesight LoRaWAN AS923 IoT 6 Button Smart Scene Panel

WS136-915M

$159.85

Tax included.

In stock, ready to be shipped

Select quantity

Description

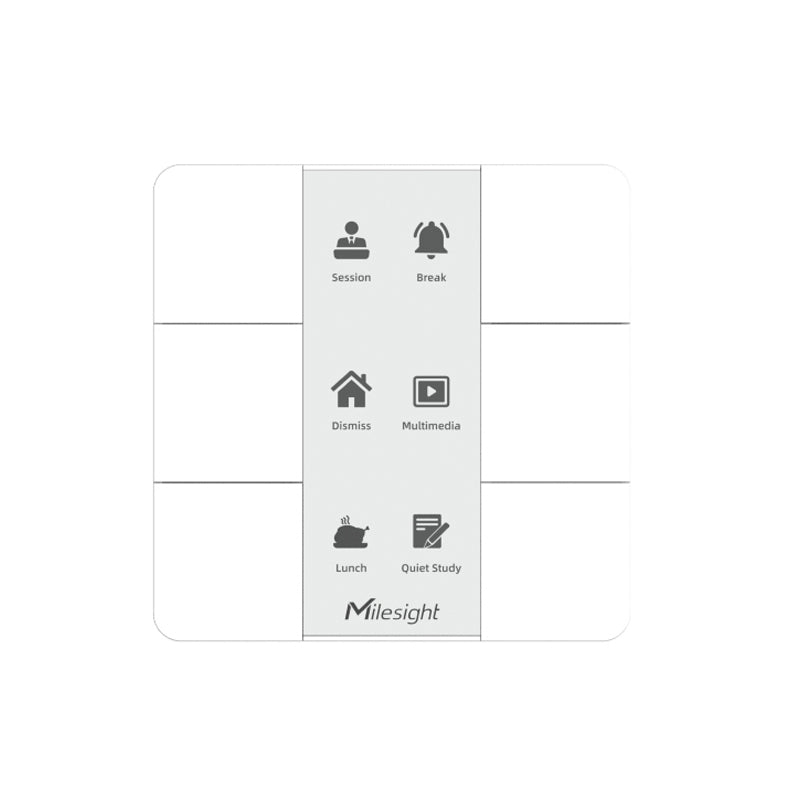

Milesight LoRaWAN AS923 IoT 6 Button Smart Scene Panel

The Milesight WS136 LoRaWAN AU915/AS923 IoT Smart Scene Panel gives a multi button control panel that can activate different pre-defined scenes with one-press. Without any additional cabling the WS136 can be installed anywhere and used to control devices via LoRaWAN® or the Milesight LoRa D2D communication protocol. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution the WS136 can be linked to control other Milesight devices without any development. The WS136 can be widely used for wireless control in smart offices, smart homes, etc

. .

Features

Up to 6 scenes settable, each scene can consist of multiple devices
Equipped with NFC for one-touch configuration, supports card emulation mode
supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control
Compliant with standard LoRaWAN® gateways and network servers
Compliant with Milesight IoT Cloud
Easy installation

Details
Product Code	WS136-915M
Technology	LoRaWAN®, LoRa D2D
Frequency	AU915/AS923
Tx Power	16 dBm
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Scene Button	6 Buttons
Configuration	NFC
Advanced Features	LoRa D2D Controller
Power Supply	2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life	Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection	IP30
Color & Material	White, PC + ABS (Flame-retardant)
Operating Temperature	-10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity	? 90% (Non-condensing)
Dimensions	86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation	Desktop, 3M Tape Mounting

Details
Contains	Sensor, screw pack, mounting sticker, warranty card
