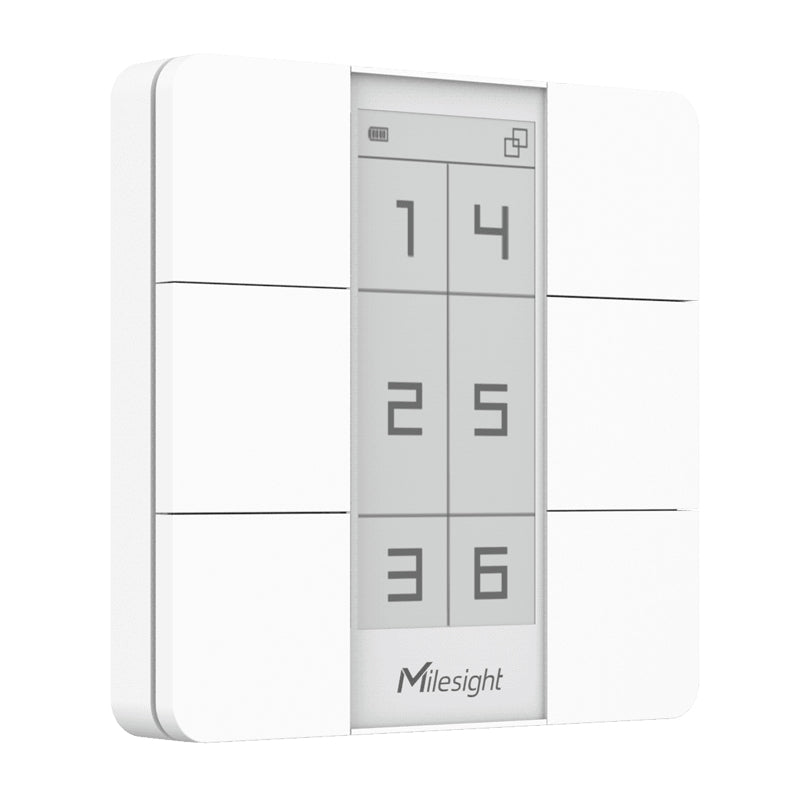

Name: Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display
Brand: Milesight IoT
SKU: WS156-915M
Price: 255.30 NZD
Availability: InStock

Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display

WS156-915M

$255.30

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight LoRaWAN AS923 6 Button Smart Scene Panel With E-Ink Display

Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display. The Milesight WS156 LoRaWAN IoT Smart Scene Panel gives a multi button control panel that can activate different pre-defined scenes with one-press. Without any additional cabling the WS156 can be installed anywhere and used to control devices via LoRaWAN® or the Milesight LoRa D2D communication protocol. Besides, it is equipped with a user-defined E-ink screen to suit different scenes. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution the WS156 can be linked to control other Milesight devices without any development. The WS156 can be widely used for wireless control in smart offices, smart homes, etc.

. .

Features

Equipped with a programmable E-ink screen for flexible display
Up to 6 scenes settable, each scene can consist of multiple devices
Equipped with NFC for one-touch configuration, supports card emulation mode
supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control
Compliant with standard LoRaWAN® gateways and network servers
Compliant with Milesight IoT Cloud
Easy installation

Details
SKU	WS156-915M
Technology	LoRaWAN®, LoRa D2D
Frequency	AU915/AS923
Tx Power	16 dBm
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Interface Display	2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels
Scene Button	6 Buttons
Configuration	NFC
Advanced Features	LoRa D2D Controller, Screen Display Customization
Power Supply	2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life	Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection	IP30
Color & Material	White, PC + ABS (Flame-retardant)
Operating Temperature	-10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity	? 90% (Non-condensing)
Dimensions	86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation	Desktop, 3M Tape Mounting

Details
Contains	Sensor, screw pack, mounting sticker, warranty card

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display

Description

Milesight LoRaWAN AS923 6 Button Smart Scene Panel With E-Ink Display

Features

Equipped with a programmable E-ink screen for flexible display
Up to 6 scenes settable, each scene can consist of multiple devices
Equipped with NFC for one-touch configuration, supports card emulation mode
supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control
Compliant with standard LoRaWAN® gateways and network servers
Compliant with Milesight IoT Cloud
Easy installation

Details
SKU	WS156-915M
Technology	LoRaWAN®, LoRa D2D
Frequency	AU915/AS923
Tx Power	16 dBm
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Interface Display	2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels
Scene Button	6 Buttons
Configuration	NFC
Advanced Features	LoRa D2D Controller, Screen Display Customization
Power Supply	2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life	Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection	IP30
Color & Material	White, PC + ABS (Flame-retardant)
Operating Temperature	-10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity	? 90% (Non-condensing)
Dimensions	86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation	Desktop, 3M Tape Mounting
