External Antennas for 4G and 5G Routers: Bands, Connectors and Cable Loss

Confirm the problem before adding an antenna

An external antenna can be relevant when a supported mobile router has a reception problem and a better antenna position may help. It is not a guaranteed speed upgrade. Network congestion, an unsuitable plan or a local Wi-Fi problem needs a different diagnosis.

Start by checking service approval, coverage and the router’s placement. Record available signal measurements and performance at representative times. If a wired device performs poorly even beside the router, the upstream mobile connection deserves investigation. If only a distant room performs poorly, examine local Wi-Fi coverage too.

An antenna purchase should follow evidence. Identify the bands being used, the router’s supported external-antenna functions and a practical installation position. Buying the highest gain number before these checks can leave you with incompatible equipment or little useful improvement.

Router model and hardware version govern support

Read the manufacturer’s documentation for the exact router version. External ports may support particular mobile bands or replace only part of an internal antenna arrangement. They should not be assumed to affect every band or every radio in the device.

TP-Link’s external-antenna guidance includes Archer NX200 V1 and V2 and describes connecting both external mobile antennas and enabling the relevant setting. Its guidance also notes that performance with third-party antennas is not guaranteed. Use the documented process and verify the unit supplied to you.

The mobile antenna ports are different from Wi-Fi antennas. Adding an antenna for the cellular connection does not directly extend the router’s household Wi-Fi range. Keep the upstream reception task separate from the distribution of that connection around the house.

Match the frequency bands, not just “4G/5G”

An antenna described broadly as 4G or 5G still has a specified frequency range. Check that it covers the relevant bands for the router and service. The network generation label alone is not enough to establish a suitable match.

Go Wireless NZ’s ANT-252 documentation lists frequency ranges of 698–960 MHz, 1710–2700 MHz and 3300–3800 MHz. Those are separate ranges, not continuous coverage of every frequency between 698 and 3800 MHz. Compare the ranges with the actual bands involved in your intended setup.

Do not assume support for every network band simply because an antenna includes a familiar 3.5 GHz range. Router hardware, antenna ports and provider deployment all matter. If you cannot confirm the band match, request help with the exact equipment before ordering.

Connector type and gender must match

Connectors need their precise names, gender and thread arrangement checked. A familiar-looking threaded connector can still be the wrong type. SMA and reverse-polarity SMA should not be confused, and N-type connections are different again.

The ANT-252 documentation identifies an N-type female connector and a 50-ohm antenna system. TP-Link’s published staff guidance identifies SMA female ports for the NX200 arrangement discussed there. Confirm that against your actual hardware version before selecting cables.

For that documented combination, the cable path would need suitable mating N-male and SMA-male ends, with the correct electrical specification and outdoor suitability where exposed. This article does not verify a particular cable SKU or a complete plug-and-play kit. The cable and any adapters must be confirmed separately before purchase.

MIMO means the number of antenna paths matters

Mobile routers can use multiple antenna paths as part of their supported radio arrangement. The external setup needs to follow the manufacturer’s instructions for the number of connections and antenna configuration. Connecting one arbitrary antenna should not be assumed equivalent to the documented two-port arrangement.

TP-Link’s relevant guidance calls for both external mobile antennas to be connected. A complete installation may therefore need two compatible antennas and suitable cable paths, or an appropriate documented multi-connection antenna solution. Check orientation and spacing guidance rather than improvising from the number of sockets alone.

The ANT-252 is a directional antenna example, not a claim that one item alone supplies a complete two-path NX200 installation. Quantity, mounting, cables and the exact supported configuration need to be included in the purchase plan. Resolve those requirements before describing the setup as complete.

Cable loss can offset antenna gain

Antenna gain is only one part of the radio path. Cable and connector losses reduce what reaches the router, and loss depends on frequency, cable type and length. A high-gain antenna connected through a long unsuitable cable can be disappointing.

Keep the cable run practical and use an appropriate low-loss design for the frequency and installation. Do not choose length only because it reaches the easiest mounting point. Ask for loss information at the relevant bands and include every connector or adapter in the assessment.

Avoid adding adapters casually to solve an unplanned connector mismatch. They introduce extra connections and weatherproofing requirements. A properly specified cable path is preferable to discovering at installation that several unverified converters are needed.

Compare the complete antenna system

Relevant TSS products, not an unverified kit

Compare these relevant TSS products using the current specifications on their pages: TP-Link Archer NX200 5G AX1800 Dual-Band Gigabit Router, ANT-252 9dBi 4G/5G/LTE Yagi Directional Antenna (ANT-252). Availability and fulfilment details can change; confirm them before ordering.

The TP-Link Archer NX200 and ANT-252 illustrate the router and antenna sides of the decision. Their product pages provide the exact listings, but listing both does not establish that all required parts are included. Confirm the supplied router version and complete antenna arrangement before ordering.

Our TP-Link networking networking guide provides broader context. For this purchase, send the router’s model and hardware-version label, the intended service and proposed cable length when asking for advice. Clear equipment details help avoid recommendations based on a general series name.

Before committing, confirm the relevant bands, number of antenna paths, connector ends and mounting requirements. If a compatible cable or installation plan remains unresolved, keep that as a purchase gate rather than treating it as a minor detail to fix later.

Outdoor mounting needs a proper plan

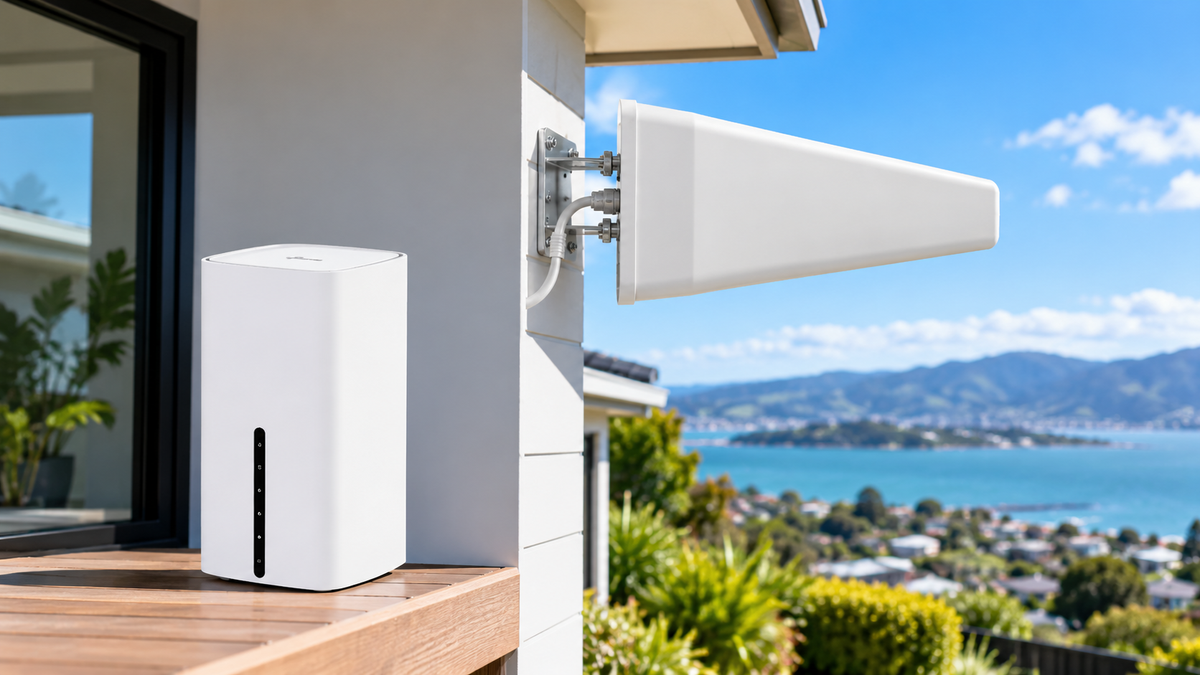

A directional antenna needs an appropriate mount and a considered alignment process. Follow the antenna and router documentation, protect exposed connections and avoid unsafe work at height. An outdoor antenna does not make an indoor router suitable for rain or condensation.

For roof, mast or building work, use suitable professional help where required. Consider weather exposure, cable entry, grounding and surge protection with a qualified installer rather than treating this article as an installation design. Keep the equipment within its documented operating limits.

After installation, enable the supported external-antenna setting where required and repeat the same measurements used before the change. Compare signal quality and ordinary task performance, not one isolated speed result. Retain the setup details so future troubleshooting has a clear baseline.

Frequently asked questions

Will an external antenna always make mobile broadband faster?

No. It may help an appropriate reception problem, but performance also depends on network capacity, supported bands, cable loss and the service. TP-Link does not guarantee third-party antenna performance.

Does one ANT-252 make a complete NX200 antenna kit?

No. The documented two-port arrangement, antenna quantity, compatible cables, mounting and hardware version must be checked. No specific complete cable kit is verified in this article.

Will a mobile antenna extend household Wi-Fi coverage?

It addresses the upstream cellular connection, not Wi-Fi distribution directly. Diagnose the local Wi-Fi link separately.

Can I choose cables just by matching the connector shape?

No. Confirm connector type and gender, impedance, loss at the relevant frequencies and environmental suitability. Similar-looking threaded connectors can be incompatible.

Verify every part before buying the antenna system

Browse TSS antennas, mounts and surge protection and compare the exact model details before you choose. For help matching equipment to your setup, contact Tech Supply Shed with your current model and requirements.

Sources and further reading

Technical references checked on 2 October 2026: TP-Link external mobile-antenna guidance; TP-Link NX200 connector guidance; Go Wireless NZ ANT-252 specifications
