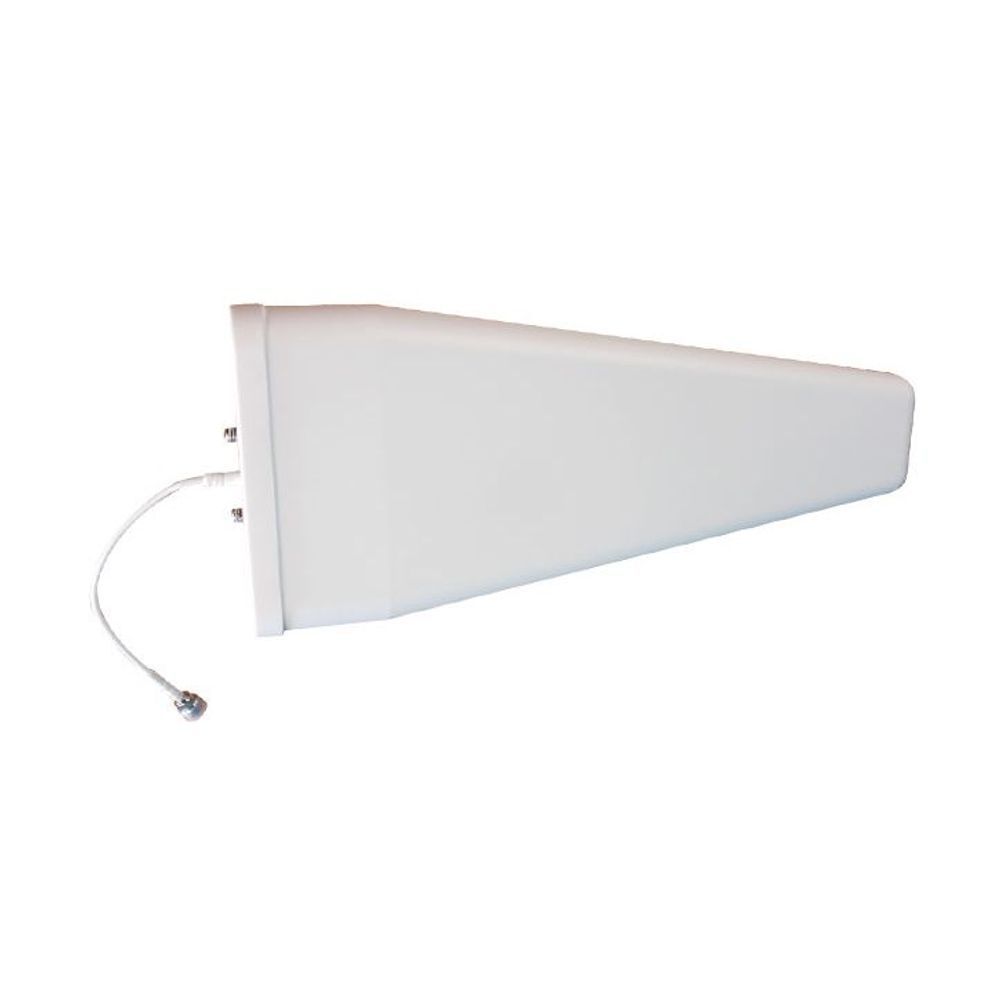

Name: ANT-252 - 9dBi Wideband 4G/5G/LTE Broadband Directional Yagi Antenna
Brand: Tech Supply Shed
SKU: ANT-252
Price: 102.35 NZD
Availability: InStock

ANT-252 - 9dBi Wideband 4G/5G/LTE Broadband Directional Yagi Antenna

ANT-252

$102.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

The ANT-252 is a GSM/CDMA/PCS/3G/4G/5G/WLAN/LTE Broadband Directional Yagi Antenna with wideband frequency options including 698-960/1710-2700/3300-3800MHz.

This antenna is the ideal solution designed by to cover all of the cellular frequencies, including the new 3.5GHz 5G bands to meet all your broadband needs.

Features

Broadband Directional Antenna with Low VSWR
Covers the new 5G 3.5GHz cellular bands
Seal with Radome, Strong Protection against the elements
Supplied with stainless steel mast down-tilt bracket
Perfect for RBI (Rural Broadband Initiative) Installations
Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications

Details
Product Code	ANT-252
Frequency Range	698-960MHz, 1710-2700MHz, 3300-3800MHz
Gain	9dBi @ 698-3800MHz
Polarisation	Vertical
Vertical Beamwidth	60 deg 698-960MHz, 65 deg 1710-2700MHz, 60 deg 3300-3800MHz
Horizontal Beamwidth	85 deg 698-960MHz, 80 deg 1710-2700MHz, 75 deg 3300-3800MHz
VSWR	=1.5
Impedance	50 Ohm
Connector Type	N-Type Female
Cable	20cm RG141 White UV Stable Coax
Pole Mount Diameter	25-50mm
Pole Mount Construction	2.5mm 304 Stainless steel, L type cradle
Dimensions	512mm x 64mm x 210mm

Details
Pole Mount Bracket	Yes Included 2.5mm 304 Stainless steel, L type cradle

Specifications

Details
Product Code	ANT-252
Frequency Range	698-960MHz, 1710-2700MHz, 3300-3800MHz
Gain	9dBi @ 698-3800MHz
Polarisation	Vertical
Vertical Beamwidth	60 deg 698-960MHz, 65 deg 1710-2700MHz, 60 deg 3300-3800MHz
Horizontal Beamwidth	85 deg 698-960MHz, 80 deg 1710-2700MHz, 75 deg 3300-3800MHz
VSWR	=1.5
Impedance	50 Ohm
Connector Type	N-Type Female
Cable	20cm RG141 White UV Stable Coax
Pole Mount Diameter	25-50mm
Pole Mount Construction	2.5mm 304 Stainless steel, L type cradle
Dimensions	512mm x 64mm x 210mm
