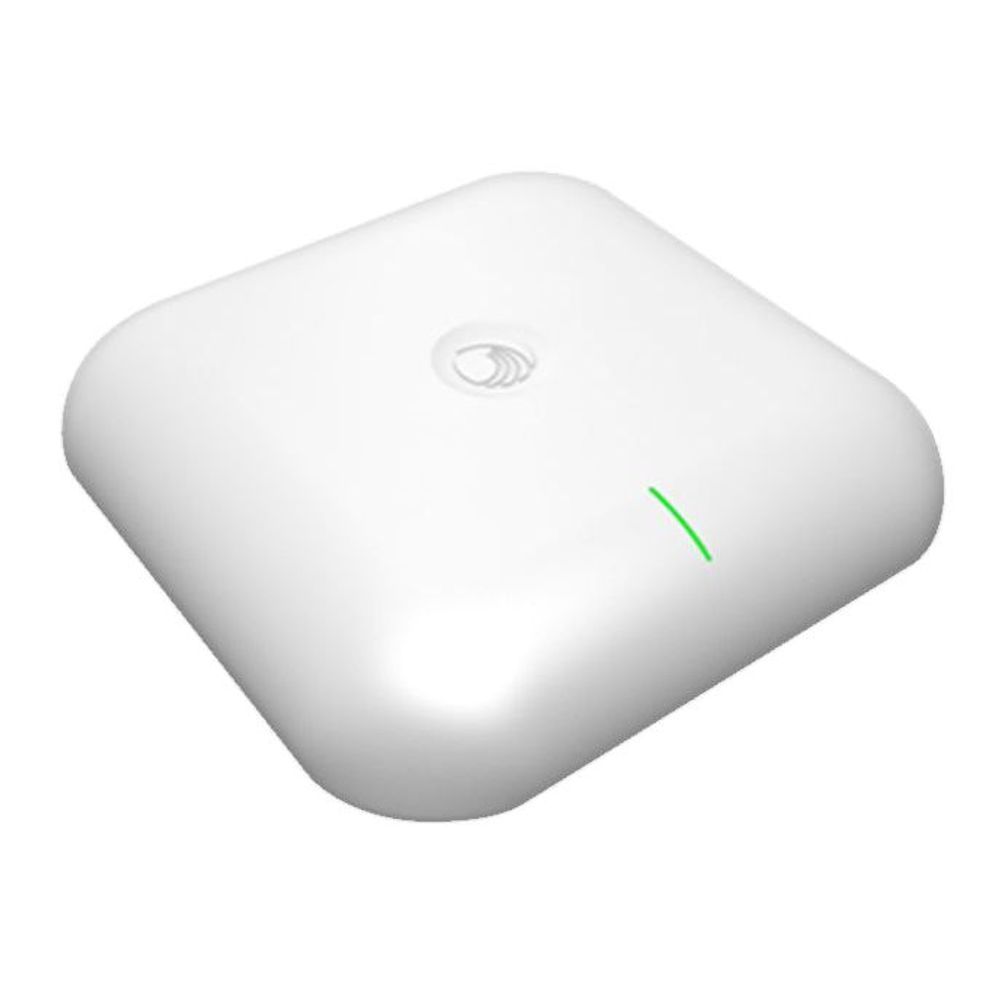

Name: XV3-8 - Cambium 802.11ax Tri-Radio 8 x 8 Wi-Fi 6 MU-MIMO Access Point with Software-Defined Radios
Brand: Cambium Networks
SKU: XV3-8
Price: 1259.25 NZD
Availability: InStock

XV3-8 - Cambium 802.11ax Tri-Radio 8 x 8 Wi-Fi 6 MU-MIMO Access Point with Software-Defined Radios

XV3-8

$1,259.25

Tax included.

5 items available

Select quantity

Description

The Cambium XV3-8X00A00-RW is an 802.11ax / WiFi6 Tri-Radio, 8x8 MU-MIMO Access Point with Software-Defined Radios.

The Cambium XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4x4 plus one 2.4 GHz 4x4, or the two 5 GHz radios can be combined into a single 5 GHz 8x8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.

The Cambium XV3-8 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.

Features

Compatible with Cambium Networks XMS or cnMaestro management system
High-density MU-MIMO Wi-Fi 6 with software-defined radios (SDR)
Five-radio architecture for edge services
6 Gbps aggregate data rate
Dedicated scanning sensor, dual band
Application policy control
EasyPass with Microsoft Azure and Google G Suite integration
5 Year limited lifetime warranty

Details
Product Code	XV3-8X00A00-RW
Radios	2.4 GHz: 802.11 b/g/n/ax, 4x4; 5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8 (or configure as two 4x4); 2.4/5 GHz scan, 1x1; BLE 4.1
Wi-Fi	802.11 a/b/g/n/ac Wave 2/ax
SSID Security	WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open
Max PHY Rate	2.4 GHz: 1,147 Mbps, 5 GHz: 4,804 Mbps
Ports	1 x IEEE 802.3 10/100/1000 Mbps, 1 x IEEE 802.3bz 100/1000/2500/5000 Mbps Auto sensing MDIX, 1 x USB 3.0
Antenna	2.4 GHz: 5 dBi, 5 GHz: 6.7dBi, 2.4/5 GHz: sensor 5 dBi / 6.3 dBi, BLE 5 dBi
Max EIRP	2.4 GHz: 31 dBm, 5 GHz: 36 dBm
Power	Max power with USB/BLE, 35 W (802.3bt); 802.3at mode with USB/BT disabled; 12 VDC power, 2.1 mm barrel connector
Dimensions	235 mm x 235 mm x 42 mm
Weight	1,250 g
Ambient Operating Temperature	0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature	-20ºC to 70ºC (-4ºF to 158ºF)
Humidity	95% RH non-condensing
Mount Options	Wall or ceiling, T-bar with included locking bracket, ceiling tile plate

Details
Power Supply	Sold Separately (N000000L142A)
Mounting Hardware	Wall or ceiling, T-bar with included locking bracket, ceiling tile plate

Specifications

Details
Product Code	XV3-8X00A00-RW
Radios	2.4 GHz: 802.11 b/g/n/ax, 4x4; 5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8 (or configure as two 4x4); 2.4/5 GHz scan, 1x1; BLE 4.1
Wi-Fi	802.11 a/b/g/n/ac Wave 2/ax
SSID Security	WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open
Max PHY Rate	2.4 GHz: 1,147 Mbps, 5 GHz: 4,804 Mbps
Ports	1 x IEEE 802.3 10/100/1000 Mbps, 1 x IEEE 802.3bz 100/1000/2500/5000 Mbps Auto sensing MDIX, 1 x USB 3.0
Antenna	2.4 GHz: 5 dBi, 5 GHz: 6.7dBi, 2.4/5 GHz: sensor 5 dBi / 6.3 dBi, BLE 5 dBi
Max EIRP	2.4 GHz: 31 dBm, 5 GHz: 36 dBm
Power	Max power with USB/BLE, 35 W (802.3bt); 802.3at mode with USB/BT disabled; 12 VDC power, 2.1 mm barrel connector
Dimensions	235 mm x 235 mm x 42 mm
Weight	1,250 g
Ambient Operating Temperature	0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature	-20ºC to 70ºC (-4ºF to 158ºF)
Humidity	95% RH non-condensing
Mount Options	Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
