Name: XE5-8 - Cambium XE5-8 Indoor Five-Radio Tri-band 2.4GHz, 5GHz and 6GHz WiFi 6e 8x8/4x4 High-Density Access Point
Brand: Cambium Networks
SKU: XE5-8
Price: 4215.9 NZD
Availability: OutOfStock

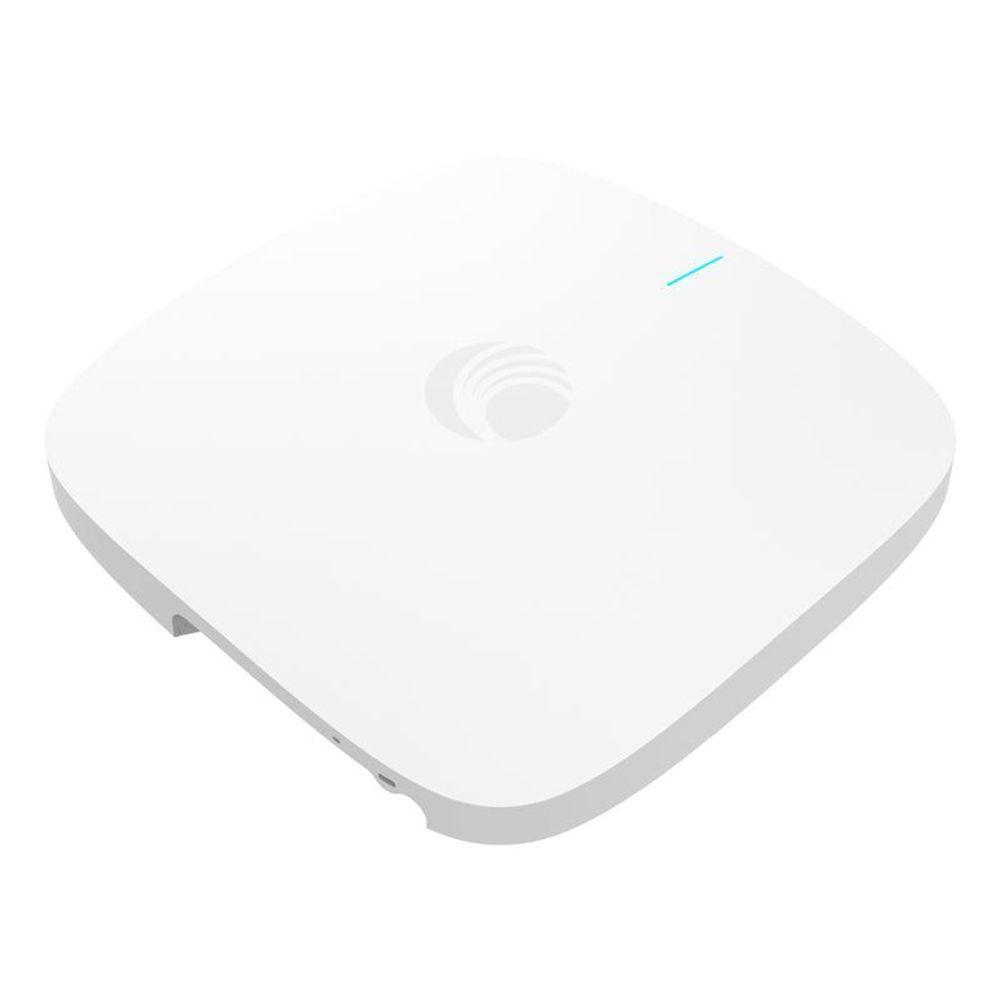

Indoor WiFi access point, white compact rounded design with small status LED

XE5-8 - Cambium XE5-8 Indoor Five-Radio Tri-band 2.4GHz, 5GHz and 6GHz WiFi 6e 8x8/4x4 High-Density Access Point

XE5-8

$4,215.90

Tax included.

Out of stock

Select quantity

Description

Cambium XE5-8 Wi-Fi 6/6E Indoor Access Point, 802.11ax Five-Radio Tri-Band 2.4GHz, 5GHz and 6GHz, 8x8/4x4 High-density Access Point.

The XE5-8 is a five-radio Wi-Fi 6/6E 8x8/4x4 access point (AP) designed to deliver high-density, future-proof performance for building next generation wireless networks. With five user servicing radios, the XE5-8 delivers the highest density Wi-Fi 6 solution in the industry. Wi-Fi 6E support extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available. With high-speed software-defined radios, the XE5-8 enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) support when sufficient 6 GHz clients are available. The XE5-8 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

The XE5-8 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.

CLOUD AND ON-PREMISES MANAGEMENT
XE5-8 operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Features

Compatible with Cambium Networks XMS or cnMaestro management system
Five-radio Tri-Band W-Fi 6 and WiFi6E
Tri-Band WiFi6E support (2.4GHz, 5GHz and 6GHz bands)
15.6 Gbps aggregate data rate
Dual software-defined 5 GHz/6 GHz radios
Dual 5 GbE uplink ports
Microsoft Azure and Google G Suite integration

Details
Product Code	XE5-8X00A06-RW
Radios	Two: 4x4 5/6 GHz 802.11a/n/ac/ax, SW configurable to 5 or 6GHz operation; Two: 4x4 5 GHz 802.11a/n/ac/ax, SW configurable to one 8x8 radio; One: 4x4 2.4 GHz 802.11 b/g/n/ax; BLE 4.1
Wi-Fi	802.11 a/b/g/n/ac Wave 2/ax
SSID Security	WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Ports	2 x IEEE 10/100/1000/2500/5000 Mbps Ethernet, 1 x USB 3.0
Antenna	6 GHz: 4 dBi, Omni; 5 GHz: 5 dBi, Omni; 2.4 GHz: 5 dBi, Omni
Max EIRP	6 GHz: 30 dBm; 5 GHz: 32 dBm; 2.4 GHz: 31 dBm
Power	Max 59W 802.3bt powered device
Dimensions	300 mm x 300 x 58 mm (without bracket) (11.81 in x 11.81 x 2.28 in )
Weight	1.8 kg (3.97 lbs)
Security	Kensington lock slot
LEDs	Multi-color status LEDs
Ambient Operating Temperature	0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature	-40ºC to 70ºC (-40ºF to 158ºF)
Humidity	95% RH non-condensing
MTBF	2,198,639 hours 25ºC, 791,890 hours at 50ºC
Mount Options	Wall or ceiling, T-bar with included locking bracket, ceiling tile plate

Details
Mounting Hardware	Wall or Ceiling Mount Included
Power Supply	Sold Separately (N000000L142A)

Specifications

Details
Product Code	XE5-8X00A06-RW
Radios	Two: 4x4 5/6 GHz 802.11a/n/ac/ax, SW configurable to 5 or 6GHz operation; Two: 4x4 5 GHz 802.11a/n/ac/ax, SW configurable to one 8x8 radio; One: 4x4 2.4 GHz 802.11 b/g/n/ax; BLE 4.1
Wi-Fi	802.11 a/b/g/n/ac Wave 2/ax
SSID Security	WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Ports	2 x IEEE 10/100/1000/2500/5000 Mbps Ethernet, 1 x USB 3.0
Antenna	6 GHz: 4 dBi, Omni; 5 GHz: 5 dBi, Omni; 2.4 GHz: 5 dBi, Omni
Max EIRP	6 GHz: 30 dBm; 5 GHz: 32 dBm; 2.4 GHz: 31 dBm
Power	Max 59W 802.3bt powered device
Dimensions	300 mm x 300 x 58 mm (without bracket) (11.81 in x 11.81 x 2.28 in )
Weight	1.8 kg (3.97 lbs)
Security	Kensington lock slot
LEDs	Multi-color status LEDs
Ambient Operating Temperature	0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature	-40ºC to 70ºC (-40ºF to 158ºF)
Humidity	95% RH non-condensing
MTBF	2,198,639 hours 25ºC, 791,890 hours at 50ºC
Mount Options	Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
