Name: USW-16-POE - Ubiquiti UniFi 16-Port PoE Switch - 16 Ports - Manageable - 2 Layer Support
Brand: Ubiquiti
SKU: USW-16-POE
Price: 818.8 NZD
Availability: InStock

Ubiquiti UniFi 16-port PoE switch, front view with 16 Ethernet ports

Ubiquiti UniFi 16-port PoE switch, rear panel with power and ports

Ubiquiti UniFi PoE switch, top-front view showing port row and status area

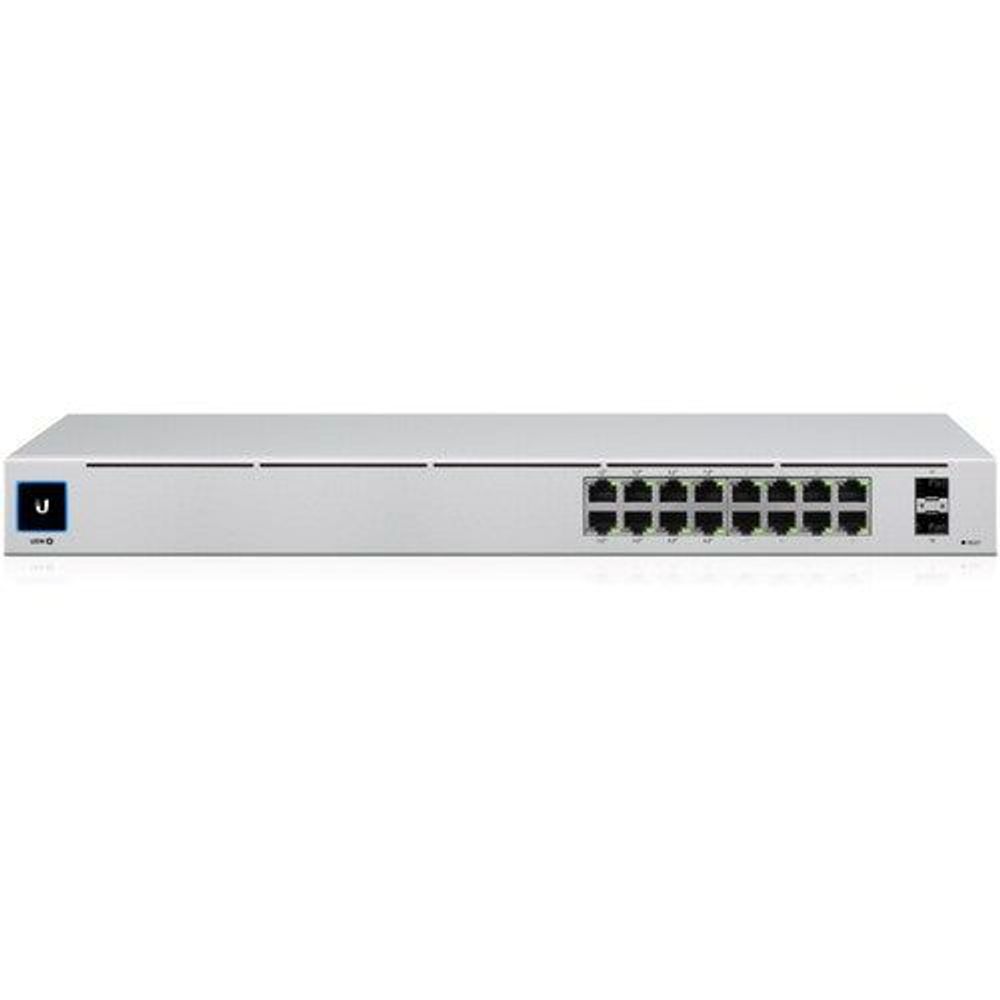

Ubiquiti UniFi 16-port PoE switch, angled front view with Ethernet port block

USW-16-POE - Ubiquiti UniFi 16-Port PoE Switch - 16 Ports - Manageable - 2 Layer Support

USW-16-POE

19% OFF

$818.80 $1,020.60

Tax included.

In stock, ready to be shipped

Select quantity

Description

USW-16-POE – Ubiquiti UniFi 16-Port PoE Switch – 16 Ports – Manageable – 2 Layer Support

Description

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9" , the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features

Features 16 networking ports to easily establish a local network or expand your existing one
Cascade to other network devices through the uplink port to expand your local area network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Management capability provides control over setup and configuration of your network
Built-in power supply to ensure all components are being supplied with accurate voltage
Rack mounting enables you to organize wires & secure cables for professional installation

Specifications

Management & Protocols

Manageable

Yes

Network & Communication

Layer Supported

Power Description

Power Source

Power Supply

I/O Expansions

Expansion Slot Type	SFP (mini-GBIC)
Number of Total Expansion Slots	2
Number of SFP Slots	2

Media & Performance

Network Technology	10/100/1000Base-T
Network Technology	1000Base-X
Ethernet Technology	Gigabit Ethernet
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber

Interfaces/Ports

Modular	Yes
Uplink Port	Yes
Total Number of Network Ports	16
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot
	8 x Gigabit Ethernet Network
	8 x Gigabit Ethernet PoE+

Physical Characteristics

Weight (Approximate)	2.80 kg
Form Factor	Desktop
Form Factor	Rack-mountable
Height	43.7 mm
Width	442.4 mm
Depth	200 mm
Compatible Rack Unit	1U

General Information

Product Type	Ethernet Switch
Manufacturer Part Number	USW-16-POE
Manufacturer Website Address	http://www.ui.com
Manufacturer	Ubiquiti Inc.
Product Model	USW-16-POE
Product Name	UniFi 16-Port PoE Switch
Product Line	UniFi
Brand Name	Ubiquiti

Warranty

Brand

Ubiquiti

Restock ETA (if applicable)

December 31, 2026
