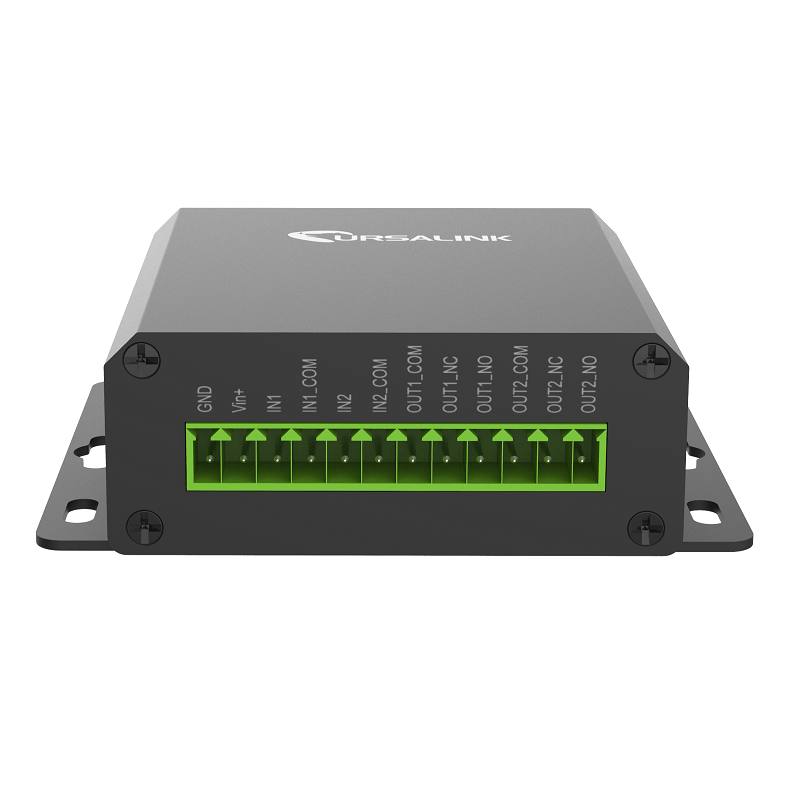

Name: Ursalink LoRaWAN EU868 Remote Client with Digital Input and Relay Output
Brand: Milesight IoT
SKU: UC1114-868
Price: 40.25 NZD
Availability: InStock

Ursalink LoRaWAN EU868 Remote Client with Digital Input and Relay Output

UC1114-868

$40.25

Tax included.

2 items available

Select quantity

Description

Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output

Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output. Ursalink UC1114 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 2 dry contacts and 2 drivable relay outputs. With the aid of Ursalink UC1114, the alarm condition brings attention to engineering personnel immediately. The output can be connected with an alarm indication device, such as a light or horn. The device can give immediate response to the status of both the input and output conditions. A LoRaWAN module is embedded in the Ursalink UC1114.

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud.

. .

Features

Easy operation anywhere and anytime
2 digital inputs, connected with up to 2 dry contact devices
2 relay drivable outputs
Reliable performance with built-in watchdog
Customizable conditions, programmable actions
Send uplink alert messages according to user-defined conditions
Automatic switching of field devices at set times
Send and receive messages via LoRaWAN technology
Comply with the LoRaWAN Class C protocol
support star network and mesh network
High Rx sensitivity and adjustable Tx power
Up to 10km communication distance with omni-directional antenna

Details
Manufacturer's Code	UC1114-EU868
Antenna	50 ? SMA Antenna Interface
Frequency Band	EU868
Sensitivity	-147 dBm @300bps
Output Power	20dBm
Protocol	LoRaWAN Class C
Digital Input	Opto-isolated depending on voltage, Can accept any DC signals of any type, including: DC Voltage (3-24 V)
Digital Output	2 x SPDT Relay Contact Rating: 3Amp DC (Max: 30 V) or 3Amp AC (Max: 250 V)
IO Connector type	Screw Terminals
DC Power Supply	5-24 VDC
Operating Temperature	-40degC to +70degC
Relative Humidity	0% to 95% (non- condensing)
Dimensions	79 x 60 x 24 mm

Details
Included	Terminal Block,

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingUrsalink LoRaWAN EU868 Remote Client with Digital Input and Relay Output

Description

Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output

Features

Easy operation anywhere and anytime
2 digital inputs, connected with up to 2 dry contact devices
2 relay drivable outputs
Reliable performance with built-in watchdog
Customizable conditions, programmable actions
Send uplink alert messages according to user-defined conditions
Automatic switching of field devices at set times
Send and receive messages via LoRaWAN technology
Comply with the LoRaWAN Class C protocol
support star network and mesh network
High Rx sensitivity and adjustable Tx power
Up to 10km communication distance with omni-directional antenna

Details
Manufacturer's Code	UC1114-EU868
Antenna	50 ? SMA Antenna Interface
Frequency Band	EU868
Sensitivity	-147 dBm @300bps
Output Power	20dBm
Protocol	LoRaWAN Class C
Digital Input	Opto-isolated depending on voltage, Can accept any DC signals of any type, including: DC Voltage (3-24 V)
Digital Output	2 x SPDT Relay Contact Rating: 3Amp DC (Max: 30 V) or 3Amp AC (Max: 250 V)
IO Connector type	Screw Terminals
DC Power Supply	5-24 VDC
Operating Temperature	-40degC to +70degC
Relative Humidity	0% to 95% (non- condensing)
Dimensions	79 x 60 x 24 mm
