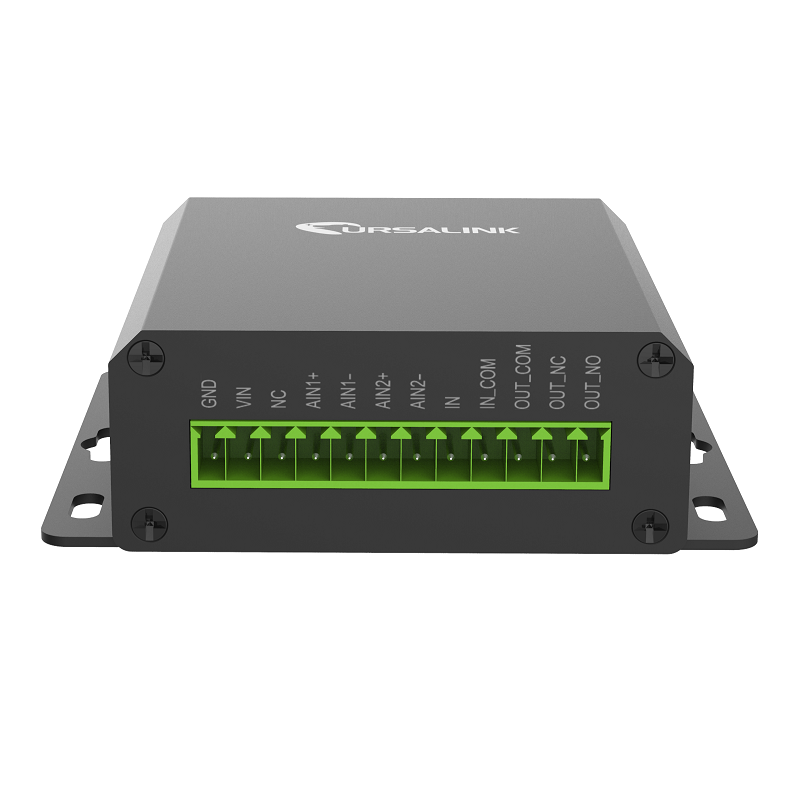

Name: Ursalink LoRaWAN EU868 Remote Client with Digital/Analog Input and Relay Output
Brand: Milesight IoT
SKU: UC1122-868
Price: 63.25 NZD
Availability: InStock

Ursalink LoRaWAN EU868 Remote Client with Digital/Analog Input and Relay Output

UC1122-868

$63.25

Tax included.

4 items available

Select quantity

Description

Ursalink LoRaWAN EU868 Remote IoT Client with Digital/Analog Input and Relay Output

Ursalink LoRaWAN EU868 Remote IoT Client with Digital/Analog Input and Relay Output. Ursalink UC1122 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 DC signal, 1 drivable relay output and 2 analog inputs. With the aid of Ursalink UC1122, the alarm condition brings attention to engineering personnel immediately. The output can be connected to an alarm indication device, such as a light or horn. The module can give immediate response to the status of both the input and output conditions. A LoRa module is embedded in the Ursalink UC1122 .

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud

. .

Features

Easy operation anywhere and anytime
1 relay drivable output and 1 digital input connected with 1 DC signal
2 analog inputs for data acquisition
support for 4–20 mA analog devices
Analog to digital conversion
Customizable conditions & programmable actions
Send uplink alert messages according to user-defined conditions
Automatic switching of field devices at set times
Comply with the LoRaWAN Class C protocol
support star network and mesh network
High Rx sensitivity and adjustable Tx power
Up to 10km communication distance with omni-directional antenna

Details
Manufacturer's Code	UC1122-EU868
Antenna	50 ? SMA Antenna Interface
Frequency Band	EU868
Sensitivity	-147 dBm @300bps
Output Power	20dBm
Protocol LoRaWAN	Class C
Analog Input	4-20 mA (0-5 V Optional), Differential inputs, 12 bit
Digital Input	Opto-isolated depending on voltage, Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V Low Voltage: +1V max
Digital Output	1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VDC@3A
IO Connector type	Screw Terminals
DC Power Supply	5-24 VDC
OperatingTemperature	-40degC to +70degC
Relative Humidity	0% to 95% (non- condensing)
Dimensions	79 x 60 x 24 mm

Details
Included	Terminal Block

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingUrsalink LoRaWAN EU868 Remote Client with Digital/Analog Input and Relay Output

Description

Ursalink LoRaWAN EU868 Remote IoT Client with Digital/Analog Input and Relay Output

Features

Easy operation anywhere and anytime
1 relay drivable output and 1 digital input connected with 1 DC signal
2 analog inputs for data acquisition
support for 4–20 mA analog devices
Analog to digital conversion
Customizable conditions & programmable actions
Send uplink alert messages according to user-defined conditions
Automatic switching of field devices at set times
Comply with the LoRaWAN Class C protocol
support star network and mesh network
High Rx sensitivity and adjustable Tx power
Up to 10km communication distance with omni-directional antenna

Details
Manufacturer's Code	UC1122-EU868
Antenna	50 ? SMA Antenna Interface
Frequency Band	EU868
Sensitivity	-147 dBm @300bps
Output Power	20dBm
Protocol LoRaWAN	Class C
Analog Input	4-20 mA (0-5 V Optional), Differential inputs, 12 bit
Digital Input	Opto-isolated depending on voltage, Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V Low Voltage: +1V max
Digital Output	1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VDC@3A
IO Connector type	Screw Terminals
DC Power Supply	5-24 VDC
OperatingTemperature	-40degC to +70degC
Relative Humidity	0% to 95% (non- condensing)
Dimensions	79 x 60 x 24 mm
