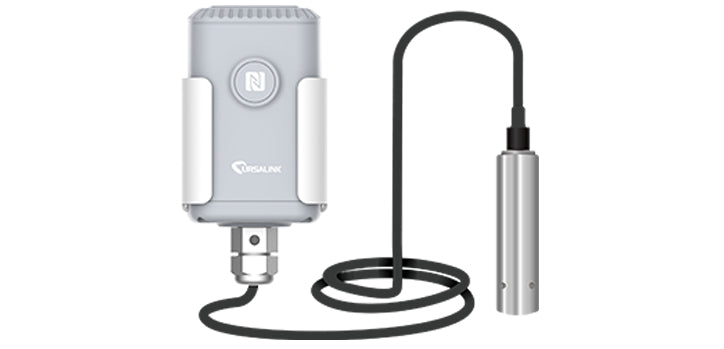

Name: Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor
Brand: Milesight IoT
SKU: EM500-PP-868
Price: 132.25 NZD
Availability: InStock

Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor

EM500-PP-868

$132.25

Tax included.

11 items available

Select quantity

Description

Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor

The EM500-PP pipe pressure IoT sensor is a long range wireless sensor compatible with standard LoRaWAN protocol. Combined with advanced LoRa technology and 19000mAh battery make it a low-power consumption product with years-long use life. It is designed to measure the pressure of water/oil/gas from a 1/4” pipe connection and it is the fundamental component of a leak detection system.

The EM500-PP-868 is an Outdoor IP66 rated Pipe pressure sensor, used for pressure monitoring in pipelines and tanks.
Great for many applications including smart city, Smart farming / Agriculture.

. .

Features

Robust IP66 rated enclosure
Configuration via NFC
LoRaWAN
Ursalink Cloud compliant
Low power consumption

Details
Manufacturer's Code	EM500-PP-868
Frequency	RU864/IN865/EU868
Tx Power	20dBm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP Class A
Antenna	Integrated Ceramic Antenna
Pressure Type	Gauge Pressure
Range	0~1600kPa (16Bar)
Accuracy	±0.3%FS
Resolution	1kPa (0.01Bar)
Overload	150%FS
Process Connection	1/4” Male
Operating Temperature	-30°C to +70°C
Dimension	105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input	19000 mAh Li-SOCL2 battery
Mounting	Pole, DIN rail, wall
IP Rating	IP66 (can be upgraded to IP67), Sensor-IP65
Configuration	Mobile APP or PC software via NFC or USB Type-C

Details
Contents	Pipe Pressure sensor, DIN/Pole/Wall Mounting kit included

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingUrsalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor

Description

Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor

Features

Robust IP66 rated enclosure
Configuration via NFC
LoRaWAN
Ursalink Cloud compliant
Low power consumption

Details
Manufacturer's Code	EM500-PP-868
Frequency	RU864/IN865/EU868
Tx Power	20dBm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP Class A
Antenna	Integrated Ceramic Antenna
Pressure Type	Gauge Pressure
Range	0~1600kPa (16Bar)
Accuracy	±0.3%FS
Resolution	1kPa (0.01Bar)
Overload	150%FS
Process Connection	1/4” Male
Operating Temperature	-30°C to +70°C
Dimension	105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input	19000 mAh Li-SOCL2 battery
Mounting	Pole, DIN rail, wall
IP Rating	IP66 (can be upgraded to IP67), Sensor-IP65
Configuration	Mobile APP or PC software via NFC or USB Type-C
