Name: UCM4-T - RF Armor 4 Gang Cluster Mount for Ubiquiti Sector Antenna
Brand: RF Armor
SKU: UCM4-T
Price: 74.75 NZD
Availability: InStock

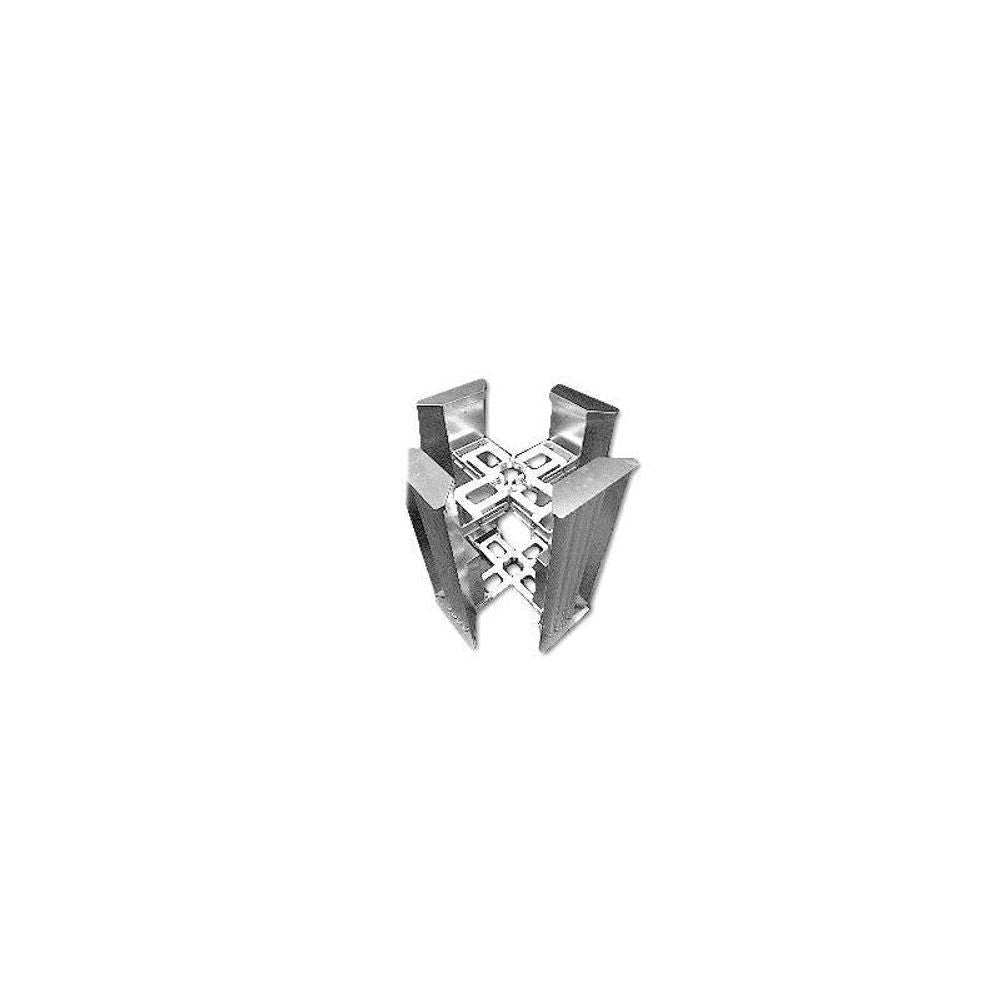

UCM4-T - RF Armor 4 Gang Cluster Mount for Ubiquiti Sector Antenna

UCM4-T

$74.75

Tax included.

5 items available

Select quantity

Description

Designed exclusively for the Ubiquiti Rocket and MIMO sector antennas. The RF Armor 4 gang cluster mounts allow four 60 or 90 or 120 degree sectors to be placed on a single pole at the same horizontal elevation in a very tight cluster. Designed to fit the Ubiquiti airMAX and Ubiquiti airMAX Titanium Variable Sectors.

Features

Note: When mounting Sectors, ensure all sector antennas are of the same type. i.e. Standard airMax Sectors have different mount points and cannot be mixed with airMax Titanium or airMax AC Sector Antennas on the same cluster mount.
Weight: 12 lbs
Powder coated steel with Zinc bolts
Maximum pipe diameter - 3" OD
Includes 2 Brackets
Warning - You must install the RF Armor Sector Shield Kits to prevent self interference if not using the Titanium Sectors and Titanium Rocket.

Details
Manufacturer's Product Code	UCM4-T
Shield Construction	Powder coated steel with Zinc bolts
Compatible With	Ubiquiti AirMax Series: 2G-16-90 2.4GHz 16dBi 90 deg, 2G-15-120 2.4GHz 15dBi 120 deg, 5G-20-90 5GHz 20dBi 90 deg, 5G-19-120 5GHz 19dBi 120 deg, 3G-18-120 3.5GHz 18dBi 120 deg Sector Antennas. Ubiquiti AirMax Titanium Series: 2GHz 15dBi Variable Beamwidth (AM-V2G-Ti), 5GHz 19dBi Variable Beamwidth (AM-V5G-Ti) Sector Antennas. Ubiquiti AirMax AC Sectors AM-5AC22-45, AM-5AC21-60

Details
Screw Pack	Yes
Warranty	Standard 12 Month RTB

Specifications

Details
Manufacturer's Product Code	UCM4-T
Shield Construction	Powder coated steel with Zinc bolts
Compatible With	Ubiquiti AirMax Series: 2G-16-90 2.4GHz 16dBi 90 deg, 2G-15-120 2.4GHz 15dBi 120 deg, 5G-20-90 5GHz 20dBi 90 deg, 5G-19-120 5GHz 19dBi 120 deg, 3G-18-120 3.5GHz 18dBi 120 deg Sector Antennas. Ubiquiti AirMax Titanium Series: 2GHz 15dBi Variable Beamwidth (AM-V2G-Ti), 5GHz 19dBi Variable Beamwidth (AM-V5G-Ti) Sector Antennas. Ubiquiti AirMax AC Sectors AM-5AC22-45, AM-5AC21-60
