Name: Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer
Brand: Ubiquiti
SKU: WM-W
Price: 296.00 NZD
Availability: InStock

WM-W

6% OFF

$296.00 $315.00

Tax included.

In stock, ready to be shipped

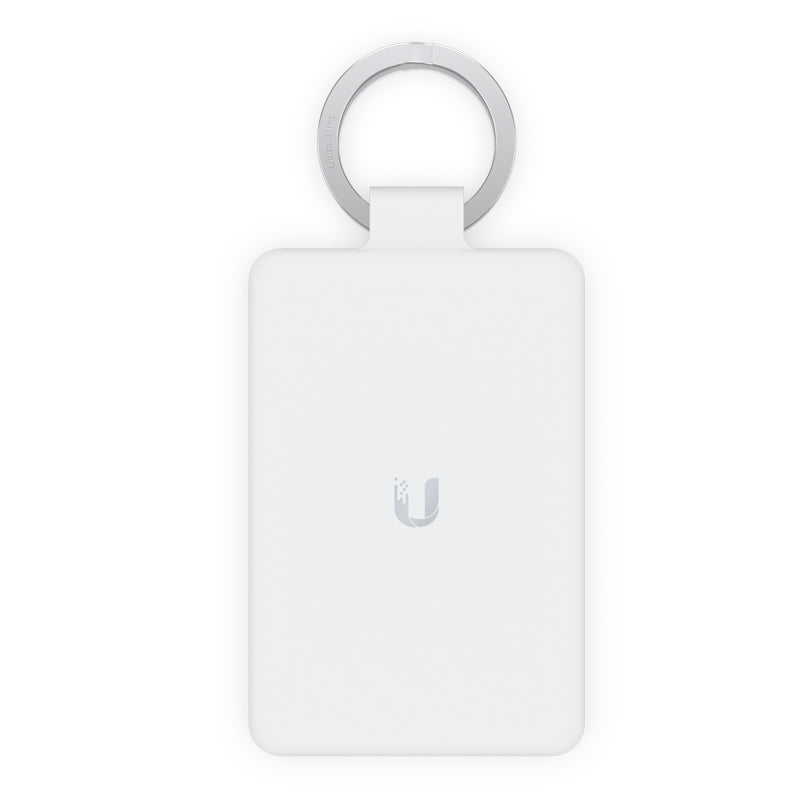

Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer

Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer designed for the WiFiMan iOS and Android mobile app.

Features

2.4 GHz and 5 GHz unlicensed band scanning
240 minutes continuous scanning battery life
BLE smartphone pairing with USB-C charging port
iPhone MagSafe attachable support (A MagSafe case, or compatible iPhone model, is required to attach this device to an iPhone)

Details
Manufacturer's Code	WM-W
Frequency range	2.4 to 2.5 GHz; 5.15 to 5.85 GHz
Amplitude range	-96 dBm to 0 dBm
Amplitude resolution	1 dBm
Management interface	Bluetooth
Power method	Li-ion battery
Power supply	Rechargeable Li-ion battery, 3.7V DC, 300mAh
Max. power consumption	32.4mW
Charger voltage	USB-C, 5V DC/1A
LED	White/blue/red
Buttons	(1) Power, (1) Factory-reset
Management application	UniFi WiFiman iOS: Version 0.18.0 and later, UniFi WiFiman Android: Version 1.15.0 and late
Dimensions	78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3")
Weight	32 g (1.1 oz)
Enclosure material	Plastic
Weatherproofing	IP55
Operating temperature	0 to 40° C (32 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
