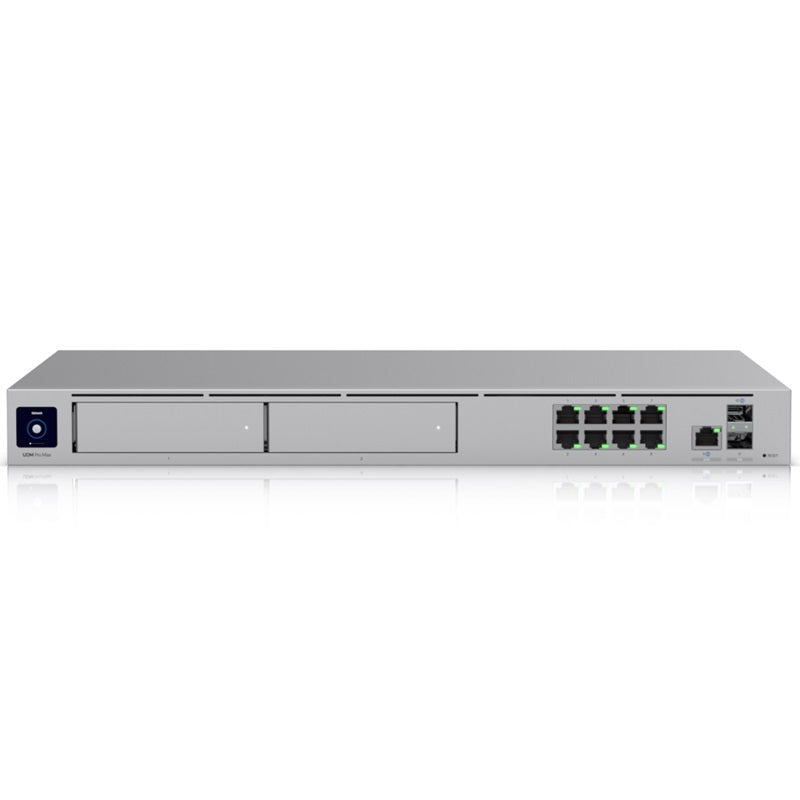

Name: Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway
Brand: Ubiquiti
SKU: UDM-Pro-Max
Price: 1782.50 NZD
Availability: OutOfStock

Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway

UDM-Pro-Max

14% OFF

$1,782.50 $2,082.80

Tax included.

Out of stock

Select quantity

Description

Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway

Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE

Features

Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS
(1) 10G SFP+*, (8) GbE RJ45 LAN ports
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
(2) 3.5" NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
1.3" touchscreen
Great for Hyperfibre connections

Details
Manufacturer's Code	UDM-Pro-Max-AU
Processor	Quad-core ARM® Cortex®-A57 at 2.0 GHz
System memory	8 GB DDR4
On-board storage	32 GB eMMC
Integrated	128 GB SSD
Management interface	Ethernet, Bluetooth
Networking interface	LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port; WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port
IDS/IPS throughput	5 Gbps* Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method	(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz, (1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply	AC/DC, internal, 100W
supported voltage range	100—240V AC
Max. power consumption	100W
ESD/EMP protection	Air: ± 15kV, contact: ± 8kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Gateway Performance	Redundant WAN with failover and load balancing, WiFi QoS with UniFi APs, Application, domain, and country-based QoS, Application and device type identification, Additional internet failover with LTE Backup, Internet quality and outage reporting
Next-generation security	Application-aware firewall rules, Signature-based IPS/IDS threat detection, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall
Advanced networking	License-free SD-WAN, WireGuard, L2TP and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, One-click Teleport and Identity VPN, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IGMP proxy, IPv6 ISP support
Ethernet LED	Green: link/activity
SFP+ LED	Green: link/activity
HDD LED	White: disk activity, Amber: disk error
RPS	Blue: ready
Dimensions	442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight	4.7 kg (10.4 lb)
Enclosure material	Aluminium CNC, SGCC steel
Mount material	SGCC steel
Ambient operating temperature	-10° to 40° C (14° to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC

Details
Included	Mains Power Cable, Rack Mount Kit

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

July 17, 2026
