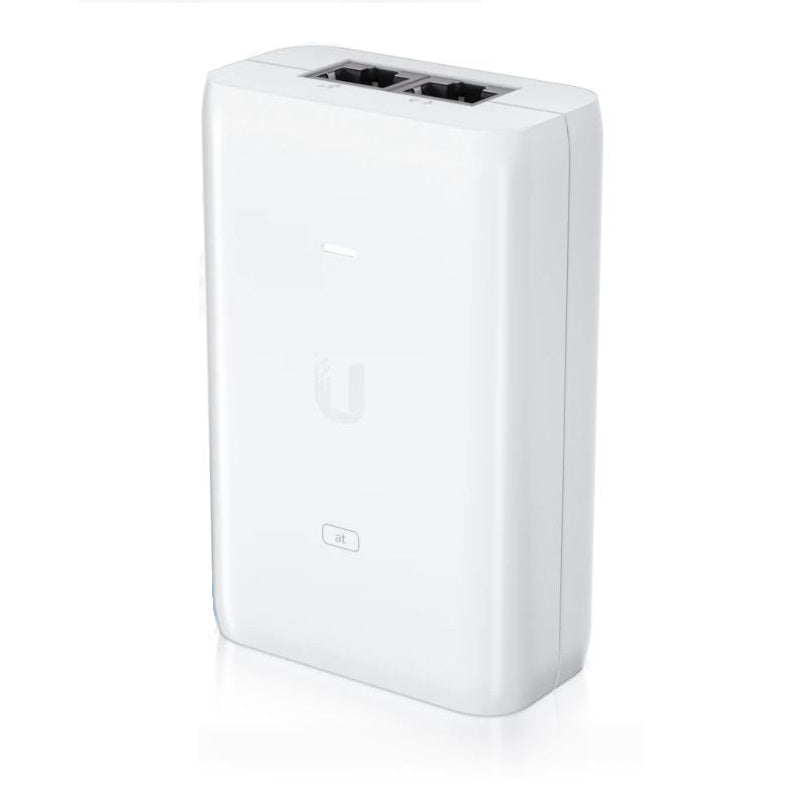

Name: Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)
Brand: Ubiquiti
SKU: U-PoE-PLUS
Price: 42.55 NZD
Availability: InStock

Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)

U-PoE-PLUS

$42.55

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)

Ubiquiti 802.3at Gigabit PoE Injector 48VDC 30W. The U-PoE+ is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the U-PoE+ can be used to power any U6 Access Point (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.

Features

Provides up to 30W of PoE+ (802.3at) power
Compatible with the next generation of U6 Access points
Surge protection and Clamping protection
AC cable with earth ground

Details
Product Code	U-PoE+
Dimensions	93 x 62 x 35 mm
Weight	156 g
Output Voltage	48VDC @ 0.65A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	No
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.75A@90VAC
Inrush Current	<100A Peak @230VAC, 26?
Efficiency	87%
Output Ripple	1% Max.
Switching Frequency	70 kHz Max.
Line Regulation	? 3%
Load Regulation	? 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 90% Noncondensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 ?s) Power
Peak Pulse Current	36A (10/1000 ?s) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL

Details
Power Cord	3 Pin Clover Lead

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
HeadingUbiquiti UniFi U-PoE-Plus PoE Adapter (30W)

Description

Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)

Features

Provides up to 30W of PoE+ (802.3at) power
Compatible with the next generation of U6 Access points
Surge protection and Clamping protection
AC cable with earth ground

Details
Product Code	U-PoE+
Dimensions	93 x 62 x 35 mm
Weight	156 g
Output Voltage	48VDC @ 0.65A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	No
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.75A@90VAC
Inrush Current	<100A Peak @230VAC, 26?
Efficiency	87%
Output Ripple	1% Max.
Switching Frequency	70 kHz Max.
Line Regulation	? 3%
Load Regulation	? 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 90% Noncondensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 ?s) Power
Peak Pulse Current	36A (10/1000 ?s) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
