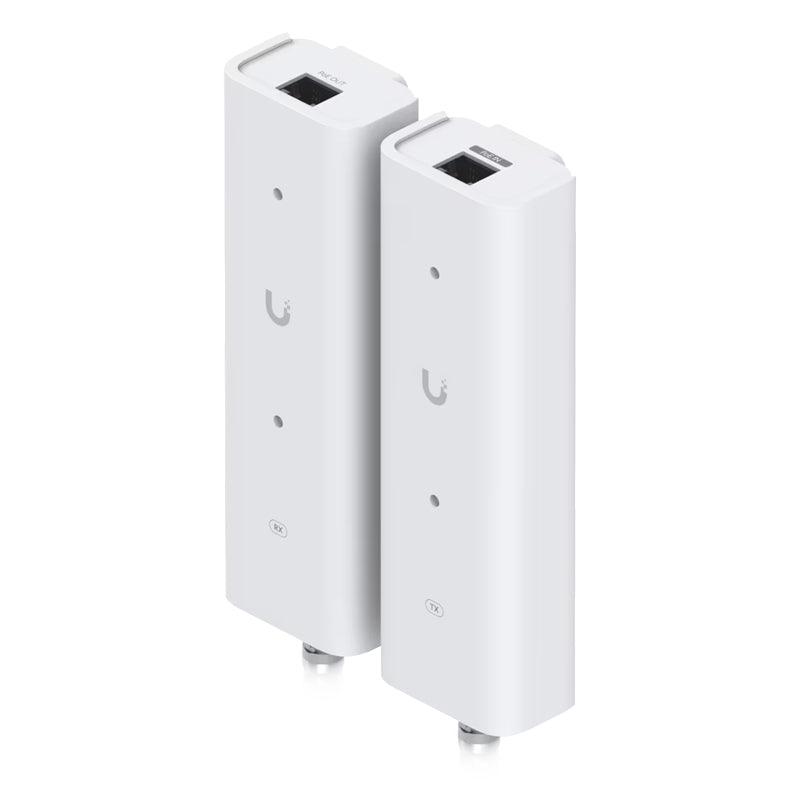

Name: Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender for Twisted-Pair or Coax Cables
Brand: Ubiquiti
SKU: UACC-Retrofit-PoE-2Wire
Price: 253.00 NZD
Availability: OutOfStock

Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender for Twisted-Pair or Coax Cables

UACC-Retrofit-PoE-2Wire

$253.00

Tax included.

Out of stock

Select quantity

Description

Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender, A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios

Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender, A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.

Transmitter
? (1) PoE++ input
? (1) 2-wire output
? (1) 2-wire to BNC adapter

Receiver
? (1) PoE/PoE+ output
? (1) 2-wire input
? (1) 2-wire to BNC adapter

Features

Suitable for up to 750m cable lengths, refer to data sheet matrix for expected bandwidth and power output
Extend PoE over existing twisted-pair or coax cables using the included 2-wire to BNC adapters
Powered by PoE++

Details
Manufacturer's Code	UACC-Retrofit-PoE-2Wire
Dimensions	PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1"), Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight	PoE in: 77 g (2.7 oz), PoE out: 79 g (2.8 oz), Adapter: 140 g (4.9 oz)
Enclosure material	Polycarbonate
Mounting material	Polycarbonate
Coaxial connector	BNC female
Networking interface	(1) 10/100 MbE, (1) Homeplug AV
Power method	PoE++
PoE input	(1) PoE++, 50V DC, 1.2A
PoE output	(1) PoE+, 48V DC, 0.6A
Max. power consumption	3W (Without PoE output)
ESD/EMP protection	Air: ±8kV, contact: ±4kV
Recommend max. cable length	Refer to attached datasheet matrix
LED	White
Ambient operating temperature	-10 to 40° C (14 to 104° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC

support

Details
Includes	(1) Transmitter, (1) Receiver, (2) 2-wire to BNC Adapters
Mounting Hardware	Wall Mount Kit Included

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
HeadingUbiquiti UniFi PoE Over 2-Wire Retrofit Extender for Twisted-Pair or Coax Cables

Description

Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender, A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios

Features

Suitable for up to 750m cable lengths, refer to data sheet matrix for expected bandwidth and power output
Extend PoE over existing twisted-pair or coax cables using the included 2-wire to BNC adapters
Powered by PoE++

Details
Manufacturer's Code	UACC-Retrofit-PoE-2Wire
Dimensions	PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1"), Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight	PoE in: 77 g (2.7 oz), PoE out: 79 g (2.8 oz), Adapter: 140 g (4.9 oz)
Enclosure material	Polycarbonate
Mounting material	Polycarbonate
Coaxial connector	BNC female
Networking interface	(1) 10/100 MbE, (1) Homeplug AV
Power method	PoE++
PoE input	(1) PoE++, 50V DC, 1.2A
PoE output	(1) PoE+, 48V DC, 0.6A
Max. power consumption	3W (Without PoE output)
ESD/EMP protection	Air: ±8kV, contact: ±4kV
Recommend max. cable length	Refer to attached datasheet matrix
LED	White
Ambient operating temperature	-10 to 40° C (14 to 104° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC
