Name: Ubiquiti UniFi Enterprise Access Hub Facility Access
Brand: Ubiquiti
SKU: EAH-8
Price: 2668.0 NZD
Availability: OutOfStock

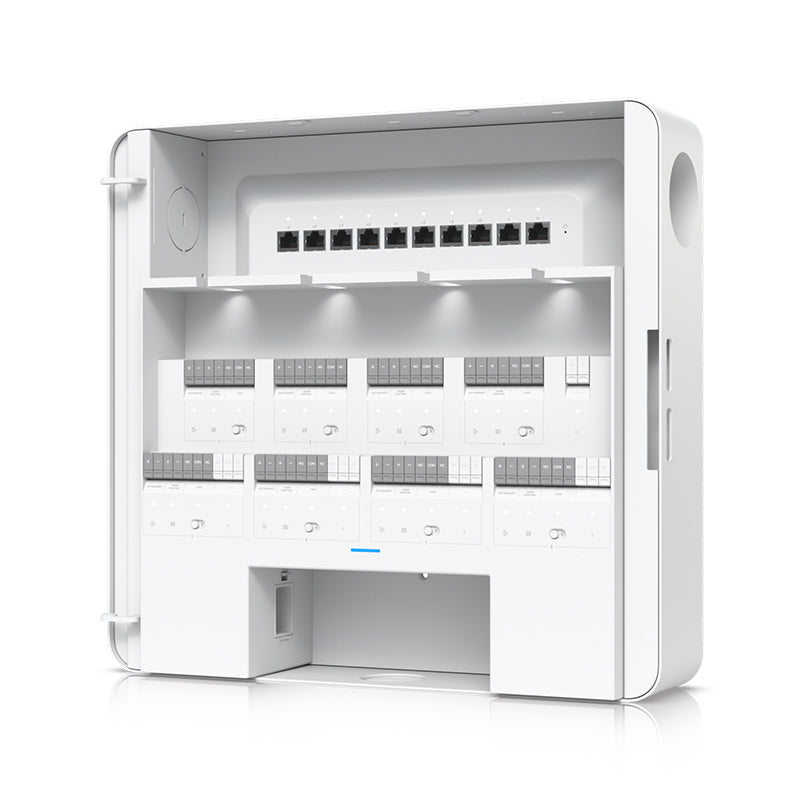

Ubiquiti UniFi access hub facility enclosure with open panel, ports, and circuit modules

Ubiquiti UniFi Enterprise Access Hub Facility Access

EAH-8

15% OFF

$2,668.00 $3,145.00

Tax included.

Out of stock

Select quantity

Description

Ubiquiti UniFi Enterprise Access Hub Facility Access

Description

Ubiquiti UniFi Enterprise-grade Access Hub with entry and exit control to eight doors and battery backup support.

Ubiquiti UniFi Enterprise Access Hub Facility Access. Ubiquiti UniFi Enterprise Access Hub is an Enterprise-grade access hub with entry and exit control to eight doors and battery backup support., a part of UniFi Access solution.

Features

(8) Lock terminals (12V or Dry)
(8+8) Inputs for request-to-exit devices and door position sensors
(8) PoE ports for Access Readers
(4) AUX terminals for chimes, sirens, or door openers
(1) Battery backup input (32–48V)

Details
Manufacturer's Code	EAH-8-EU
Dimensions	379 x 355 x 105 mm
Weight	9.1kg
Enclosure Material	SGCC housing with PC cover
Mounting Material	SGCC wall mount plate
Networking Interface	(10) 1 Gbps Ethernet
Power Method	Universal input, 100-240V AC,~4.4A Max, 50/60Hz, 32–48V DC Lead Acid Battery
Power Supply	AC/DC, internal
Max Power Consumption	240W
PoE Interface	(8) PoE (Pins 1, 2+; 3, 6-)
Voltage Range PoE Mode	44-57V DC
Total Available PoE	60W
Max PoE Wattage Per Port	15.4W
Button	(1) Factory-reset
Digital Input	(8) Inputs for request-to-exit devices, (8) Inputs for door position sensors, (1) Emergency
Dry Output Relay	(8) Lock terminals (12V or Dry), (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered Output Relay	Lock: 12V DC, 1A/ Dry, Aux: Dry only
Operating Environment	Indoor use only
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	5 - 90% Noncondensing
Certifications	CE, FCC, IC

support

Details
Power Supply	Yes, IEC cord provided
Mounting	Wall-Mount and Screws included
