Name: Ubiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna
Brand: Ubiquiti
SKU: UMA-D
Price: 225.4 NZD
Availability: InStock

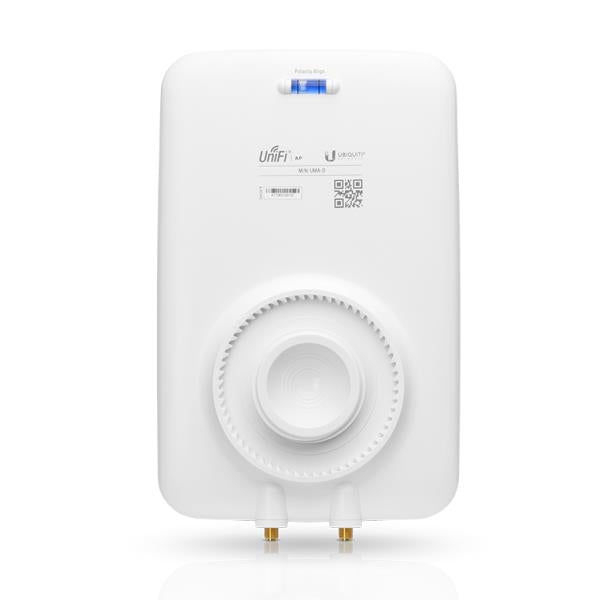

Ubiquiti UniFi dual-band mesh sector antenna, white housing with circular base and bottom connectors

Ubiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna

UMA-D

20% OFF

$225.40 $283.50

Tax included.

20 items available

Select quantity

Description

Ubiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna

Description

Ubiquiti UniFi Mesh Dual Band Dual Polarity 802.11ac Directional Antenna

Ubiquiti UniFi Dual Band Dual Polarity MESH Antenna. The Ubiquiti UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customised pattern shaping. It is available in single and five packs.

Features

Optimised for 802.11ac, UMA-D offers a high efficiency directional radiation pattern with dual polarity
Encased in UV-stabilised plastic, can be used indoors or outdoors
Ball joint mount designed for precise aiming and can be mounted on a pole or wall
Connectorised antenna that is compatible with the UAP-AC-M

Details
Manufacturer's Product Code	UMA-D
Frequency Range	2.4 - 2.5 GHz, 5.1 - 5.9 GHz
Gain	10dBi @ 2.4GHz, 15dBi @ 5GHz
Polarisation	Dual-Linear
Max VSWR	2:1
Vertical Beamwidth	90deg @ 2.4GHz, 45deg @ 5GHz
Horizontal Beamwidth	90deg @ 2.4GHz, 45deg @ 5GHz
Elevation Beamwidth	90deg @ 2.4GHz, 45deg @ 5GHz
Connector Type	(2) RP-SMA Female
Wind Loading	125 mph
Pole Mount Diameter	38 - 75mm

support

Details
Pole Mount	Yes
Wall Mount	Yes
Cables	(2) RP-SMA to RP-SMA Coax Cables

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
HeadingUbiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna

Description

Ubiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna

Description

Ubiquiti UniFi Mesh Dual Band Dual Polarity 802.11ac Directional Antenna

Features

Optimised for 802.11ac, UMA-D offers a high efficiency directional radiation pattern with dual polarity
Encased in UV-stabilised plastic, can be used indoors or outdoors
Ball joint mount designed for precise aiming and can be mounted on a pole or wall
Connectorised antenna that is compatible with the UAP-AC-M

Details
Manufacturer's Product Code	UMA-D
Frequency Range	2.4 - 2.5 GHz, 5.1 - 5.9 GHz
Gain	10dBi @ 2.4GHz, 15dBi @ 5GHz
Polarisation	Dual-Linear
Max VSWR	2:1
Vertical Beamwidth	90deg @ 2.4GHz, 45deg @ 5GHz
Horizontal Beamwidth	90deg @ 2.4GHz, 45deg @ 5GHz
Elevation Beamwidth	90deg @ 2.4GHz, 45deg @ 5GHz
Connector Type	(2) RP-SMA Female
Wind Loading	125 mph
Pole Mount Diameter	38 - 75mm
