Name: Ubiquiti UniFi Access Intercom Viewer - 3-Pack
Brand: Ubiquiti
SKU: UA-Intercom-Viewer-3
Price: 1130.45 NZD
Availability: InStock

Ubiquiti UniFi Access Intercom Viewer - 3-Pack

UA-Intercom-Viewer-3

$1,130.45

Tax included.

7 items available

Select quantity

Description

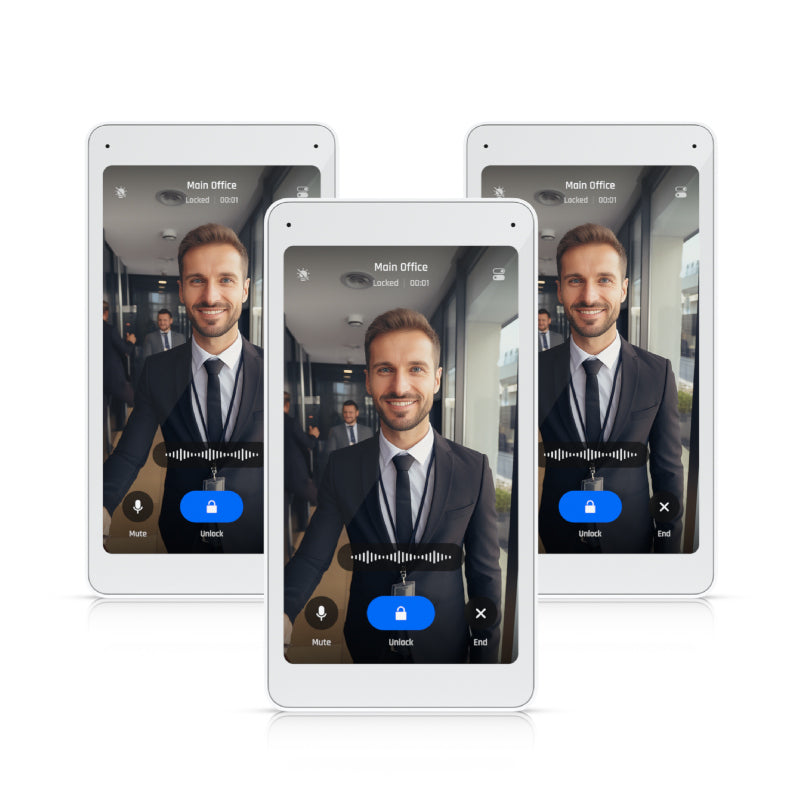

Ubiquiti UniFi Access Intercom Viewer - 3-Pack

Ubiquiti UniFi Access Intercom Viewer - 3-Pack. Ubiquiti UniFi Access Intercom Viewer is a display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.

Contains 3x UA-Intercom-Viewer

Features

Receives doorbell calls from one or more locations
Two-way audio
Instant live view
5" touch display
Connect and power using a PoE switch

Details
Manufacturer's Code	UA-Intercom-Viewer-3
Networking interface	(1) 10/100 Mbps RJ45 port
Management interface	Ethernet
Power method	PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
supported voltage range	44–57V DC
Max. power consumption	5W
Display	127 mm (5") diagonal
Resolution	720 x 1280 (9:16)
Display luminance	300 nits (typical)
Touch screen technology	Capacitive multi-touch
Screen orientation	Portrait
Microphone	Yes
Speaker	Yes
Button	Factory reset
Ambient operating temperature	0 to 40° C (32 to 104° F)
Operating environment	Indoor use only
Ambient operating humidity	5 to 95% noncondensing
Software information	The software version of a product can be checked at https://unifi.ui.com
UL 294 level	Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
UL 294 statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements	Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Intercom-Viewer, V01
Dimensions	135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
Weight	168 g (5.9 oz)
Enclosure materials	Glass, polycarbonate
Mount material	Aluminum alloy
Mounting	Wall (Included), Gang box mount (Gang box not included)

Details
Power Supply	Not Included
Mounting Kit	Wall and Ceiling Kit Included

Warranty

1 Year
