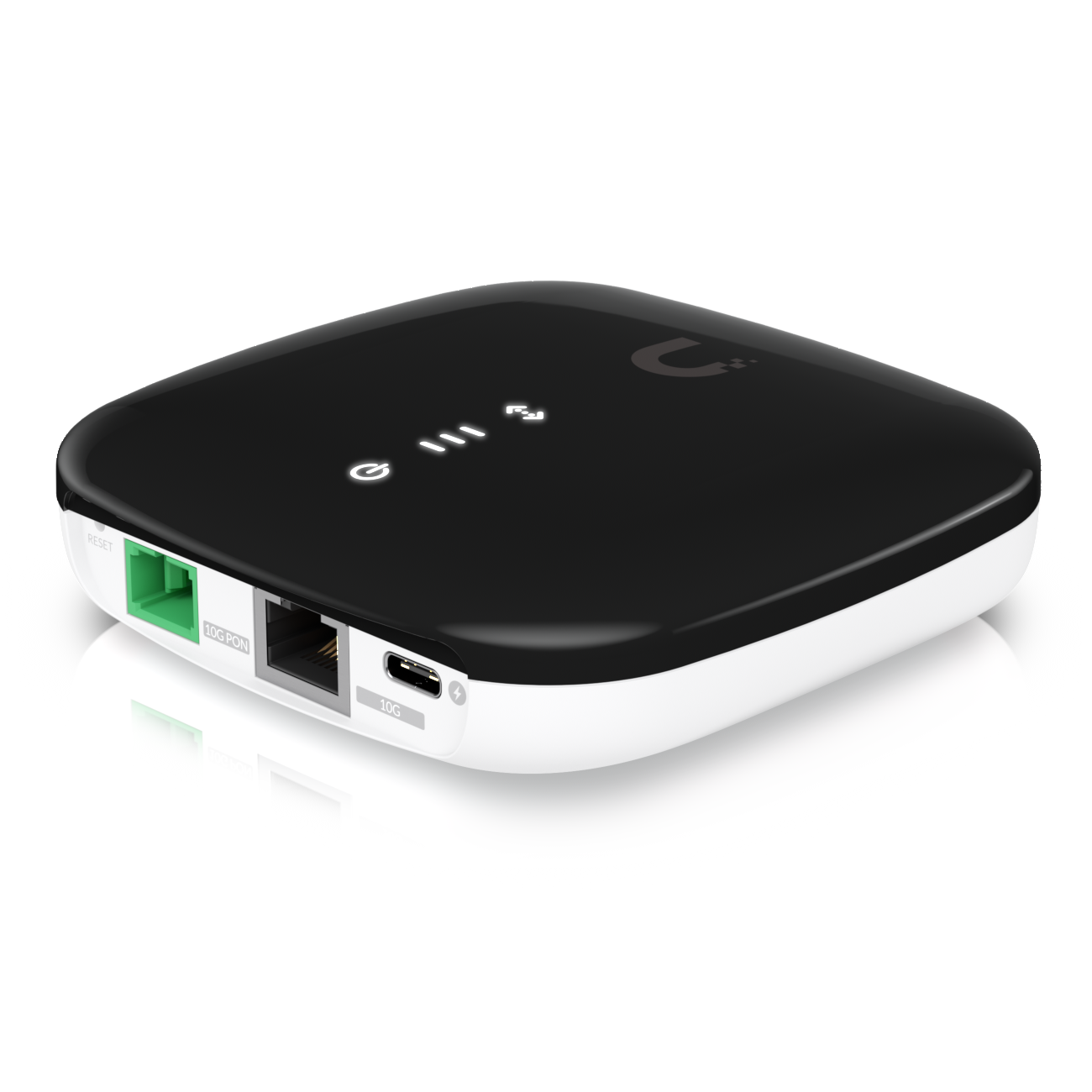

Name: Ubiquiti UISP Fiber XGS-PON Optical Network Unit
Brand: Ubiquiti
SKU: UISP-FIBER-XGS
Price: 430.10 NZD
Availability: InStock

Ubiquiti UISP Fiber XGS-PON Optical Network Unit

UISP-FIBER-XGS

$430.10

Tax included.

7 items available

Select quantity

Description

Ubiquiti UISP Fiber XGS-PON Optical Network Unit

Ubiquiti UISP Fiber XGS-PON Optical Network Unit. An optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

Features

(1) XGS-PON port
(1) 10GbE RJ45 LAN port
20km Range

Details
Manufacturer's Code	UISP-FIBER-XG
Operating wavelength	TX: 1,270nm, RX: 1,577nm
Line code	Scrambled NRZ
Physical reach	20 km
Networking interface	(1) SC/APC, ITU-G.9807 XGSPON WAN port, (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports
Management interface	Ethernet in-band, PON
Memory	256 MB DDR
Onboard flash storage	32 MB NOR
Max. power consumption	8W
Power method	USB-C 5V DC, 3A
Power supply	5V DC, 3A power adapter
supported voltage range	5V DC power adapter
Total non-blocking line rate	Downstream: 9.95 Gbit/s, Upstream: 9.95 Gbit/s
Normal TX range of optical module	4 to 9dBm
Normal RX range of optical module	-9 to -26dBm
Button	(1) Factory reset
Management application	UISP: Version 1.5.7 and later
Dimensions	100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
Weight	220 g (0.49 lb)
Enclosure material	UV-stabilized polycarbonate
Operating temperature	-15 to 45° C (5 to 113° F)
Operating humidity	10 to 95% non-condensing
Certifications	CE, FCC, IC

support

Details
Included	5V 2.4A USB-C Power Supply

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)
