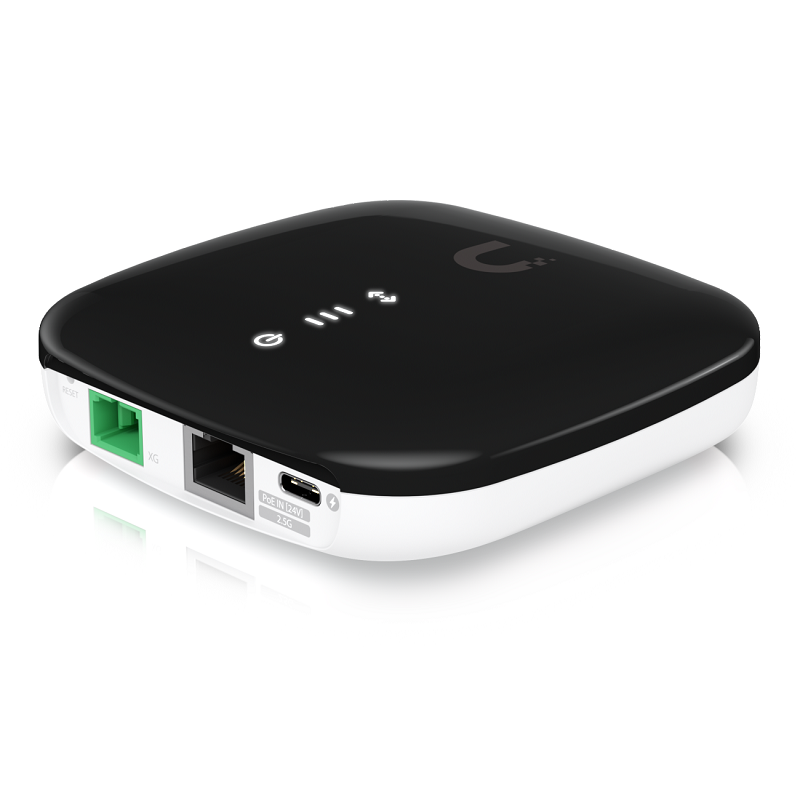

Name: Ubiquiti UISP Fiber XG-PON Optical Network Unit
Brand: Ubiquiti
SKU: UISP-FIBER-XG
Price: 370.30 NZD
Availability: InStock

Ubiquiti UISP Fiber XG-PON Optical Network Unit

UISP-FIBER-XG

$370.30

Tax included.

20 items available

Select quantity

Description

Ubiquiti UISP Fiber XG-PON Optical Network Unit

Ubiquiti UISP Fiber XG-PON Optical Network Unit. An optical network unit that can deliver 2.5Gbps uplink/10Gbps downlink speeds over distances up to 20 km.

Features

(1) XG-PON port
(1) 2.5GbE RJ45 LAN port and 24V PoE in

Details
Manufacturer's Code	UISP-FIBER-XG
Operating wavelength	TX: 1,270nm, RX: 1,577nm
Line code	Scrambled NRZ
Physical reach	20 km
Networking interface	(1) SC/APC, ITU-G.987 XGPON WAN port, (1) 100/1,000/2,500 MbE RJ45 LAN ports
Management interface	Ethernet in-band, PON
PoE interface	(1) PoE in, 24V DC passive PoE
Memory	256 MB DDR
Onboard flash storage	32 MB NOR
Max. power consumption	6W
Power method	USB-C 5V DC, 3A, 24V DC passive PoE
Power supply	5V DC, 3A power adapter
Passive PoE	2-pair (4, 5+; 7, 8-)
supported voltage range	5V DC adapter, 10–30V DC passive PoE
Total non-blocking line rate	Downstream: 9.95 Gbit/s, Upstream: 2.44 Gbit/s
Normal TX range of optical module	2 to 7dBm
Normal RX range of optical module	-9 to -27dBm
Button	(1) Factory reset
Dimensions	100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
Weight	220 g (0.49 lb)
Enclosure material	UV-stabilized polycarbonate
Operating temperature	-15 to 45° C (5 to 113° F)
Operating humidity	10 to 95% non-condensing
Certifications	CE, FCC, IC

support

Details
Included	5V 2.4A USB-C Power Supply

Warranty

1 Year

Brand

Ubiquiti
