Name: Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON
Brand: Ubiquiti
SKU: UACC-UF-WDM-XGS
Price: 667.0 NZD
Availability: InStock

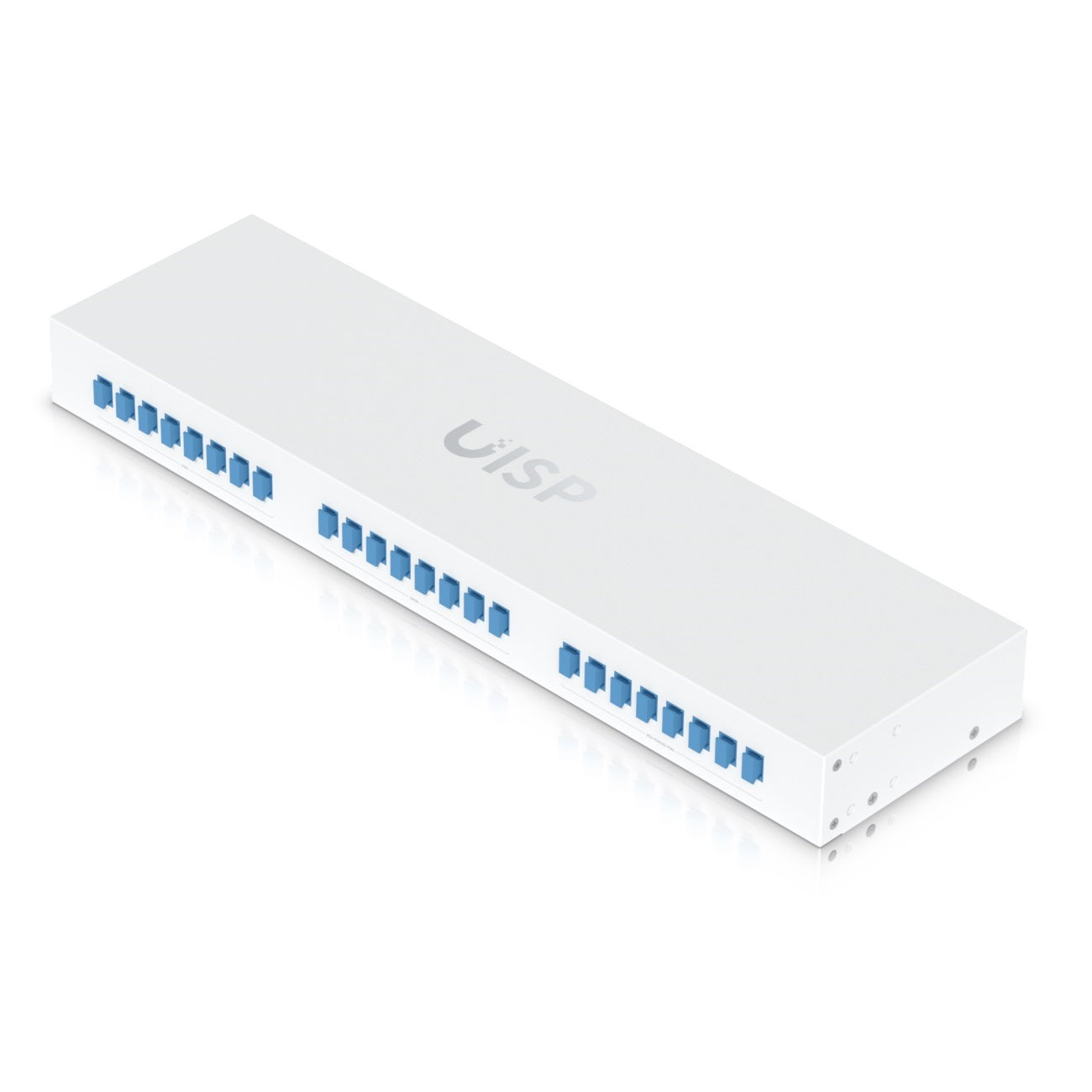

Ubiquiti UISP WDM fiber coexistence filter with blue port array on white housing

Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON

UACC-UF-WDM-XGS

$667.00

Tax included.

5 items available

Select quantity

Description

Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON

Description

Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON

Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON. Wavelength Division Multiplexing module that combines XGS/XG-PON and GPON services into a single fiber distribution system.

Features

(24) Connectors
1U Rack mount

Details
Manufacturer's Code	UACC-UF-WDM-XGS
Dimensions	442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7")
Weight	1.8 kg (3.97 lb)
Enclosure material	Metal
Connector type	(8) COM (SC/UPC), (8) GPON (SC/UPC), (8) XGS/XG-PON (SC/UPC)
GPON - COM port	Wavelength range: 1290—1330 nm, 1480—1500 nm; Max. insertion loss: 1dB; Min. isolation: 25dB
XGS-PON - COM port	Wavelength range: 1260—1280 nm, 1575—1580 nm; Max. insertion loss: 1dB; Min. isolation: 25dB
Min. return loss	50 dB
Max. polarization dependent loss	0.1 dB
Fiber type	ITU-T G.657.A1 Single Model Fiber

support

Details
Included	Rack Mount kit

Warranty

1 Year
