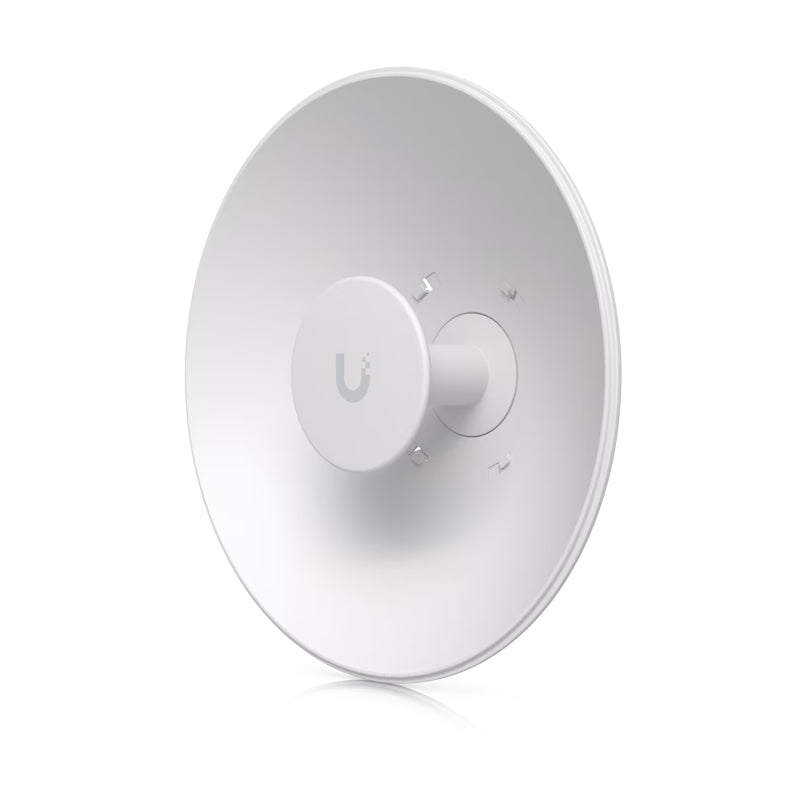

Name: Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect
Brand: Ubiquiti
SKU: UISP-Dish-Mini
Price: 426.65 NZD
Availability: InStock

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

UISP-Dish-Mini

16% OFF

$426.65 $512.80

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect.

Point-to-point (PtP) dish antenna that covers a wide operating frequency range.

Features

Compatible with Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
5.15 - 6.875 GHz operating frequency range
PtP Dish Antenna
WaveGuide radio adapter
Precision mounting bracket
Weatherproof IPX6 rate

Details
Manufacturer's Code	UISP-Dish-Mini
Dimensions	Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9"), Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3")
Weight	Antenna dish: 1.95 kg (4.3 lb), Mount: 1 kg (2.2 lb), Waveguide: 0.45 kg (1 lb)
Enclosure Material	Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate, Waveguide: Aluminum alloy, UV-stabilized polycarbonate
Mount Material	Powder-coated galvanized steel, aluminum alloy
Wind Survivability	Up to 200 km/h (124 mph)
Wind Loading	348 N at 200 km/h (78 lbf at 124 mph)
Mounting	Pole mount, Alignment mounting kit (Included), Mechanical adjustment: ±20° elevation
Pole Mount Diameter	Ø32–76 mm
Weatherproofing	IPX6
Frequency Range	5.15 to 6.875 GHz
Antenna Gain	26 dBi
Beamwidth	Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB), Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Electrical Downtilt	0°
Max. VSWR	2:1
Polarization	Dual-Linear
Compatibility	Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
Cross-Pol Isolation	15 dB
NDAA Compliant	Yes

support

Details
Mounting Hardware	Precision mounting bracket included
WaveGuide Radio Adapter	Included

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
HeadingUbiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

Description

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect.

Point-to-point (PtP) dish antenna that covers a wide operating frequency range.

Features

Compatible with Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
5.15 - 6.875 GHz operating frequency range
PtP Dish Antenna
WaveGuide radio adapter
Precision mounting bracket
Weatherproof IPX6 rate

Details
Manufacturer's Code	UISP-Dish-Mini
Dimensions	Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9"), Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3")
Weight	Antenna dish: 1.95 kg (4.3 lb), Mount: 1 kg (2.2 lb), Waveguide: 0.45 kg (1 lb)
Enclosure Material	Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate, Waveguide: Aluminum alloy, UV-stabilized polycarbonate
Mount Material	Powder-coated galvanized steel, aluminum alloy
Wind Survivability	Up to 200 km/h (124 mph)
Wind Loading	348 N at 200 km/h (78 lbf at 124 mph)
Mounting	Pole mount, Alignment mounting kit (Included), Mechanical adjustment: ±20° elevation
Pole Mount Diameter	Ø32–76 mm
Weatherproofing	IPX6
Frequency Range	5.15 to 6.875 GHz
Antenna Gain	26 dBi
Beamwidth	Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB), Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Electrical Downtilt	0°
Max. VSWR	2:1
Polarization	Dual-Linear
Compatibility	Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
Cross-Pol Isolation	15 dB
NDAA Compliant	Yes
