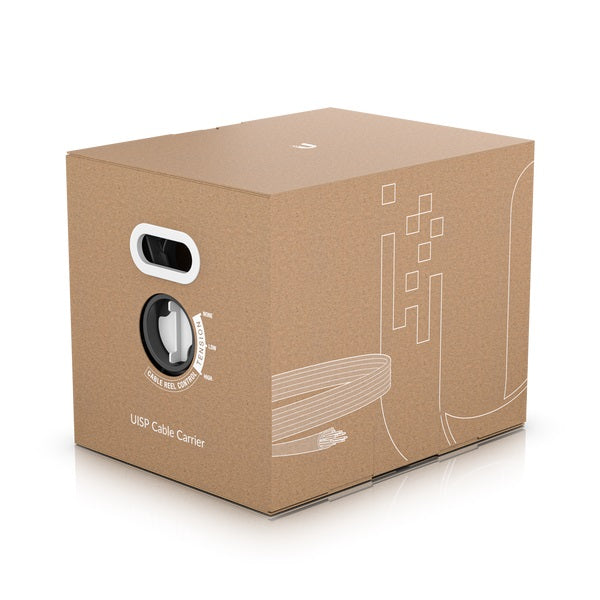

Ubiquiti UISP Cable Carrier 305m Cat5e Outdoor Shielded Ethernet Cable Roll

Ubiquiti UISP Cable Carrier 305m Cat5e Outdoor Shielded Ethernet Cable Roll

UISP-CABLE-CARRIER

$462.30

Tax included.

In stock, ready to be shipped
Select quantity
Description
Ubiquiti UISP Cable Carrier Outdoor Shielded Ethernet Cable (UISP-Cable-Carrier)
The Ubiquiti UISP-Cable-Carrier is a Category 5e cable that delivers multilayered elemental protection with a primary braid shield and a weatherproof jacket that prevents damage from rain, snow, and other harsh climatic conditions. The cable is also equipped with a drain wire and internal foil shielding to protect it from electrostatic discharge (ESD), and its anti-crosstalk divider preserves signal integrity, allowing the cable to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.

Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage.

Note: This is the New TOUGHCable Carrier (TC-Carrier) replacement.
Features
  • 1,000 ft (305 m) Category 5e cable
  • 24 AWG solid copper conductor pairings
  • Insulated, weatherproof cable jacket
  • Internal braid and foil shielding
  • Drain wire that protects against ESD damage
  • Anti-crosstalk divider
Details
Manufacturer's Product Code UISP-CABLE-CARRIER
Box Dimensions 330 x 425 x 340 mm (13 x 16.7 x 13.4")
Box Weight 16 kg (35.3 lb)
Cable Lenght 305m (1000ft)
Cable Color Black
Cable Type CAT5e, Shielded
Ethernet support Up to 1 Gbps
Conductor Wire Gauge 24 AWG
Conductor Solid Bare Copper
Conductor Diameter 0.500 ± 0.005 mm
Insulation Type Solid Polyethylene
Insulation Thickness Avg. 0.295 mm; Min. 0.29 mm
Insulation Diameter 1.16 ± 0.02 mm
Separation (Polyester Wrapping) Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk Divider LDPE: 4.2*0.3 mm
Cable Shield (Aluminum Foil) Thick: 0.060 mm, Extent: 20 mm
ESD Drain Wire 0.4 TC
Rip Cord Yes
Secondary Cable Shield (Braid) 16*8*0.16AA Density: 95%
Jacket Material Polyethylene
Jacket Thickness Avg. 0.52 mm; Min. 0.46 mm
Jacket Outer Diameter 6.8 ± 0.30 mm
Jacket Color Black
Storage Temperature -30 to 75° C (-22 to 167° F)
Installation Temperature -20 to 60° C (-4 to 140° F)
Operation Temperature -40 to 80° C (-40 to 176° F)
Standards ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2)
