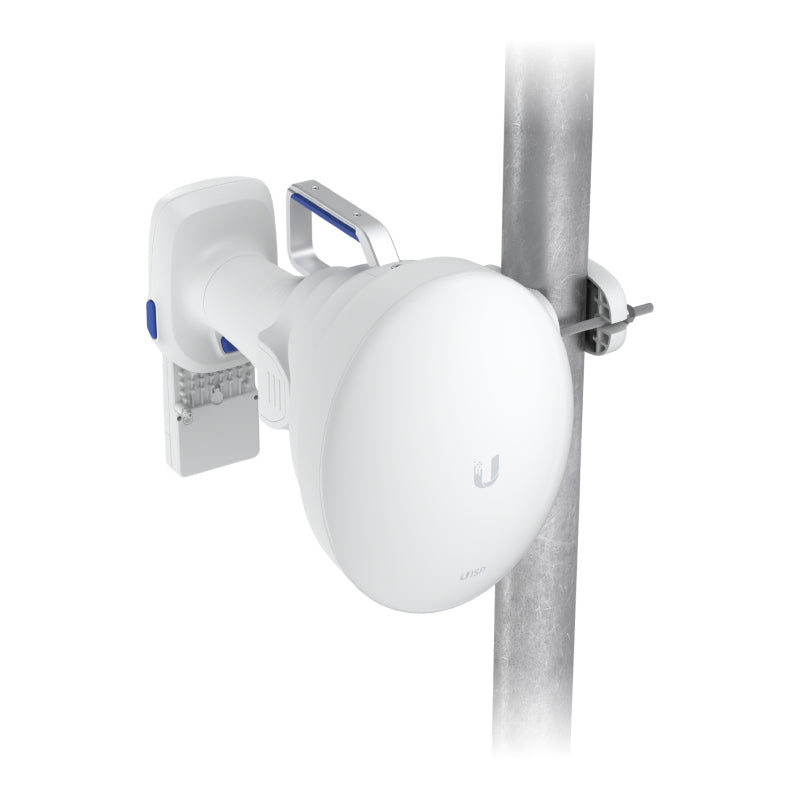

Name: Ubiquiti UISP 5-7GHz 19.5dBi 45deg High-isolation, point-to-multipoint (PtMP) Horn Antenna
Brand: Ubiquiti
SKU: UISP-Horn
Price: 473.8 NZD
Availability: InStock

Ubiquiti UISP 5-7GHz 19.5dBi 45deg High-isolation, point-to-multipoint (PtMP) Horn Antenna

UISP-Horn

18% OFF

$473.80 $583.40

Tax included.

12 items available

Select quantity

Description

Ubiquiti UISP 5-7GHz 19.5dBi 45deg High-isolation, point-to-multipoint (PtMP) Horn Antenna

Description

Ubiquiti UISP 5-7GHz 19.5dBi 45deg High-isolation, point-to-multipoint (PtMP) Horn Antenna

Ubiquiti UISP-Horn is a high-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

Designed to operated with the airFiber 5XHD PTP LTU Backhaul Radio, LTU-Rocket 5GHz PTMP Connectorised Access Point or Rocket AC PRISM Gen2 Access Point.

Features

High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
15+ km PtMP link range
Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing
Pole-mountable antenna with a metal carrying handle
Compatible with AF 5XHD, RP 5AC, LTU Rocket

Details
Manufacturer's Product Code	UISP-Horn
Frequency Range	5.15 to 6.875 GHz
Gain	19.5dBi
Connectors	WaveGuide connector with Snap on RP-SMA Adaptor
Beamwidth	Azimuth: 30° (6 dB), Elevation: 25° (6 dB)
Dimensions	282 x 224 x 380 mm
Weight	Device: 3.06 kg, Mount: 925 g
Enclosure Materials	UV stabilized polycarbonate, aluminum alloy
Wind Survivability	Up to 200 km/h
Wind Loading	90 N at 200 km/h
Mounting	Alignment mounting kit (included)
Mechanical adjustment	±20° elevation, ±25° azimuth
Pole compatibility	Ø25 to 70 mm
Weatherproofing	IPX6
Electrical Downtilt	0°
Maximum VSWR	2:1
Polarization	Dual-linear
Cross-pol Isolation	20 dB
Front-to-Back Ratio	Typical: 45 to 50 dB, Min: 40 dB

support

Details
Pole Mount	Yes
Warranty	Standard 12 Month RTB
