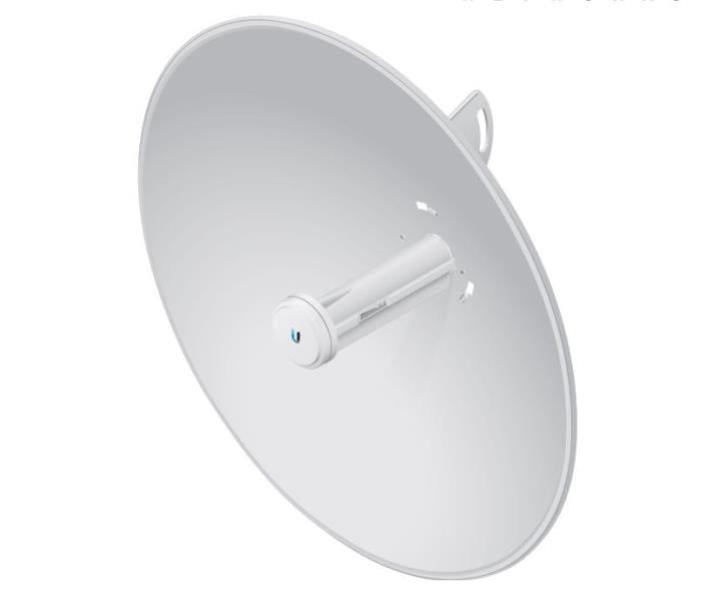

Name: Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n with 18dBi Antenna
Brand: Ubiquiti
SKU: PBE-M2-400
Price: 200.10 NZD
Availability: InStock

Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n with 18dBi Antenna

PBE-M2-400

12% OFF

$200.10 $229.30

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n Radio with 18dBi Antenna

Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n 18dBi Dish Antenna. The Ubiquiti PowerBeam M2 with 18dBi antenna has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The PowerBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. Great for remote point to point wireless applications or as a point to multipoint WISP CPE.

Features

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
All-in-one design The PowerBeam provides both the radio and antenna in the smallest possible footprint.
Quick and easy installation.
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
Ubiquiti's Antenna R&D team applied their years of experience in cellular basestation antenna design in developing the revolutionary airMAX
See NBE-RAD-400 for a compatible radome cover for this product

Details
Manufacturer's Code	PBE-M2-400
Chipset	Atheros MIPS 74Kc, 560 MHz
Output Power	28dBm
Operating Modes	AP/Station/WDS
Frequency Range	2405 - 2475 MHz
Interfaces	(1) 10/100 Ethernet Port
Wireless standards	802.11b/g/n
Temperature Range	-40 to 70° C
PoE In	Yes, 12-24V
Operating System	Ubiquiti airOS V
Antenna gain dBi	18dBi
Max Power consumption	6W
Number of chains	2
Polarisation	Dual Linear
Wind Loading	200.2 N @ 200 km/h (45 lbf @ 125 mph)
Pole Diameter	32-56mm
Dimensions	420 x 420 x 289 mm
IP Rating	IP54
Typical Range (Based on PtP)	15km+

support

Details
Power Supply	3 Pin Clover Lead
Power Injector	24V POE Injector
Pole Mount	Bracket and U-Bolt

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
