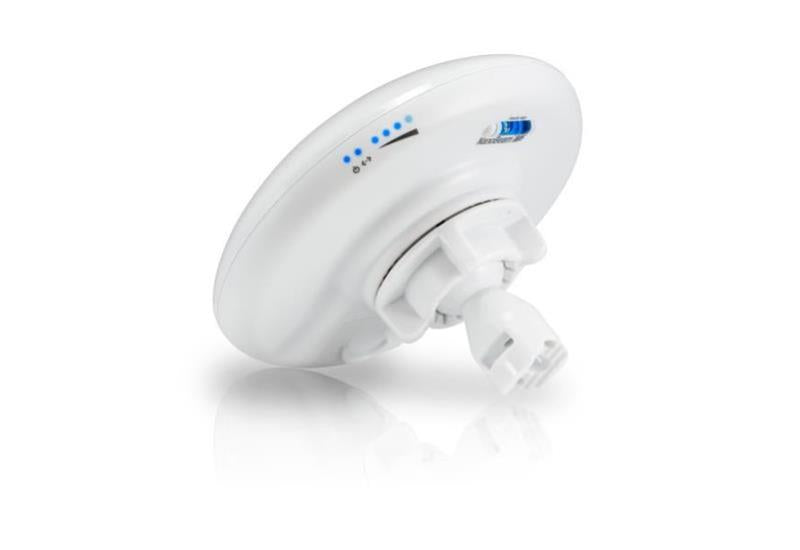

Name: Ubiquiti NanoBeam NBE-M5-16 400mW 802.11a/n 16dBi Antenna
Brand: Ubiquiti
SKU: NBE-M5-16
Price: 164.45 NZD
Availability: InStock

Ubiquiti NanoBeam NBE-M5-16 400mW 802.11a/n 16dBi Antenna

NBE-M5-16

71% OFF

$164.45 $587.20

Tax included.

6 items available

Select quantity

Description

Ubiquiti NanoBeam NBE-M5-16 400mW 802.11a/n 16dBi Antenna

Ubiquiti NanoBeam NBE-M5-16 400mW 802.11a/n 16dBi Antenna. The Ubiquiti NanoBeam M5 16dBi has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design.

Features

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint.
Quick and easy installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
Convenient alignment The NanoBeam pivots on its ball joint for easy aiming.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
Ubiquiti's Antenna R&D team applied their years of experience in cellular basestation antenna design in developing the revolutionary airMAX.

Details
Manufacturer's Code	NBE-M5-16
Chipset	Atheros MIPS 74Kc, 560 MHz
Output Power	26dBm
Operating Modes	AP/Station/WDS
Frequency Range	5170 - 5875 MHz
Interfaces	(1) 10/100 Ethernet Port
Wireless standards	802.11a/n
Temperature Range	-40 to 70° C
PoE In	Yes, 12-24V
Operating System	Ubiquiti airOS V
Antenna gain dBi	16dBi
Max Power consumption	6W
Number of chains	2
Polarisation	Dual Linear
Wind Loading	21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
Pole Diameter	30-50mm
Dimensions	140 x 140 x 54 mm
IP Rating	IP54
Typical Range (Based on PtP)	5km+

support

Details
Power Supply	3 Pin Clover Lead
Power Injector	24V POE Injector
Pole Mount	Yes, Hose Clamp or Cable Tie
Wall Mount	Not Included, Sold Separately

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
HeadingUbiquiti NanoBeam NBE-M5-16 400mW 802.11a/n 16dBi Antenna

Description

Ubiquiti NanoBeam NBE-M5-16 400mW 802.11a/n 16dBi Antenna

Features

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint.
Quick and easy installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
Convenient alignment The NanoBeam pivots on its ball joint for easy aiming.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
Ubiquiti's Antenna R&D team applied their years of experience in cellular basestation antenna design in developing the revolutionary airMAX.

Details
Manufacturer's Code	NBE-M5-16
Chipset	Atheros MIPS 74Kc, 560 MHz
Output Power	26dBm
Operating Modes	AP/Station/WDS
Frequency Range	5170 - 5875 MHz
Interfaces	(1) 10/100 Ethernet Port
Wireless standards	802.11a/n
Temperature Range	-40 to 70° C
PoE In	Yes, 12-24V
Operating System	Ubiquiti airOS V
Antenna gain dBi	16dBi
Max Power consumption	6W
Number of chains	2
Polarisation	Dual Linear
Wind Loading	21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
Pole Diameter	30-50mm
Dimensions	140 x 140 x 54 mm
IP Rating	IP54
Typical Range (Based on PtP)	5km+
