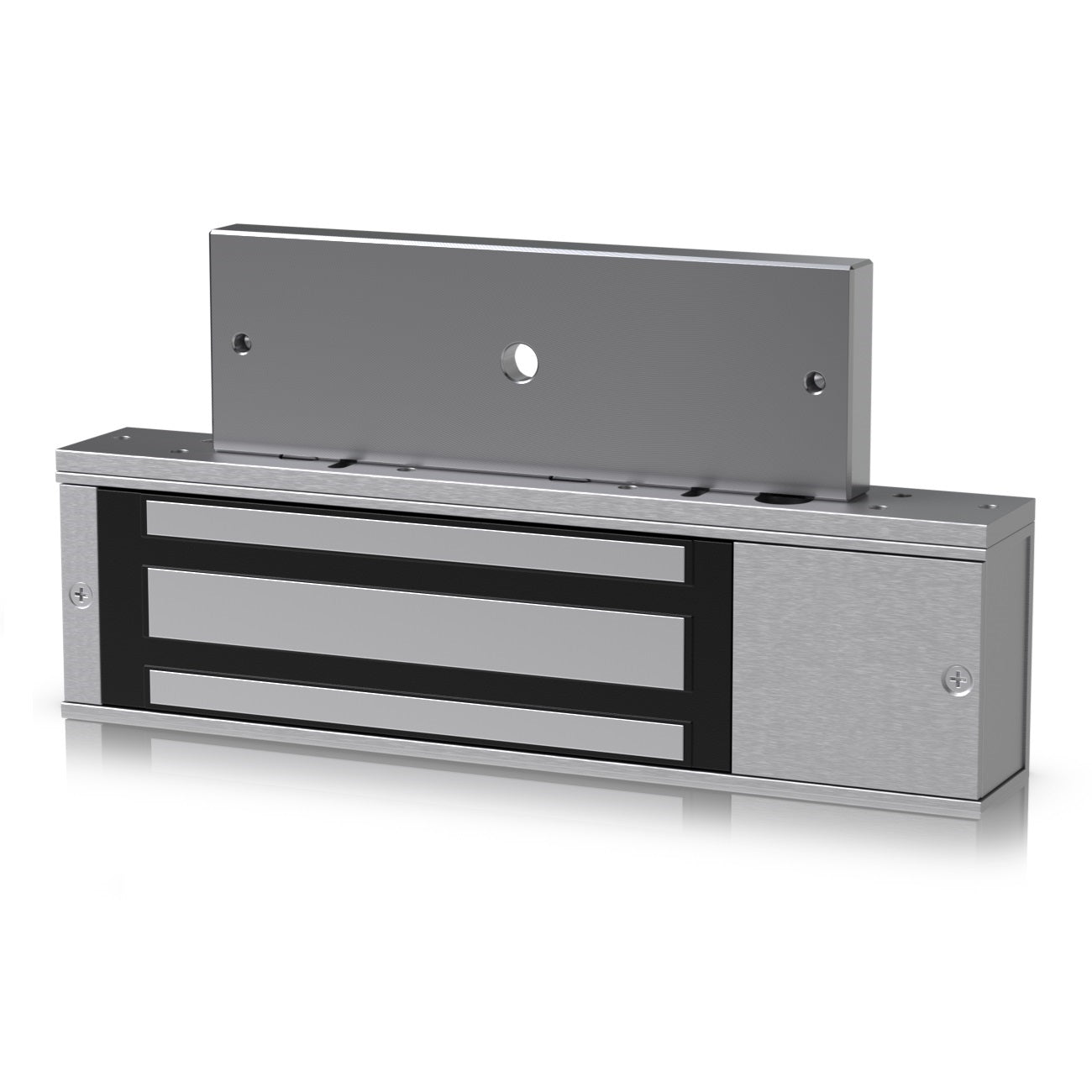

Name: Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors
Brand: Ubiquiti
SKU: UA-Lock-Magnetic-540kg
Price: 512.90 NZD
Availability: InStock

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors

UA-Lock-Magnetic-540kg

18% OFF

$512.90 $630.00

Tax included.

4 items available

Select quantity

Description

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).

Features

Holds up to 540 kg (1,200 lb)
Can be installed on a wide variety of door types* excluding full glass

Details
Product code	UA-Lock-Magnetic-540kg
Dimensions	Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6"), Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2"), Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
Weight	Lock body: 2.9 kg (6.4 lb), Install plate: 145 g (0.3 lb), Armature: 1.4 kg (3.1 lb)
Enclosure material	Device/brackets: aluminum, Armature: steel
Voltage	12V DC
Current power	500mA ±10%
Wiring connection	Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub), Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub), DPS/+ (DPS+ on UA-Hub), DPS/-(DPS-onUA-Hub)
Lock type	Fail safe lock, Single door
Holding force	540 kg (1,200 lb)
LED	Green: unlocked, Red: locked
Suitability	Wood/metal door
Mounting accessories	L bracket: door thickness up to 42 mm (up to 1.7"), outward opening door, Z bracket: used with L bracket for inward opening door
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	FCC, IC, CE

support

Details
Included	UA-Lock-Magnetic, L bracket, Z bracket,
