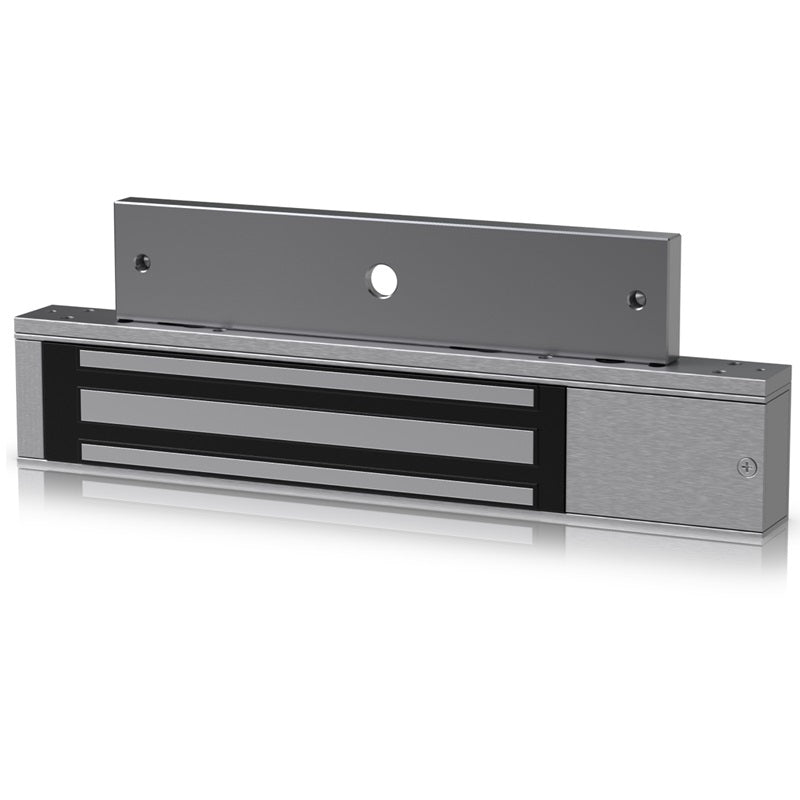

Name: Ubiquiti Magnetic Lock UA-Lock-Magnetic-270kg fail-safe Magnetic Lock for Inswing and Outswing Doors
Brand: Ubiquiti
SKU: UA-Lock-Magnetic-270kg
Price: 389.85 NZD
Availability: InStock

Ubiquiti Magnetic Lock UA-Lock-Magnetic-270kg fail-safe Magnetic Lock for Inswing and Outswing Doors

UA-Lock-Magnetic-270kg

17% OFF

$389.85 $472.50

Tax included.

7 items available

Select quantity

Description

Ubiquiti Magnetic Lock UA-Lock-Magnetic-270kg fail-safe Magnetic Lock for Inswing and Outswing Doors

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-270kg fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).

Features

Holds up to 270 kg (600 lb)
Can be installed on a wide variety of door types, including full Glass
Compatibility: UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub

Details
Product code	UA-Lock-Magnetic-270kg
Dimensions	Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ), Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ), Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")
Weight	Lock body: 1 kg (2.2 lb), Install plate: 70 g (0.15 lb), Armature: 600 g (1.3 lb)
Enclosure material	Device/brackets: aluminum, Armature: steel
Voltage	12V DC
Current power	800mA ±10%
Wiring connection	Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub), Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub), DPS/+ (DPS+ on UA-Hub), DPS/-(DPS-onUA-Hub)
Lock type	Fail safe lock, Single door
Holding force	270 kg (600 lb)
LED	Green: unlocked, Red: locked
Suitability	wooden/metal/glass door
Mounting accessories	L bracket : door thickness up to 42 mm (up to 1.7"), outward opening door, Z bracket: used with L bracket for inward opening door, U bracket: used with glass door
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	FCC, IC, CE
