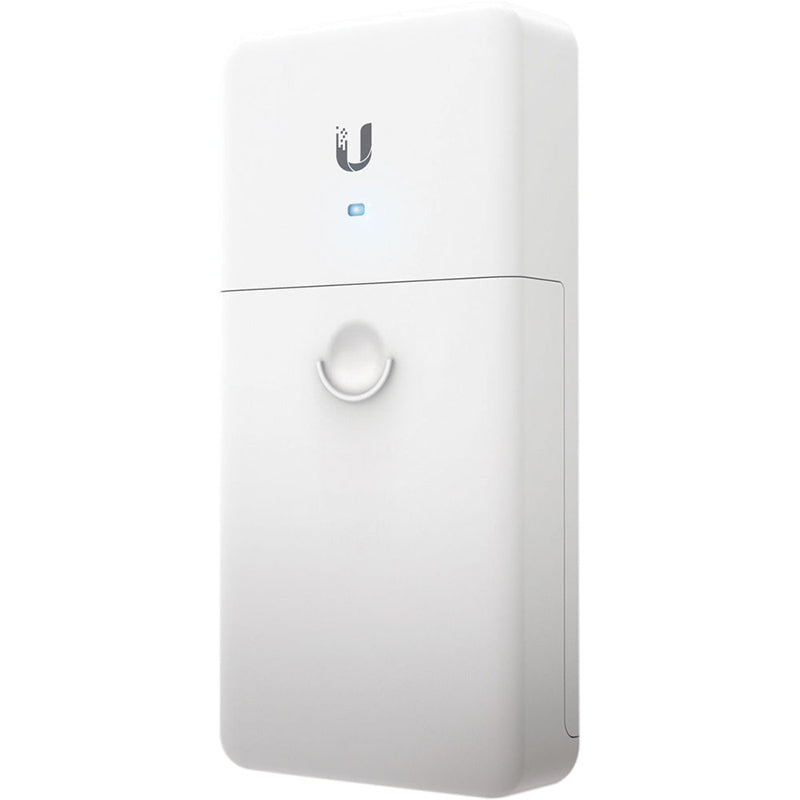

Ubiquiti FiberPoE Optical Data Transport for Outdoor PoE Devices

Ubiquiti FiberPoE Optical Data Transport for Outdoor PoE Devices

F-POE-G2

$74.75

Tax included.

In stock, ready to be shipped
Select quantity
Description
Ubiquiti FiberPoE Optical Data Transport for Outdoor PoE Devices
Overcome PoE limitations with the FiberPoE™. The FiberPoE F-POE-G2 is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE also provide significant EMI and ESD protection over typical PoE installations. PoE is ideal for indoor or short-run installations. However, for outdoor, long-distance installations, PoE becomes vulnerable to EMI and is limited to 100 meters with correlated power loss. With the FiberPoE, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs. The FiberPoE provides Gigabit bi-directional data transport between twisted-pair Ethernet cable and fiber optic cable, and injects DC power to the Ethernet cable for passive PoE. Use one FiberPoE device as an Fiber-to-Ethernet Converter, or a pair of FiberPoE devices to create a Fiber Bridge. Using fiber optic cable for data transport significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI). Data integrity is also sustained in runs beyond 100 meters, the limit of Ethernet over twisted-pair cable.
Features
  • The FiberPoE supports a 1G SFP module and 24V or 50V power from a DC power cable or PoE cable.
Details
Manufacturer's Product Code F-POE-G2
Dimensions 196.4 x 93.5 x 32.4 mm ( 7.73 x 3.68 x 1.28")
Weight 288 g (10.2 oz)
Enclosure White Polycarbonate
Interface Connections (1) 1 Gbps SFP Port, (1) DC Terminal Block, (1) DC RJ45 Port DC, Injection, (1) 1000 Mbps Ethernet PoE Port (10/100 Mbps Ethernet not supported)
Typical Power Consumption 1.5W
Power Method DC Terminal Block, 2-Wire, 24VDC or 50VDC, DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough, PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough
PoE Output PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE
DC Output Terminal Block, 2-Wire (24VDC or 50VDC)
Input DC Voltage 16 to 57V
Surge Protection Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port
LED White: Power On, Blue: Connected, Blue (Flashing): Activity
Operating Temperature -40 to 60° C (-40 to 140° F) ,May be further restricted by the operating temperature range of the SFP module being used.
Operating Humidity 10 to 95% Noncondensing
ESD/EMP Protection ± 24kV Contact / Air for Ethernet
Certifications CE, FCC, IC
Details
Included 1 x FiberPoE Gen 2, Self-Tapping Screws, 2 x Metal Straps
Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

  • Ubiquiti

  • HeadingUbiquiti FiberPoE Optical Data Transport for Outdoor PoE Devices

Description
Ubiquiti FiberPoE Optical Data Transport for Outdoor PoE Devices
Overcome PoE limitations with the FiberPoE™. The FiberPoE F-POE-G2 is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE also provide significant EMI and ESD protection over typical PoE installations. PoE is ideal for indoor or short-run installations. However, for outdoor, long-distance installations, PoE becomes vulnerable to EMI and is limited to 100 meters with correlated power loss. With the FiberPoE, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs. The FiberPoE provides Gigabit bi-directional data transport between twisted-pair Ethernet cable and fiber optic cable, and injects DC power to the Ethernet cable for passive PoE. Use one FiberPoE device as an Fiber-to-Ethernet Converter, or a pair of FiberPoE devices to create a Fiber Bridge. Using fiber optic cable for data transport significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI). Data integrity is also sustained in runs beyond 100 meters, the limit of Ethernet over twisted-pair cable.
Features
  • The FiberPoE supports a 1G SFP module and 24V or 50V power from a DC power cable or PoE cable.
Details
Manufacturer's Product Code F-POE-G2
Dimensions 196.4 x 93.5 x 32.4 mm ( 7.73 x 3.68 x 1.28")
Weight 288 g (10.2 oz)
Enclosure White Polycarbonate
Interface Connections (1) 1 Gbps SFP Port, (1) DC Terminal Block, (1) DC RJ45 Port DC, Injection, (1) 1000 Mbps Ethernet PoE Port (10/100 Mbps Ethernet not supported)
Typical Power Consumption 1.5W
Power Method DC Terminal Block, 2-Wire, 24VDC or 50VDC, DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough, PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough
PoE Output PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE
DC Output Terminal Block, 2-Wire (24VDC or 50VDC)
Input DC Voltage 16 to 57V
Surge Protection Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port
LED White: Power On, Blue: Connected, Blue (Flashing): Activity
Operating Temperature -40 to 60° C (-40 to 140° F) ,May be further restricted by the operating temperature range of the SFP module being used.
Operating Humidity 10 to 95% Noncondensing
ESD/EMP Protection ± 24kV Contact / Air for Ethernet
Certifications CE, FCC, IC
Details
Included 1 x FiberPoE Gen 2, Self-Tapping Screws, 2 x Metal Straps
Brand

Ubiquiti

Warranty

1 Year
