Name: Ubiquiti airMAX 5GHz AC 21dBi 60 Degree Dual Polarised Sector Antenna
Brand: Ubiquiti
SKU: AM-5AC21-60
Price: 472.65 NZD
Availability: InStock

Ubiquiti airMAX 5GHz AC 21dBi 60 Degree Dual Polarised Sector Antenna

AM-5AC21-60

17% OFF

$472.65 $573.30

Tax included.

13 items available

Select quantity

Description

Ubiquiti airMAX 5GHz AC 21dBi 60 Degree Dual Polarised Sector Antenna AM-5AC21-60

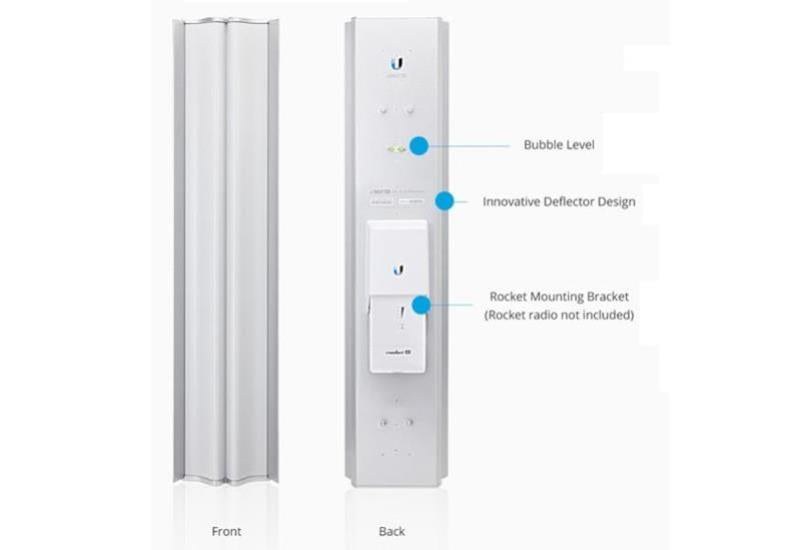

Ubiquiti airMAX 5GHz AC 60 Degree Dual Polarised Sector Antenna. As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Features

Breakthrough Performance The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments.
Innovative Deflector Design Together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
Improved Signal-to-Noise Ratio (S/N or SNR) Allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).
Innovative Design the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

Details
Manufacturer's Product Code	AM-5AC21-60
Frequency Range	5.10 - 5.85 GHz
Gain	21 dBi
Polarisation	Dual-Linear
Cross Polarisation	25 dB Min.
Max VSWR	1.5:1
Vertical Beamwidth	60° (6 dBi)
Horizontal Beamwidth	60° (6 dBi)
Connector Type	(2) RP-SMA Female
Dimensions	750 x 173 x 78 mm
Wind Loading	200km
Pole Mount Diameter	40 - 80mm

support

Details
Pole Mount	Yes, Included
Warranty	Standard 12 Month RTB
