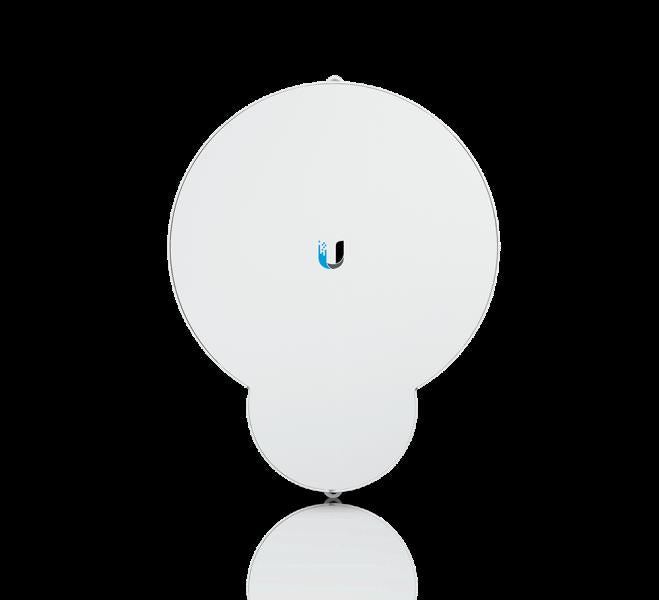

Name: Ubiquiti AirFiber 24GHz 1Gbps Full Duplex Wireless Backhaul Point to Point Radio
Brand: Ubiquiti
SKU: AF-24-HD
Price: 7346.20 NZD
Availability: InStock

Ubiquiti AirFiber 24GHz 1Gbps Full Duplex Wireless Backhaul Point to Point Radio

AF-24-HD

$7,346.20

Tax included.

6 items available

Select quantity

Description

Ubiquiti AirFiber 24GHz 1Gbps Full Duplex Wireless Backhaul Point to Point Radio

The Ubiquiti airFiber 24 HD, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks that delivers 1Gbps Full Duplex TCP throughput. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. airFiber operates in worldwide, license-free, 24 or 5 GHz frequencies. Anyone around the world can purchase and operate airFiber without any special permits, paperwork, or added licensing costs. Users are free to locate, deploy, and operate airFiber practically anywhere they choose (subject to local country regulations).

Features

Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
The airFiber24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
The airFiber24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
The airFiber24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber24HD almost anywhere they choose (subject to local country regulations).

Details
Manufacturer's Code	AF-24HD
Output Power	~33 dBm (FCC/IC), ~20 dBm (CE)
Operating Modes	Master / Slave
Frequency Range	24.05 – 24.25 GHz
Interfaces	(1) 10/100/1000 Ethernet Port, Configuration Port (1) 10/100 Ethernet Port, Auxiliary Port (1) RJ-12, Alignment Tone Port
Temperature Range	-40 to 55° C (-40 to 131° F)
PoE In	Passive Power over Ethernet (42-58VDC)
Antenna gain dBi	TX Gain - 33dBi, RX Gain - 40dBi
Max Power consumption	50W
Polarisation	Dual-Slant Polarization
Wind Loading	770 N @ 200 km/hr (170 lbf @ 125 mph)
Pole Diameter	30-50mm
Dimensions	593 x 768 x 370 mm (23.35 x 30.24 x 14.57")
IP Rating	IP54
Typical Range (Based on PtP)	Up to 20km+
