Name: Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect
Brand: Ubiquiti
SKU: UISP-Dish
Price: 441.60 NZD
Availability: InStock

Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect

UISP-Dish

$441.60

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect

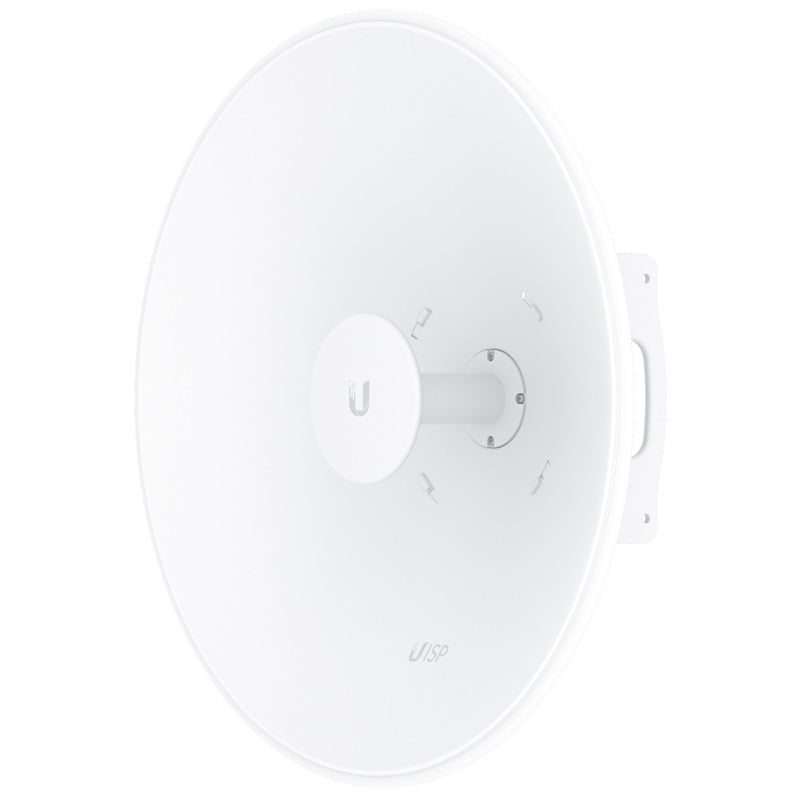

Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect. UISP-Dish is a point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

Designed to operated with the airFiber 5XHD PTP LTU Backhaul Radio or Rocket AC PRISM Gen2 Access Point

Features

Frequency range: 5.15 - 6.875 GHz
30+ km PtP link range
Precision mounting bracket for easy installation and alignment
Compatible with AF 5XHD and RP 5AC

Details
Manufacturer's Product Code	UISP-Dish
Frequency Range	5.15 to 6.875 GHz
Gain	30dBi
Beamwidth	Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB), Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Dimensions	Ø 650 x 200 mm
Weight	Device: 4.54 kg, Mount: 3.1 kg
Enclosure Materials	Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind Survivability	Up to 200 km/h
Wind Loading	860 N at 200 km/h
Mounting	Alignment mounting kit (included)
Mechanical adjustment	±15° elevation
Pole compatibility	Ø40 to 90mm
Weatherproofing	IPX6
Electrical Downtilt	0°
Maximum VSWR	2:1
Polarization	Dual-linear
Cross-pol Isolation	20 dB
