Name: Ubiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna
Brand: Ubiquiti
SKU: AF-5G34-S45
Price: 790.05 NZD
Availability: InStock

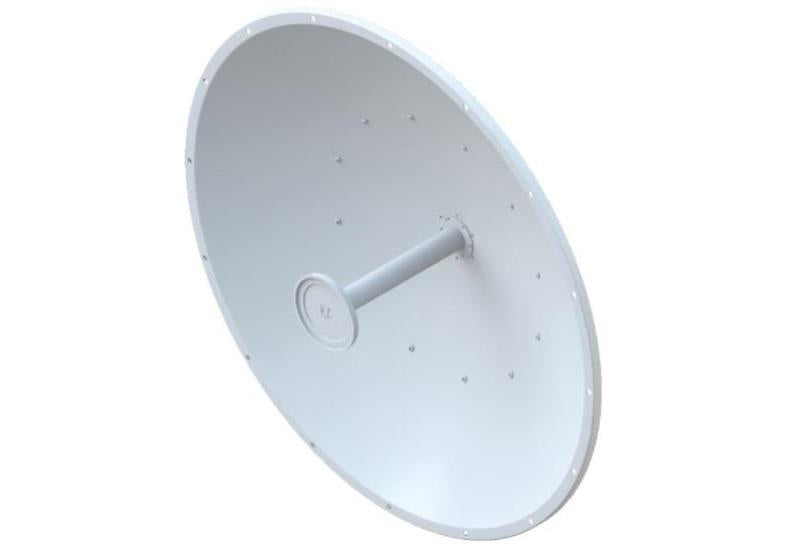

Ubiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna

AF-5G34-S45

16% OFF

$790.05 $945.00

Tax included.

5 items available

Select quantity

Description

Ubiquiti 5GHz airFiber High Gain 34dBi Dual Slant Dish Antenna

Ubiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna. The AF-5X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). It is compatible with multiple Ubiquiti antennas offering gain of 23 to 34 dBi. The compact form factor of the AF-5X allows it to fit into the radio mount of Ubiquiti antennas, so installation requires no special . The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the AF-5X.

The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

Details
Manufacturer's Product Code	AF-5G34-S45
Dimensions	1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57")
Weight	13.5 kg (29.76 lb) (Mount Included)
Frequency	5.1 - 5.8 GHz
Gain	34 dBi
Max. VSWR	1.4:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	1,779 N @ 200 km/h (400 lb @ 125 mph)
Polarization	Dual Linear
F/B Ratio	42 dB
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included

support

Details
Pole Mount Kit	Included
Pigtails	2 x 150mm RP-SMA to RP-SMA coax cable included

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

Ubiquiti
HeadingUbiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna

Description

Ubiquiti 5GHz airFiber High Gain 34dBi Dual Slant Dish Antenna

Details
Manufacturer's Product Code	AF-5G34-S45
Dimensions	1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57")
Weight	13.5 kg (29.76 lb) (Mount Included)
Frequency	5.1 - 5.8 GHz
Gain	34 dBi
Max. VSWR	1.4:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	1,779 N @ 200 km/h (400 lb @ 125 mph)
Polarization	Dual Linear
F/B Ratio	42 dB
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included
