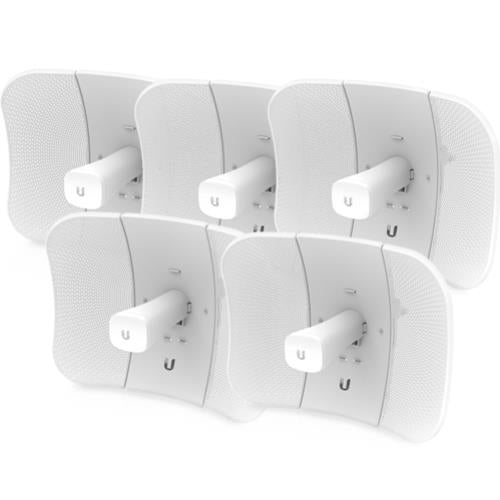

Ubiquiti 5GHz 23dBi LiteBeam AC Gen2 23dBi Antenna for PtP Bridge and WISP CPE - 5 Pack

Ubiquiti 5GHz 23dBi LiteBeam AC Gen2 23dBi Antenna for PtP Bridge and WISP CPE - 5 Pack

LBE-5AC-Gen2-5

72% OFF
$808.45 $2,976.10

Tax included.

10 items available
Select quantity
Description
Ubiquiti 5GHz airMAX AC LiteBeam Gen2 Radio 450Mbps with 23dBi Antenna for PtP Bridge and WISP CPE, 5 Pack
Ubiquiti 5 Pack 5GHz airMAX MIMO 2x2 AC LiteBeam Gen2 Radio 450Mbps with 23dBi Antenna for PtP Bridge and WISP CPE. The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment. Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments. The LiteBeam 5AC Gen 2 also integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Features
  • Cost Effective 5 Pack designed for WISPs
  • New and Improved LiteBeam 5AC Gen 2 featuring dedicated Wi-Fi management using UMobile App for iOS and Android
  • airMagic Channel Selection Tool Comprehensive Array of Diagnostic , including RF Diagnostics and airView Spectrum Analyzer
  • airOS v8 is the revolutionary operating system for Ubiquiti® airMAX ac products.
Details
Manufacturer's Code LBE-5AC-GEN2-5-AU (5-Pack)
Operating Modes PtP / PtMP Modes
Frequency Range 2412 - 2462 MHz; 5150 - 5850 MHz
WLAN Chipset Atheros AR9340 v2, QCA988X v2; b/g/n 2.4GHz management, 5GHz a/n/ac
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz; PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Interfaces (1) 10/100/1000 Ethernet Port
PoE In Yes, 24V (included)
Operating System Ubiquiti airOS
Antenna gain dBi 23dBi
Max Power consumption 7W
Pole Diameter 30-50mm
Dimensions 358 x 271.95 x 272.5 mm
Details
Power Supply 3 Pin Clover Lead
Power Injector 24V POE Injector
Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)

Product Details

Specifications

  • Ubiquiti

  • HeadingUbiquiti 5GHz 23dBi LiteBeam AC Gen2 23dBi Antenna for PtP Bridge and WISP CPE - 5 Pack

Description
Ubiquiti 5GHz airMAX AC LiteBeam Gen2 Radio 450Mbps with 23dBi Antenna for PtP Bridge and WISP CPE, 5 Pack
Ubiquiti 5 Pack 5GHz airMAX MIMO 2x2 AC LiteBeam Gen2 Radio 450Mbps with 23dBi Antenna for PtP Bridge and WISP CPE. The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment. Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments. The LiteBeam 5AC Gen 2 also integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
