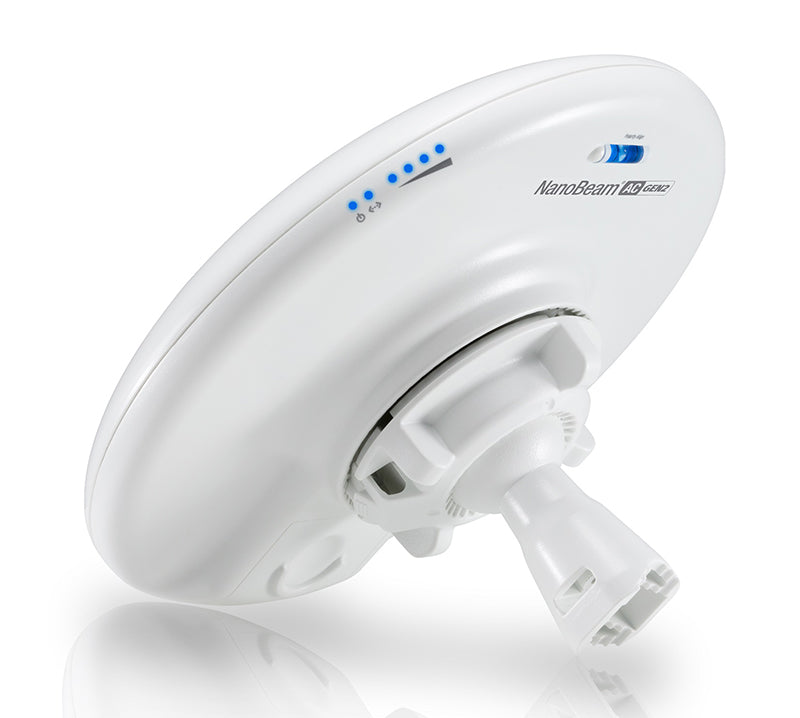

Ubiquiti 5GHz 19dBi NanoBeam AC Gen 2 Access Point/Bridge/CPE

Ubiquiti 5GHz 19dBi NanoBeam AC Gen 2 Access Point/Bridge/CPE

NBE-5AC-GEN2

20% OFF
$246.10 $308.70

Tax included.

In stock, ready to be shipped
Select quantity
Description
Ubiquiti 5GHz airMAX AC NanoBeam Gen2 Radio with speeds up to 450Mbps and 19dBi Antenna Built in
Ubiquiti 5GHz airMAX AC NanoBeam Gen2 Radio with speeds up to 450Mbps and 19dBi Antenna Built in. The NanoBeam NBE-5AC-GEN2 directs RF energy in a tighter beamwidth for reliable high speed Point to Point wireless linking. With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 5AC Gen 2 gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 5AC Gen 2 is versatile and cost-effective to deploy.
Features
  • Dual Ethernet with PoE Passthrough
  • New and Improved NanoBeam 5AC Gen 2 featuring dedicated Wi-Fi management using UMobile App for iOS and Android
  • airMagic Channel Selection Tool Comprehensive Array of Diagnostic , including RF Diagnostics and airView Spectrum Analyzer
  • airOS v8 is the revolutionary operating system for Ubiquiti airMAX ac products
  • Perfect PTP or CPE for PTMP wireless distribution
Details
Manufacturer's Code NBE-5AC-GEN2
Output Power 25dBm
Operating Modes PtP / PtMP Modes
Frequency Range 2412 - 2472 MHz; 5150 - 5875 MHz
Interfaces (2) 10/100/1000 Ethernet Port
PoE In Yes, 24V
Operating System Ubiquiti airOS
Antenna gain dBi 19dBi
Max Power consumption 8.5W
Pole Diameter 30-50mm
Dimensions 189 x 189 x 125 mm
Details
Power Supply 3 Pin Clover Lead
Power Injector 24V POE Injector
Pole Mount Included
Wall Mount Optional - Sold Separately
Window Mount Optional - Sold Separately
Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)
