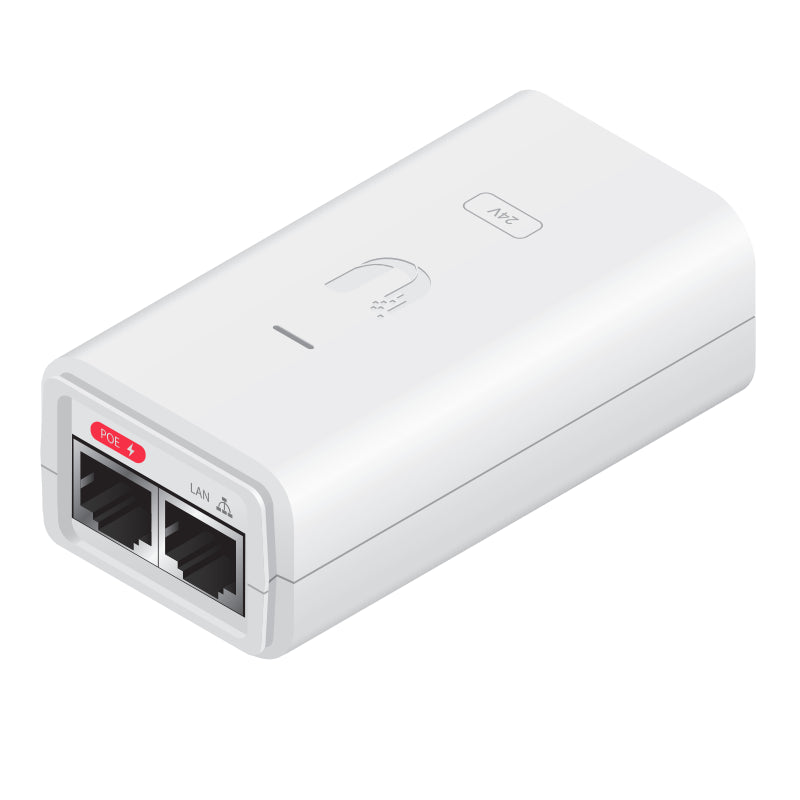

Name: Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector
Brand: Ubiquiti
SKU: POE-24-12W-G-WH
Price: 34.5 NZD
Availability: InStock

White Gigabit PoE power injector with two RJ45 ports, 24V DC input

Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector

POE-24-12W-G-WH

41% OFF

$34.50 $59.40

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector

Description

Ubiquiti 24V 12W White Gigabit PoE Injector

Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector. Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable, and TOUGHCable Connectors.

Features

Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground

Details
Manufacturer's Product Code	POE-24-12W-G-WH
Dimensions	87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight	99.4 g (3.51 oz)
Output Voltage	24VDC @ 0.5A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current	<30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency	75+%
Output Ripple	1% Max.
Switching Frequency	50 kHz
Line Regulation	? 3%
Load Regulation	? 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	No
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 ?s) Power
Peak Pulse Current	36A (10/1000 ?s) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL

Support
Go Wireless Help Centre Solutions

Details
Power Cord	3 Pin Clover Lead
Warranty	Standard 12 Month RTB
