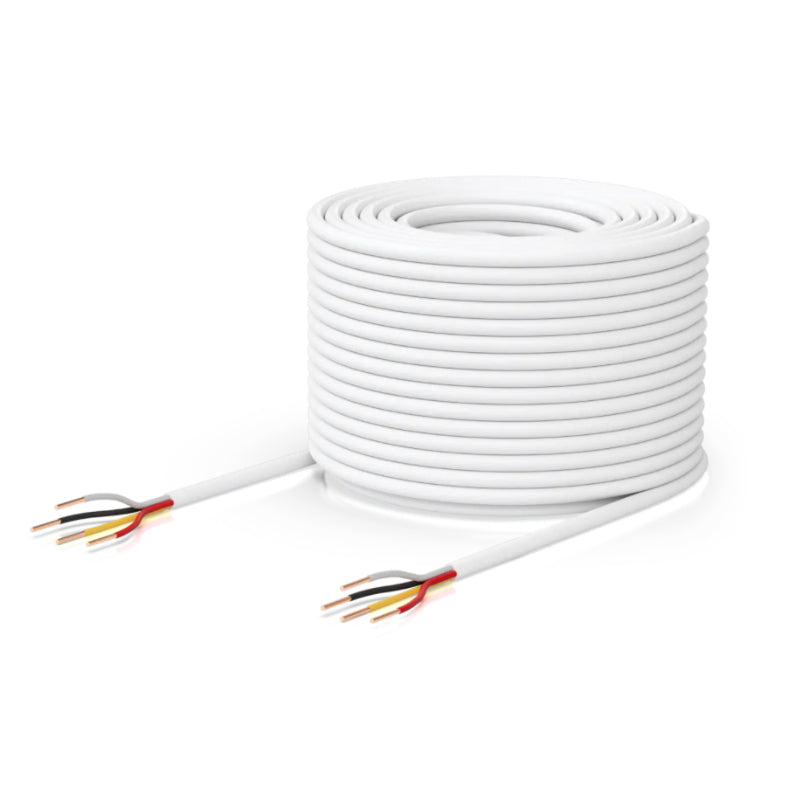

Name: Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub
Brand: Ubiquiti
SKU: UACC-Cable-DoorLockRelay-2P
Price: 404.80 NZD
Availability: InStock

Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

UACC-Cable-DoorLockRelay-2P

$404.80

Tax included.

9 items available

Select quantity

Description

Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock and door position sensor to an Access Hub

Features

Plenum-Rated
(2) 18 AWG conductors for an electric/magnetic lock
(2) 22 AWG conductors for a door position sensor

Details
Product code	UACC-Cable-DoorLockRelay-2P
Weight	5.6kg
Cable Length	152.4m
Jacket OD	4.5mm
Jacket Material	Thermoplastic Elastomer (TPE)
Jacket Color	White
Conductor Wire Gauge	18/22 AWG
Insulation Material	Semi-rigid polyvinyl chloride (SR-PVC)
Insulation Color	Black/red (18AWG), amber/white (22AWG)
Number of Conductors	4
Conductor Material	Solid Bare Copper
Max Pull Tension	24.2 kgf
Min Bend Radius	56mm
Conductor DCR	23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
Voltage	36V DC
Flame Rating	VW-1
Current Rating	2A for 500 ft length (18 AWG), 1A for 500 ft (22 AWG)
Storage Temperature	-45 to 65° C
Operating Temperature	-45 to 65° C
