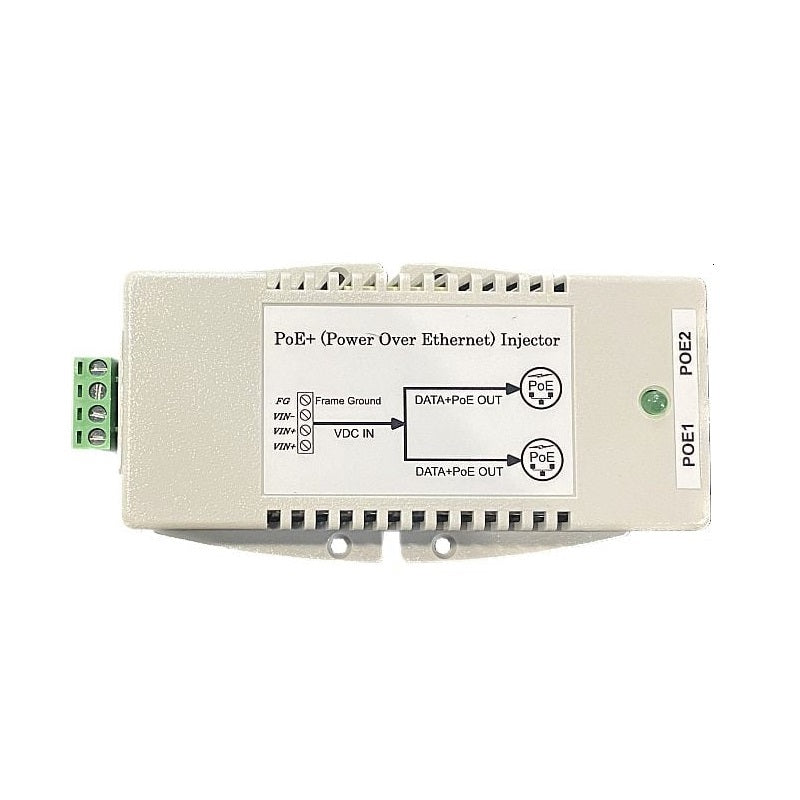

Name: Tycon Power TP-DC-1248GDx2-HP 10-15VDC Input, Dual Gigabit 56V 802.3at Output, 42W
Brand: Tycon Power
SKU: TP-DC-1248GDx2-HP
Price: 372.60 NZD
Availability: InStock

Tycon Power TP-DC-1248GDx2-HP 10-15VDC Input, Dual Gigabit 56V 802.3at Output, 42W

TP-DC-1248GDx2-HP

$372.60

Tax included.

4 items available

Select quantity

Description

Tycon Power TP-DC-1248GDx2-HP 10-15VDC Input, Dual Gigabit 56V 802.3at Output, 42W

The Tycon Power TP-DC-1248GDX2-HP is a unique high power PoE injector with Dual 802.3af/at Gigabit compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the devices is handled by the injector so no PoE switch is required. Ideal for remote repeater sites.

This model runs on 12VDC. The total combined output is up to 42W.

They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.

Features

Input Voltage 12VDC
Dual 802.3af/at outputs
High Power Output to 42W
Surge Protected to 15kV
Dual DC Inputs for Connecting 2 Power Sources
10/100/1000 Data Compatibility, Shielded Connectors
Short Circuit, Over Current and Reverse/Over Voltage Protection
Industrial Temperature Range, DIN Rail Mountable

Details
Manufacturer's Product Code	TP-DC-1248GDx2-HP
Input Voltage	+/- 10VDC to 16VDC
Input Connector	Screw Type Compression Wire Terminal (12 AWG Max)
POE Specification	Active PoE 802.3af/at (Mode B, 2 Pair)
Output Voltage (+/-2.5%)	56VDC
Ethernet Connectors	RJ45 (Shielded) 10/100 & Gigabit Compatible
Output Current (max)	0.38A X 2
Output Power (total)	42W
Self-Consumption Power	2W
Efficiency (min)	80%
Line Regulation, Ripple, Noise	1%
Load Regulation	5%
Surge Protection	IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20?s)
Operating Temperature	-40 to +70°C (-40 to +158°F)
Operating Humidity (RH)	5% - 90%
Storage Temperature	-40 to +80°C (-40 to +176°F)
Dimensions (LxWxH)	125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight	255g (9oz)

support

Details
Included	DC Input Connector

Warranty

3 Years
