Name: Tycon Power Systems TP-POE++10G 56V 60W 4 pair PoE++ 10Gbps Ethernet Injector
Brand: Tycon Power
SKU: TP-POE-PL-PL-10G
Price: 113.85 NZD
Availability: InStock

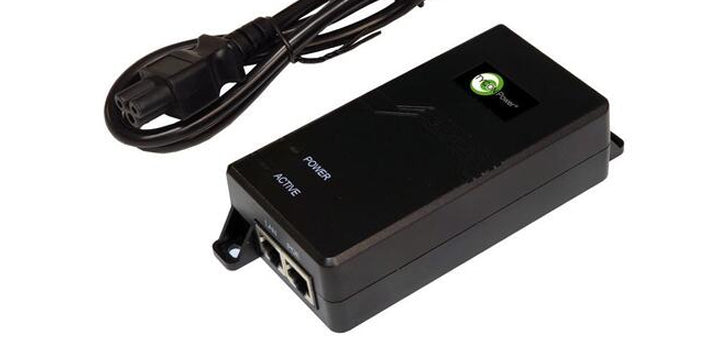

Black PoE Ethernet injector with mounting bracket, power cable, and green status LED

Tycon Power Systems TP-POE++10G 56V 60W 4 pair PoE++ 10Gbps Ethernet Injector

TP-POE-PL-PL-10G

$113.85

Tax included.

20 items available

Select quantity

Description

Tycon Power Systems TP-POE++10G 56V 60W 4pair PoE++ Injector

Tycon Power Systems TP-POE++10G 56V 60W 4 pair PoE++ 10Gbps Ethernet Injector. The TP-POE++10G is a compact 10/100/1000/10000MB (10G) desktop PoE++ inserter with 120/240VAC auto-ranging input. The inserter has an output that is 4 pair: Mode A (1,2+ 3,6-) and Mode B (4,5+ 7,8-) 802.3at PoE++ at up to 56W.

Features

10/100/1000/10000Mb Data Rate
CAT6 (or higher) for 10G
Compact Size, Shielded RJ45 Jacks
I.T.E. Power Supply, UL Listed

Details
Product Code	TP-POE++10G
AC Input Voltage	100-240VAC 50/60Hz
Output PoE Voltage	56VDC +/-2V, 802.3at PoE++, 4 Pair: Mode A (Pins 1,2+ 3,6-) and Mode B (Pins 4,5+ 7,8-)
Maximum Load	1A (56W) Max
Protections	Short Circuit, Overcurrent, Surge/ESD (4kV)
Efficiency	84% Minimum
Ripple and Noise	200mV p-p
Data Rate	10/100/1000/10000Mbps (10Gb)
No Load Consumption	1W Max
Operating Temperature	-20 to +50°C
Storage Temperature	-30 to +80°C
Operating Humidity	5% to 90% non condensing
Size (L x W x H)	5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm)
Weight	8.1oz (230g)
MTBF	100,000 Hrs
Certifications	CE, FCC
Connectors	RJ45 Shielded Jacks
Ethernet Cable Compatibility	CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m
