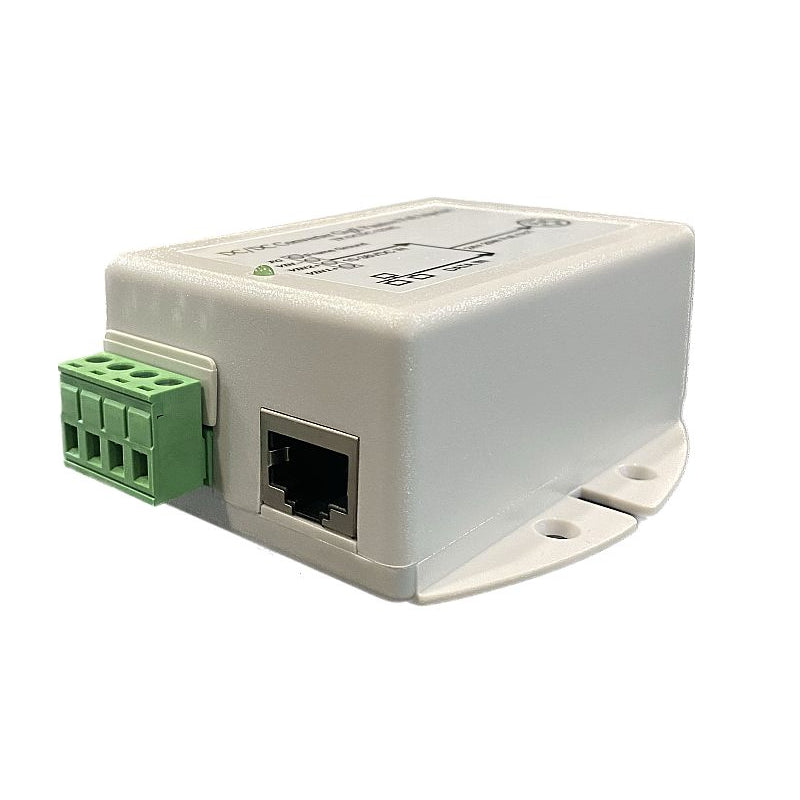

Name: Tycon Power Systems TP-DCDC-1248G 9-36V DC In, 48VDC Out 24W DC to DC Gigabit Converter
Brand: Tycon Power
SKU: TP-DCDC-1248G
Price: 128.80 NZD
Availability: InStock

Tycon Power Systems TP-DCDC-1248G 9-36V DC In, 48VDC Out 24W DC to DC Gigabit Converter

TP-DCDC-1248G

$128.80

Tax included.

In stock, ready to be shipped

Select quantity

Description

Tycon Power Systems TP-DCDC-1248G 9-36V DC In, 48VDC Out 24W DC to DC Gigabit Converter

Tycon Power Systems TP-DCDC-1248G 9-36V DC In, 48VDC Out 20W DC to DC Gigabit Converter. The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.

They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.

Features

Input Voltage 12VDC or 24VDC (Range 9-36VDC)
Passive PoE Output, 48VDC
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 24W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size – Maximize Available Space
I.T.E. Power Supply, UL Listed

Details
Manufacturer's Product Code	TP-DCDC-1248G
DC Input Voltage	9VDC – 36VDC
DC Input Connector	Removeable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage (+/-2.5%)	48V (Passive)
Data in & Data/POE Output Connector	RJ45 (Shielded)
Output Current (max)	0.5A
Output Power (max)	24W
Self Consumption Power	1W
Efficiency (min)	75%
Line Regulation	1%
Load Regulation	5%
Ripple	1%
Noise	1%
EMC Standards	FCC Part 15 Sub B Class A, CE 55032, 55035
Safety Standards	EN/IEC 60950
Operating Temperature	-30 to +60°C (-22 to +140°F)
Operating Humidity (RH)	5% - 90%
Storage Temperature	-40 to +80°C (-40 to +176°F)
MTBF (Mean Time Between Failure)	166,000 Hours
Dimensions	(LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
Weight	134g (4.7oz)

support

Details
Included	1 x DCDC PoE Injector, 1 x DC Input connector block

Warranty

3 Years

Brand

Tycon Power
