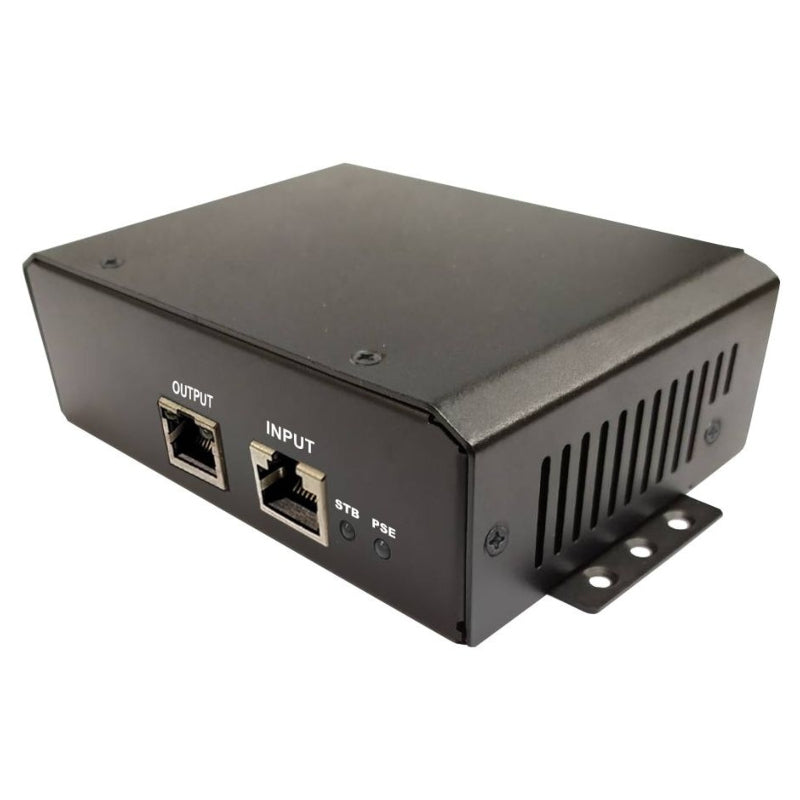

Name: Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter
Brand: Tycon Power
SKU: TP-DC-1256GD-VHP
Price: 529.00 NZD
Availability: InStock

Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter

TP-DC-1256GD-VHP

$529.00

Tax included.

6 items available

Select quantity

Description

Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter

Tycon Power Systems TP-DC-1256GD-VHP 10-60VDC IN 56VDC Out 70W PoE Inserter

The 5 Gigabit-compatible TP-DC-1256GD-VHP is a high-power DC-to-DC converter and PoE inserter, designed for Ubiquiti airFiber™ systems, Axis High Power PoE PTZ cameras, and other high-power PoE devices. They deliver 56VDC PoE over all 8 Ethernet wires (4-pair).

With a wide 10–60VDC input range, they suit battery-powered applications and work in both negative and positive ground systems. Dual DC inputs allow primary and backup power connections. Built-in protections include low voltage, surge, short circuit, and overload. Encased in a metal housing, they come with a DIN rail mounting kit.

Features

Wide 10–60VDC input with dual DC inputs
56VDC High PoE (4-pair) output, up to 70W power
5 Gigabit data throughput for high-speed performance
Built-in protections: low voltage disconnect, short circuit, overcurrent, and over/under-voltage
Industrial-grade design with a metal housing, DIN rail mount, and operation up to 70°C

Details
Product Code	TP-DC-1256GD-VHP
Input Voltage	+/- 10VDC to 60VDC
DC Input Connector	Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max)
POE Specification	IEEE 802.3at (4 Pair) Dual Detect 3645V+, 1278V-
Output Voltage (+/-2.5%)	56VDC
Data in & Data/POE Output Connector	RJ45 (Shielded)
Data Rate	Up to 5 Gigabit
Output Current (max)	1.25A Total
Output Power (max)	70W Total
Self-Consumption Power	2W
Low Voltage Protection	~8-9VDC Unit will power down to conserve battery
Other protections	Overcurrent (110% of rated), Short Circuit, Reverse Polarity, Surge Protection
Efficiency	85% Min (10VDC to 60VDC Input) (Full Load)
Line Regulation, Ripple, Noise	1%
Load Regulation	5%
EMC Standards	EN55032/55035
Safety Standards	EN62368-1
Operating Temperature	-40 to +70°C (-40 to +158°F)
Operating Humidity (RH)	5% - 90%
MTBF (Mean Time Between Failure)	96,022 Hours
Storage Temperature	-40 to +85°C (-40 to +185°F)
Dimensions (LxWxH)	86 x 139 x 40mm (3.4 x 5.5 x 1.57”)
Weight	550g (19.4oz)

support

Details
Included	Din Rail Adapters

Warranty

1 Year

Brand

Tycon Power

Restock ETA (if applicable)
