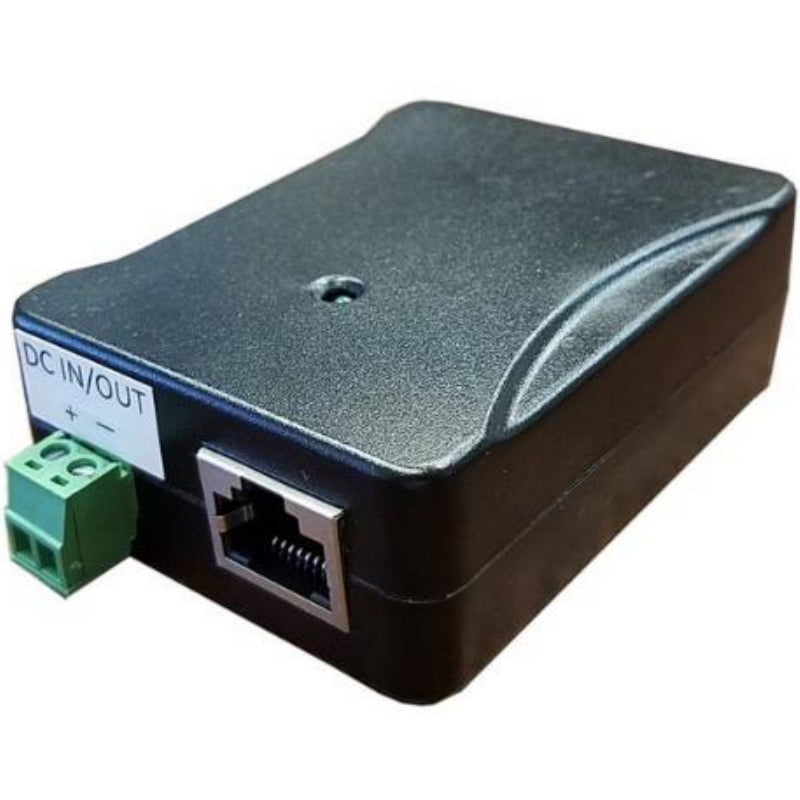

Name: Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector
Brand: Tycon Power
SKU: POE-INJ-1000-WTs
Price: 37.95 NZD
Availability: InStock

Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector

POE-INJ-1000-WTs

$37.95

Tax included.

In stock, ready to be shipped

Select quantity

Description

Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector

Tycon Power Systems POE-INJ-1000-WTs Gigabit 8 Wire Passive PoE Injector. The POE-INJ-1000-WTs are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m

Features

High Power Shielded Design (uses all 4 pairs)
10/100/1000Mb Compatible
Removeable Wire Terminal Connector
5VDC to 58VDC Power over Ethernet
Power On LED indicator
Security Applications
HD PTZ Cameras

Details
Product Code	POE-INJ-1000-WTs
DC Input Voltage Range	5V to 58VDC
Data Speeds	10/100/1000Mb
Maximum POE Current	2.25A, 130W Max
DC Connector	Removeable Wire Terminal Connector – Maximum Wire Size 14AWG
RJ45 PoE Pinout	1,2,3,6 (V+) 4,5,7,8 (V-)
Operating Temperature	-40°F to 185°F (-40°C to +85°C)
Operating Humidity Size	0 to 99% RH
Size	2.8 x 2.1 x 0.95” (71x53x24mm)
Weight	2.3oz (65g)

support

Details
Included	1 x Passive PoE injector with Wire Terminal

Warranty

3 Years

Brand

Tycon Power

Restock ETA (if applicable)

Product Details

Specifications

Tycon Power
HeadingTycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector

Description

Tycon Power Systems POE-INJ-1000-WTs High Power Gigabit 8 Wire Passive PoE Injector

Features

High Power Shielded Design (uses all 4 pairs)
10/100/1000Mb Compatible
Removeable Wire Terminal Connector
5VDC to 58VDC Power over Ethernet
Power On LED indicator
Security Applications
HD PTZ Cameras

Details
Product Code	POE-INJ-1000-WTs
DC Input Voltage Range	5V to 58VDC
Data Speeds	10/100/1000Mb
Maximum POE Current	2.25A, 130W Max
DC Connector	Removeable Wire Terminal Connector – Maximum Wire Size 14AWG
RJ45 PoE Pinout	1,2,3,6 (V+) 4,5,7,8 (V-)
Operating Temperature	-40°F to 185°F (-40°C to +85°C)
Operating Humidity Size	0 to 99% RH
Size	2.8 x 2.1 x 0.95” (71x53x24mm)
Weight	2.3oz (65g)
