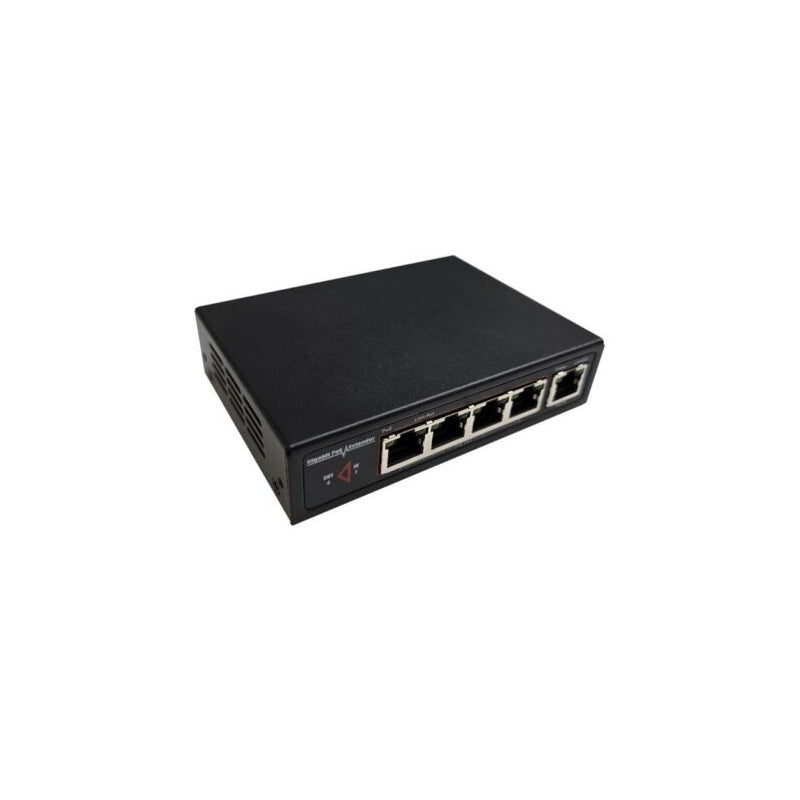

Name: Tycon Power Systems POE-EXT-GDx4-AT Indoor Gigabit 4 Port 802.3at PoE Extender
Brand: Tycon Power
SKU: POE-EXT-GDx4-AT
Price: 152.95 NZD
Availability: InStock

Tycon Power Systems POE-EXT-GDx4-AT Indoor Gigabit 4 Port 802.3at PoE Extender

POE-EXT-GDx4-AT

$152.95

Tax included.

12 items available

Select quantity

Description

Tycon Power Systems POE-EXT-GDx4-AT Indoor Gigabit 4 Port 802.3at PoE Extender

The Tycon Power Systems POE-EXT-GDx4-AT is a durable, high-power Gigabit Ethernet PoE extender that lets you stretch Ethernet connections beyond the usual 100-meter limit. You can link multiple units to extend Ethernet and PoE up to 300 meters using CAT5 or CAT6 cables. These units are powered by PoE, so no extra power source is needed. The input is compatible with 802.3bt 60W or 90W PoE injectors and the output provides four 802.3at 25W PoE Ports.

Built for indoor use or outdoor use inside a weatherproof enclosure, the units have tough, powder-coated metal enclosures. They operate reliably in temperatures from -20°C to +60°C.

Note: Input power must be at least 10W higher than total load across all 4 output ports

Features

802.3bt 90W IN, 4 802.3at 25W OUT
10/100/1000Mb Compatible
Easy Plug and Play Operation
Extends PoE / Ethernet an additional 100m
Auto Link Speed, Duplex and Crossover
Wall Mount Brackets included

Details
Product Code	POE-EXT-GDx4-AT
PoE Input	802.3bt or 54V 4 Pair Passive, 90W
PoE Input Pinout	3,6,4,5(+) 1,2,7,8(-)
PoE Output	802.3af or 802.3at Class 4
PoE Output Pinout	1,2(+) 3,6(-) Up to 25W
Total PoE Output Power	72W Max with 90W input
Data Speeds	10/100/1000Mb
Self Consumption Power	2.0W Typ
Operating Temperature	-4°F to 140°F (-20°C to +60°C)
Operating Humidity	0 to 90% RH Non-Condensing
Size	4.7 x 3.3 x 1.1” (119x85x28mm)
Weight	9.9oz (280g)

support

Details
Mounting Hardware	Wall Mount kit included
Power Supply	Sold Separately

Warranty

3 Years

Brand

Tycon Power
