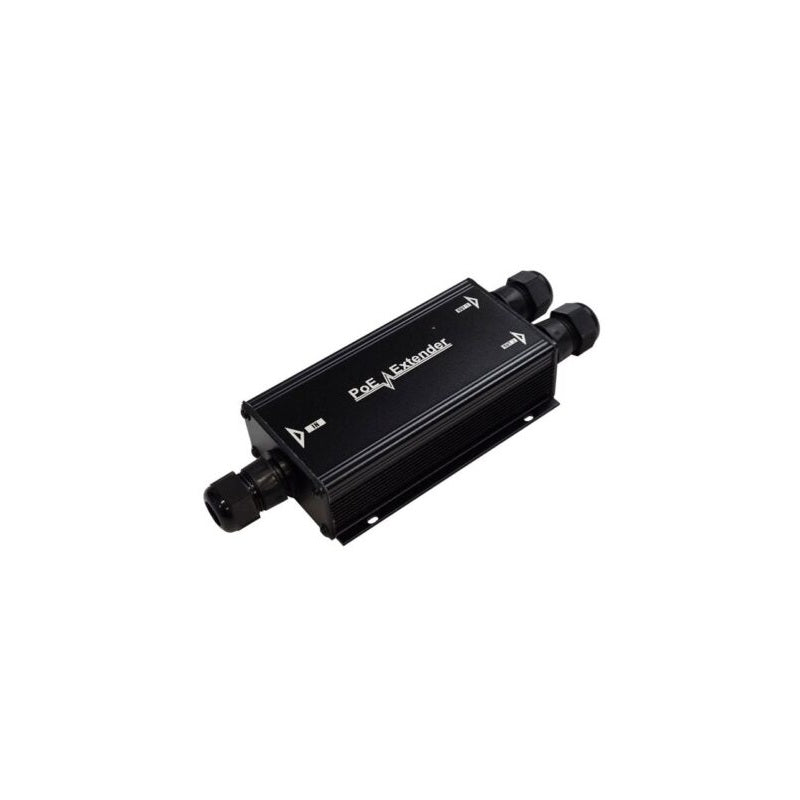

Name: Tycon Power Systems POE-EXT-GDx2-AT Outdoor Gigabit 2 Channel 802.3at PoE Extender
Brand: Tycon Power
SKU: POE-EXT-GDx2-AT
Price: 197.80 NZD
Availability: InStock

Tycon Power Systems POE-EXT-GDx2-AT Outdoor Gigabit 2 Channel 802.3at PoE Extender

POE-EXT-GDx2-AT

$197.80

Tax included.

8 items available

Select quantity

Description

Tycon Power Systems POE-EXT-GDx2-AT Outdoor Gigabit 2 Channel 802.3at PoE Extender

The Tycon Power Systems POE-EXT-GDx2-AT is a durable, high-power Gigabit Ethernet PoE extender that lets you stretch Ethernet connections beyond the usual 100-meter limit. You can link multiple units to extend Ethernet and PoE up to 300 meters using CAT5 or CAT6 cables. These units are powered by PoE, so no extra power source is needed. The input is compatible with 802.3bt 60W or 90W PoE injectors and the output provides two 802.3at 25W PoE Ports.

Built for outdoor use, the units have tough, powder-coated aluminum enclosures with an IP66 weatherproof rating. They operate reliably in temperatures from -25°C to +55°C.

Note: If output power needs are less than 20W for both ports combined, the extender can be powered by an 802.3at source.

Features

802.3bt 60W IN, Two 802.3at 25W OUT
10/100/1000Mb Compatible
Weatherproof – Outdoor rated IP66
Easy Plug and Play Operation
Extends PoE an additional 100m
Auto Link Speed, Duplex and Crossover

Details
Product Code	POE-EXT-GDx2-AT
PoE Input	802.3bt or 54V Passive 60W
PoE Input Pinout	3,6,4,5(+) 1,2,7,8(-)
PoE Output	802.3af or 802.3at Class 4
PoE Output Pinout	1,2(+) 3,6(-) Up to 25W
Data Speeds	10/100/1000Mb
Weatherproof Rating	IP66
Self Consumption Power	2.0W Typ
Operating Temperature	-13°F to 131°F (-25°C to +55°C)
Operating Humidity	0 to 100% RH
Size	9 x 3.5 x 1.6” (230x90x40mm)
Weight	10.6oz (300g)

support

Details
Included	(1) POE-EXT-GDx2-AT

Warranty

3 Years

Brand

Tycon Power

Restock ETA (if applicable)

Product Details

Specifications

Tycon Power
HeadingTycon Power Systems POE-EXT-GDx2-AT Outdoor Gigabit 2 Channel 802.3at PoE Extender

Description

Tycon Power Systems POE-EXT-GDx2-AT Outdoor Gigabit 2 Channel 802.3at PoE Extender

Features

802.3bt 60W IN, Two 802.3at 25W OUT
10/100/1000Mb Compatible
Weatherproof – Outdoor rated IP66
Easy Plug and Play Operation
Extends PoE an additional 100m
Auto Link Speed, Duplex and Crossover

Details
Product Code	POE-EXT-GDx2-AT
PoE Input	802.3bt or 54V Passive 60W
PoE Input Pinout	3,6,4,5(+) 1,2,7,8(-)
PoE Output	802.3af or 802.3at Class 4
PoE Output Pinout	1,2(+) 3,6(-) Up to 25W
Data Speeds	10/100/1000Mb
Weatherproof Rating	IP66
Self Consumption Power	2.0W Typ
Operating Temperature	-13°F to 131°F (-25°C to +55°C)
Operating Humidity	0 to 100% RH
Size	9 x 3.5 x 1.6” (230x90x40mm)
Weight	10.6oz (300g)
