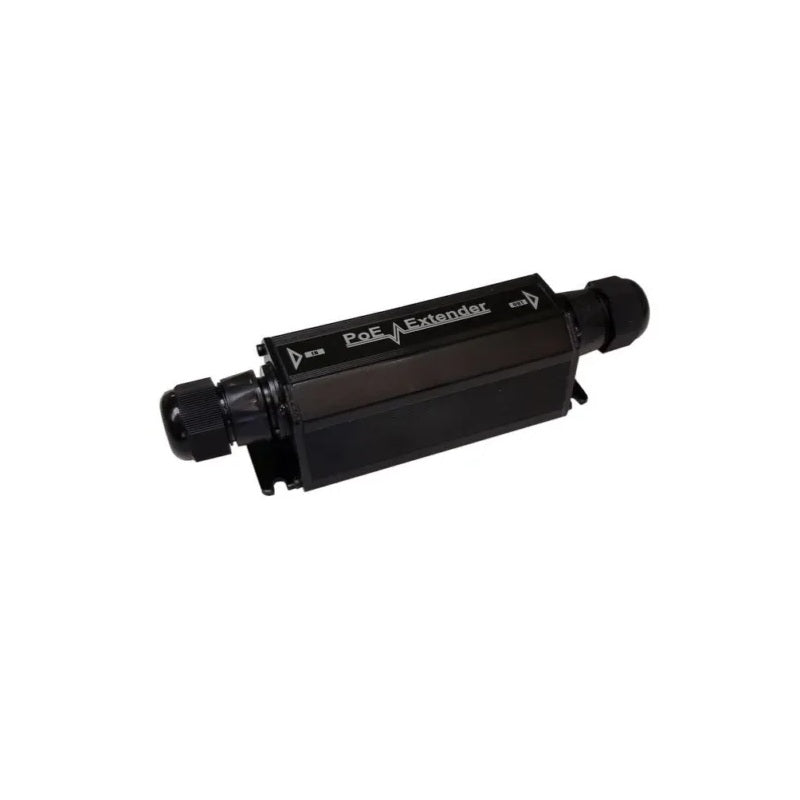

Name: Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender
Brand: Tycon Power
SKU: POE-EXT-GD-HP
Price: 251.85 NZD
Availability: InStock

Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender

POE-EXT-GD-HP

$251.85

Tax included.

8 items available

Select quantity

Description

Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender

Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender.

The Tycon Power Systems POE-EXT-GD-HP is a high quality, high power, shielded Gigabit Ethernet and PoE extender to be able to extend Ethernet beyond the standard 100m limit. By using multiple units, Ethernet and PoE can be extended up to 300m over CAT5/CAT6 cables. The units are powered by PoE so no additional power source is required. Units can accept Mode A (Pins 1,2,3,6) or Mode B (Pins 4,5,7,8) PoE: 802.3af, 802.3at or 48V Passive PoE.

The rugged outdoor weatherproof enclosures are powder coated aluminum and are rated to IP66. The units meet outdoor temperature ratings of -25C to +55C.

Perfect for powered Wireless Equipment, IP Telephones, Security Applications, Sensor Equipment or PoE Lighting over long distances.

Features

802.3af / 802.3at Compatible
10/100/1000Mb Compatible
Weatherproof – Outdoor rated IP66
Easy Plug and Play Operation
Extends PoE an additional 100m
Auto Link Speed, Duplex and Crossover

Details
Product Code	POE-EXT-GD-HP
PoE Input	802.3af / at / 44 to 57V Passive
PoE Input	Pinout 1,2(-) 3,6(+) or 7,8(-) 4,5(+)
PoE Output	802.3af or 802.3at Class 4
PoE Output	Pinout 1,2(+) 3,6(-) Up to 25W
Data Speeds	10/100/1000Mb
Self Consumption Power	2.0W Typ
Operating Temperature	-25°C to +55°C
Operating Humidity	0 to 100% RH
Size	185x45x45mm
Weight	240g
