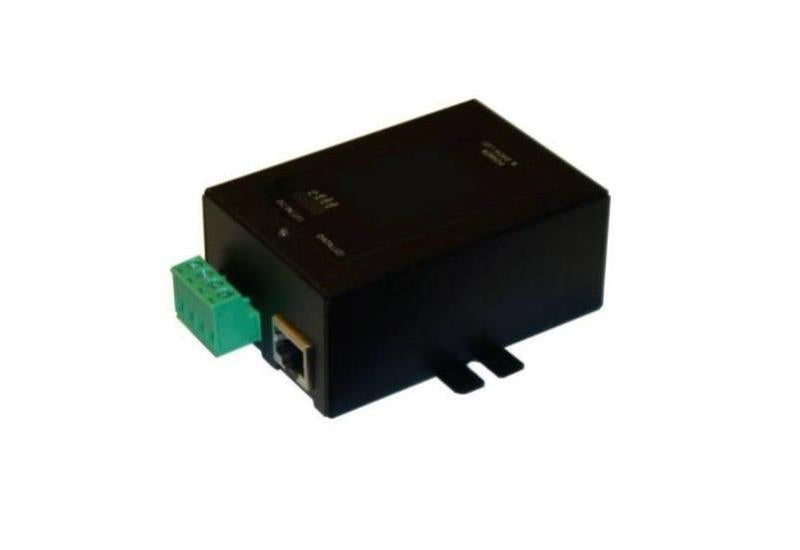

Name: Tycon Power Systems 9-36VDC In, 48VDC 802.3af 17W Out Gigabit Ethernet DC to DC Converter
Brand: Tycon
SKU: TP-DCDC-1248GD-M
Price: 221.95 NZD
Availability: InStock

Tycon Power Systems 9-36VDC In, 48VDC 802.3af 17W Out Gigabit Ethernet DC to DC Converter

TP-DCDC-1248GD-M

$221.95

Tax included.

16 items available

Select quantity

Description

The Tycon Power TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload.

Features

Industrial Grade Metal Housing
Input Voltage 12VDC or 24VDC or 48VDC
IEEE 802.3af/at compliant POE output
Dual Inputs for connecting 2 power sources
Integrated 10/100/1000MB POE Inserter
Low self consumption power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact size – Maximize Available Space
Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems

Manufacturer's Product Code	TP-DCDC-1248GD-M
DC Input Voltage	9VDC – 36VDC
DC Input Connector	Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage	48V (802.3af)
Data in & Data/POE Output Connector	RJ45 (Shielded)
Output Current (max)	0.35A
Output Power (max)	17W
Self Consumption Power	1W
Dimensions (LxWxH)	85 x 76 x 36mm
