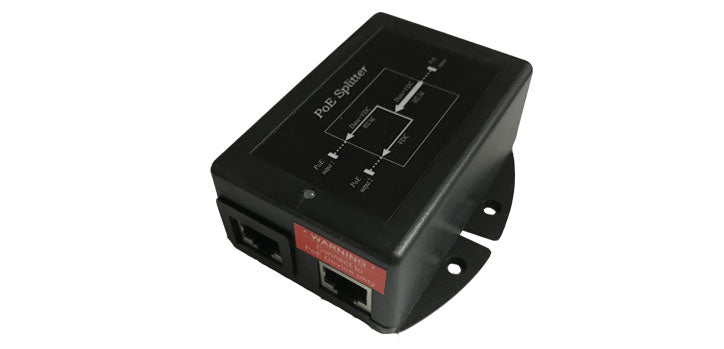

Name: Tycon Power Gigabit Ethernet 802.3at POE Into Dual 802.3af and Passive POE Out Splitter
Brand: Tycon Power
SKU: POE-SPLT-48G-VUB
Price: 208.15 NZD
Availability: InStock

Tycon Power Gigabit Ethernet 802.3at POE Into Dual 802.3af and Passive POE Out Splitter

POE-SPLT-48G-VUB

$208.15

Tax included.

5 items available

Select quantity

Description

Tycon Power Gigabit Ethernet 802.3at POE Into Dual 802.3af and Passive POE Out Splitter

Tycon Power Gigabit Ethernet splitter 802.3at POE Into Dual 802.3af and Passive POE Out. The POE-SPLT-48G-VUB is an active splitter which accepts an 802.3at Mode A/B or passive PoE (2 or 4 pair) input and provides two PoE outputs. Output 1 is an 802.3af Mode B PoE output with Data and PoE. Output 2 is a 48V Passive PoE Mode B output with PoE only, no data. The splitter is designed to supply power and data to one device and power only to the second device. It is Gigabit compatible providing speeds to 1000MB. There are various protections for short circuit, overload and low voltage disconnect.

Features

802.3at PoE input, 802.3af and Passive PoE outputs
Gigabit Compatible
Extended Temperature Range: -40 to +70C
Short Circuit and Over Current Protection

Details
Manufacturer's Product Code	POE-SPLT-48G-VUB
PoE Input	802.3at (Mode A or Mode B) or Passive PoE (2 or 4 pair)
Input voltage	40-60VDC (56V Typical)
PoE Output 1	802.3af PoE (Mode B) (Data & PoE)
PoE Output 2	Passive PoE (Mode B) (PoE Only)
Output Power	16W per port, 32W Max
Output Voltage	Vin – 1 Volt
Load Regulation	5%
Line Regulation	1%
Low Voltage Disconnect	30V
Ethernet Speed	10/100/1000MB (Gigabit Compatible)
LED	GREEN = Output 1 802.3af Detected, RED = No Valid 802.3af client detected
EMC Standards	FCC Class B NE55022 Class B
Protections (auto-recover)	Output Short Circuit, Overload, Input UnderVoltage (30VDC)
Operating Temperature	-40 to +70°C (-40 to +158°F)
Operating Humidity (RH)	5% - 90% non condensing
Storage Temperature	-40 to +85°C (-40 to +185°F)
Dimensions (LxWxH)	85 x 78 x 36mm
Weight	113g (4oz)
