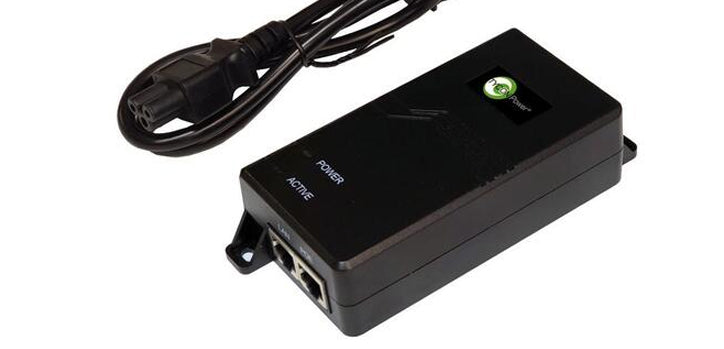

Name: Tycon Power 10Gbps Ethernet PoE Injector 53V 30W 802.3at PoE+
Brand: Tycon Power
SKU: TP-POE-PL-10G
Price: 102.35 NZD
Availability: InStock

Tycon Power 10Gbps Ethernet PoE Injector 53V 30W 802.3at PoE+

TP-POE-PL-10G

$102.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

Tycon Power 10Gbps Ethernet PoE Injector 53V 30W 802.3at PoE+ TP-POE+10G

Tycon Power 10Gbps Ethernet PoE Injector 53V 30W 802.3at PoE+. Tycon Power Systems TP-POE+10G 53V 30W 802.3at PoE+ 10Gbps Ethernet Injector. The TP-POE+10G is a compact 10/100/1000/10000MB (10G) desktop 802.3at PoE+ inserter with 120/240VAC auto-ranging input. The reliable UL Listed inserter has an output that is Mode A (1,2+ 3,6-) 802.3at PoE at up to 31.8W.

Features

10/100/1000/10000Mb Data Rate
CAT6 (or higher) for 10G
Compact Size, Shielded RJ45 Jacks
I.T.E. Power Supply, UL Listed

Details
Product Code	TP-POE+10G
AC Input Voltage	100-240VAC 50/60Hz
Output PoE Voltage	53VDC +/-2V, 802.3af/at PoE, Mode A (Pins 1,2+ 3,6-)
Maximum Load	0.6A (31.8W) Max
Protections	Short Circuit, Overcurrent, Surge/ESD (8kV)
Efficiency	78% Minimum
Ripple and Noise	200mV p-p max
Data Rate	10/100/1000/10000Mbps (10Gb)
No Load Consumption	1W Max
Operating Temperature	-20 to +50°C
Storage Temperature	-30 to +80°C
Operating Humidity	10% to 90% non condensing
Size (L x W x H)	5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm)
Weight	7.4oz (210g)
MTBF	50,000 Hrs
Certifications	UL, CE, FCC
Connectors	RJ45 Shielded Jacks
Ethernet Cable Compatibility	CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m

support

Details
Warranty	Standard 12 Month RTB

Warranty

1 Year

Brand

Tycon Power

Restock ETA (if applicable)

Product Details

Specifications

Tycon Power
HeadingTycon Power 10Gbps Ethernet PoE Injector 53V 30W 802.3at PoE+

Description

Tycon Power 10Gbps Ethernet PoE Injector 53V 30W 802.3at PoE+ TP-POE+10G

Features

10/100/1000/10000Mb Data Rate
CAT6 (or higher) for 10G
Compact Size, Shielded RJ45 Jacks
I.T.E. Power Supply, UL Listed

Details
Product Code	TP-POE+10G
AC Input Voltage	100-240VAC 50/60Hz
Output PoE Voltage	53VDC +/-2V, 802.3af/at PoE, Mode A (Pins 1,2+ 3,6-)
Maximum Load	0.6A (31.8W) Max
Protections	Short Circuit, Overcurrent, Surge/ESD (8kV)
Efficiency	78% Minimum
Ripple and Noise	200mV p-p max
Data Rate	10/100/1000/10000Mbps (10Gb)
No Load Consumption	1W Max
Operating Temperature	-20 to +50°C
Storage Temperature	-30 to +80°C
Operating Humidity	10% to 90% non condensing
Size (L x W x H)	5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm)
Weight	7.4oz (210g)
MTBF	50,000 Hrs
Certifications	UL, CE, FCC
Connectors	RJ45 Shielded Jacks
Ethernet Cable Compatibility	CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m
