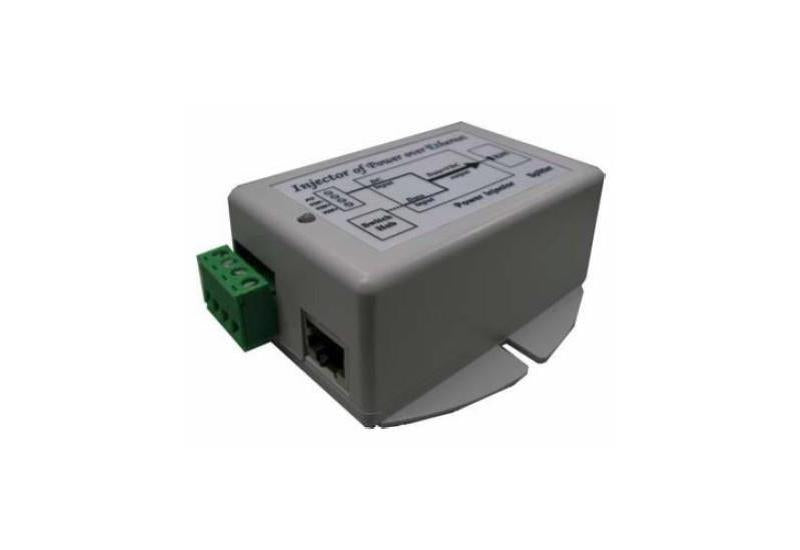

Name: Tycon 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter
Brand: Tycon Power
SKU: TP-DCDC-1218
Price: 17.25 NZD
Availability: InStock

Tycon 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter

TP-DCDC-1218

$17.25

Tax included.

18 items available

Select quantity

Description

Tycon Power Systems 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter (TP-DCDC-1218)

TP-DCDC-1218 DC to DC converter takes an input of 9-36VDC and convert to 18V DC Passive PoE regulated output. The TP-DCDC-1218 includes an integrated POE inserter to apply the DC voltage to the CAT5 cable on Pins 4,5 (V+) and Pins 7,8 (V-). They are perfect for running POE powered equipment from a 12V or 24V battery system. They have 2 isolated inputs to handle two power sources like a primary and backup source for uninterrupted failsafe operation.

Features

Great accessory for powering your MikroTik, EnGenius and Ubiquiti WiFi outdoor Long range wireless Access Points.

Details
Manufacturer's Product Code	TP-DCDC-1218
DC Input Voltage	9VDC – 36VDC
DC Input Connector	Removeable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage	18V (Passive)
Data in & Data/POE Output Connector	RJ45 (Shielded)
Output Current (max)	1.0A
Output Power (max)	18W
Self Consumption Power	1W
Dimensions (LxWxH)	85 x 76 x 36mm

support

Details
Warranty	Standard 12 Month RTB

Warranty

1 Year

Brand

Tycon Power

Restock ETA (if applicable)

Product Details

Specifications

Tycon Power
HeadingTycon 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter

Description

Tycon Power Systems 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter (TP-DCDC-1218)

Features

Great accessory for powering your MikroTik, EnGenius and Ubiquiti WiFi outdoor Long range wireless Access Points.

Details
Manufacturer's Product Code	TP-DCDC-1218
DC Input Voltage	9VDC – 36VDC
DC Input Connector	Removeable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage	18V (Passive)
Data in & Data/POE Output Connector	RJ45 (Shielded)
Output Current (max)	1.0A
Output Power (max)	18W
Self Consumption Power	1W
Dimensions (LxWxH)	85 x 76 x 36mm
