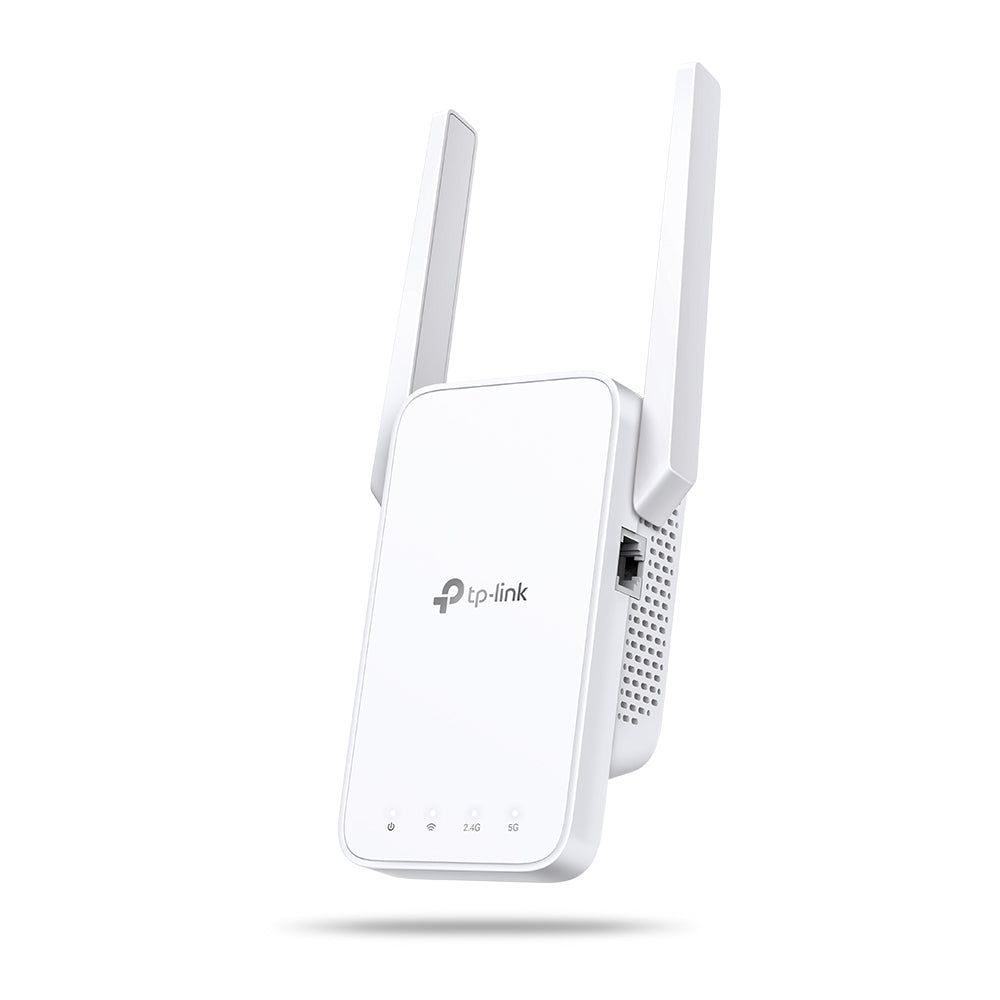

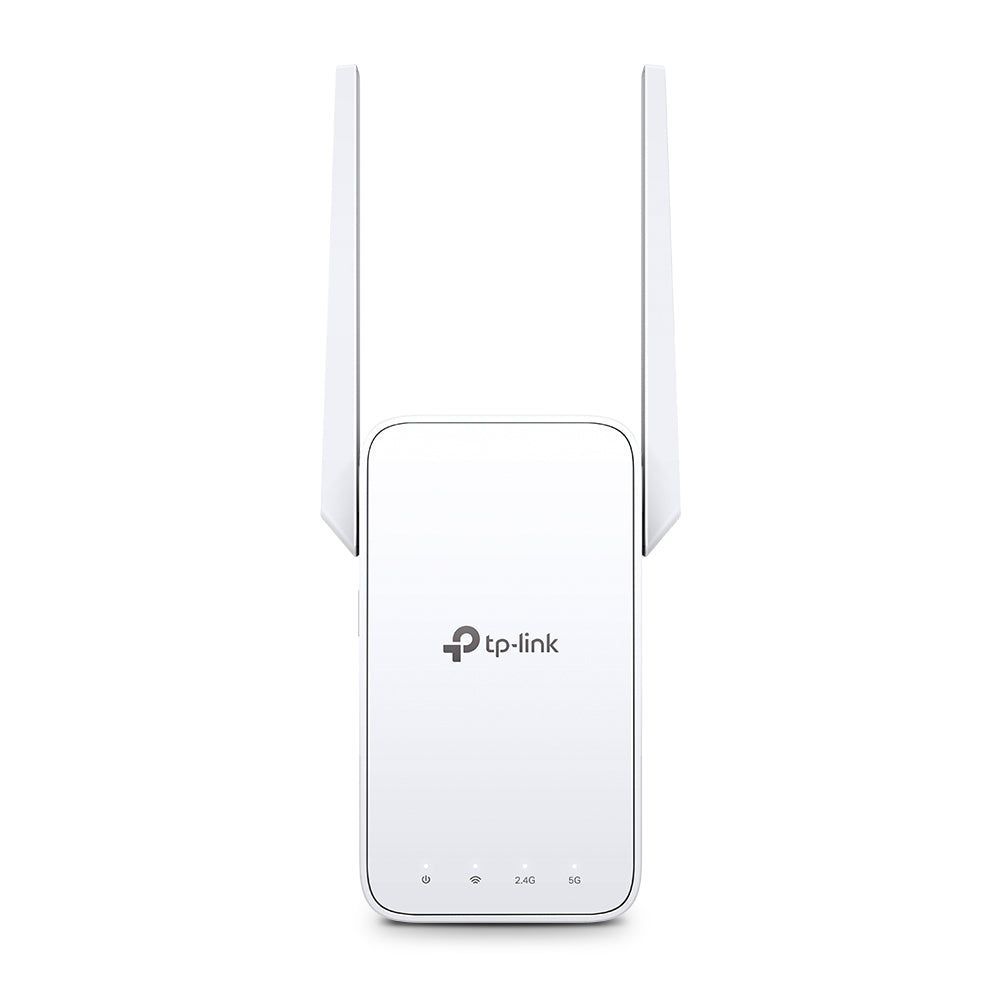

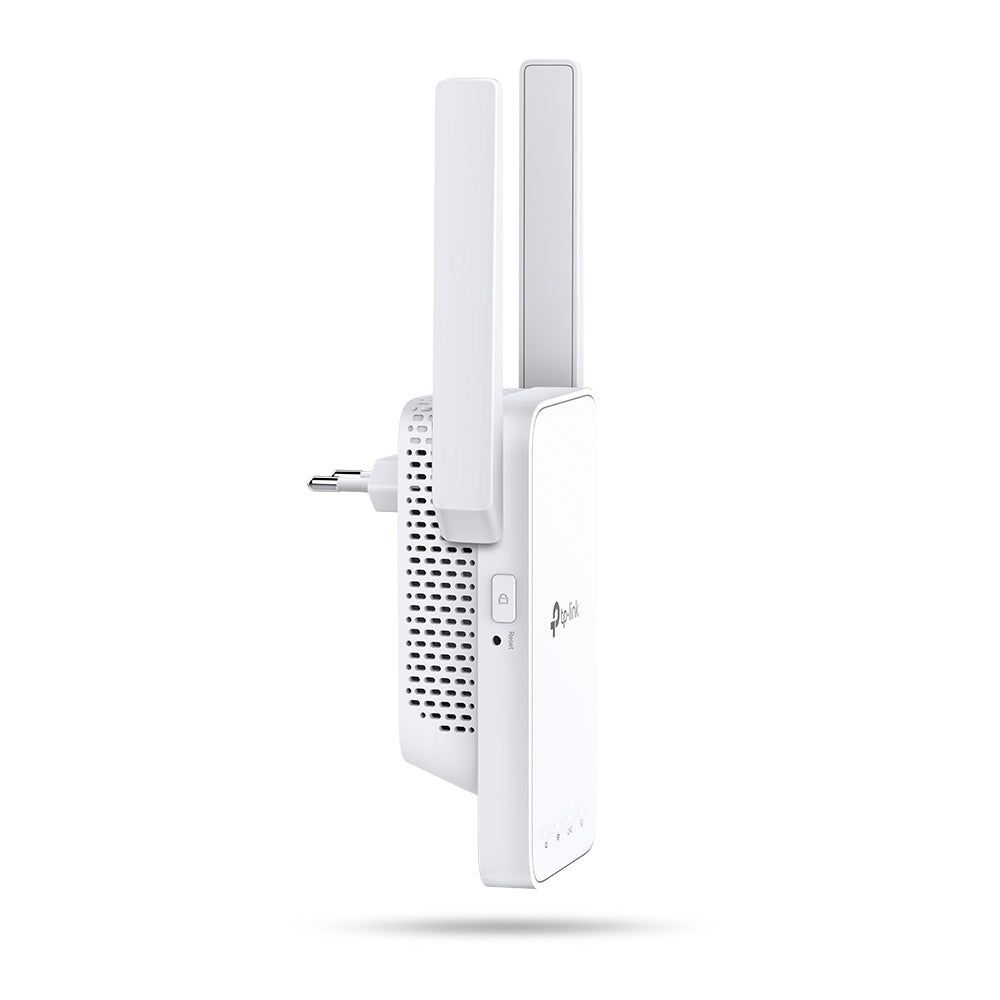

AC1200 Mesh Wi-Fi Range Extender

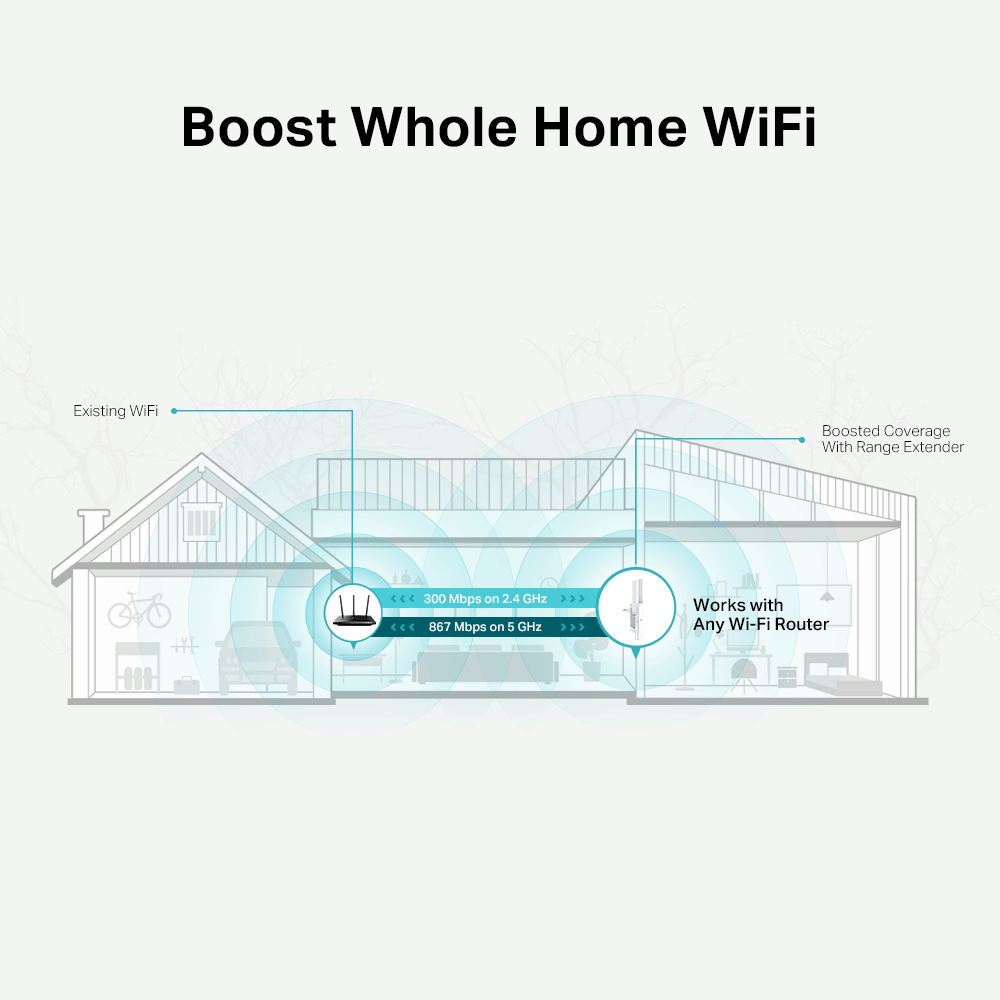

Eliminate weak signal areas with whole home WiFi coverage.
2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.^†
EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed.
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.
Works with any Wi-Fi router or wireless access point.*

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4GHz and 5GHz
Signal Rate	300Mbps at 2.4GHz, 867Mbps at 5GHz
Working Modes	Range Extender/Access Point
Reception Sensitivity	5 GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -77dBm 11ac HT20 MCS0: -94dBm 11ac HT20 MCS8: -71dBm 11ac HT40 MCS0: -92dBm 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm 11ac HT80 MCS9: -62dBm 2.4 GHz: 11g 54Mbps: -78dBm 11n HT20 MCS7: -76dBm 11n HT40 MCS7: -74dBm
Wireless Functions	Enable/Disable Wireless Radio DFS (the latest firmware and hardware version is required) Access Control LED Control Power Schedule Wi-Fi Coverage
Wireless Security	64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions
Transmission Power	2.4 GHz ≤20dBm, 5 GHz ≤30dBm

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP

OTHERS
Certification	CE, RoHS
Package Content	Wi-Fi Range Extender RE315 Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
